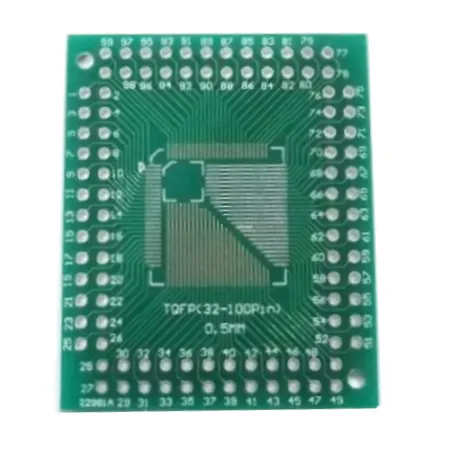

Adapter TQFP SMD Board Breakout 0.8mm/0.5mm (32-100) (Per Piece)

Adapter TQFP SMD Board Breakout 0.8mm/0.5mm (32-100) (Per Piece)

Electronic components are either mounted directly onto the surface of a printed circuit board (surface mount or SMT) or have legs that pass through holes drilled in the board (through hole or TH). A surface mount to through hole adapter board allows you to use surface mount components on through hole boards, making it ideal for prototyping and development work.

Package Includes

  • 1 x SMT to Through Hole Adapter Board
19.95 AED 19.95 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



What Are SMT to Through Hole Adapter Boards Used For

SMT to through hole adapter boards are mainly used during the prototyping stage of electronic projects, before mass production or assembly. They make it easier to test, debug, and modify circuits by allowing fine-pitch surface mount components to be used on breadboards or standard through hole PCBs.

Features

  • Versatile Prototyping Solution: Enables the use of SMT components on through hole boards.
  • Double-Sided Design: Supports different IC pin counts and pitches on each side.
  • Fine Pitch Support: Designed for small pitch TQFP ICs.
  • FR4 Material: Durable and reliable PCB material.
  • Standard DIP Spacing: 0.1 inch spacing for easy breadboard and PCB compatibility.

Types and Layout

  • Side 1: Fits 32 to 64 pin ICs with 0.8mm pitch.
  • Side 2: Fits 32 to 100 pin ICs with 0.5mm pitch.
  • IC Package: TQFP

Specifications

  • Supported Pitch: 0.8mm and 0.5mm
  • IC Pin Count: 32 to 100 pins
  • PCB Material: FR4
  • Board Type: Double-sided
  • Pin Spacing: 0.1 inch (DIP)

Usage Notes

  • 0.5mm pitch devices cannot be soldered using a standard soldering iron.
  • Use solder paste with a stencil and hot air gun or reflow oven for best results.

Applications

  • SMT IC prototyping
  • Breadboard testing
  • Circuit debugging and development
  • Educational and DIY electronics projects
