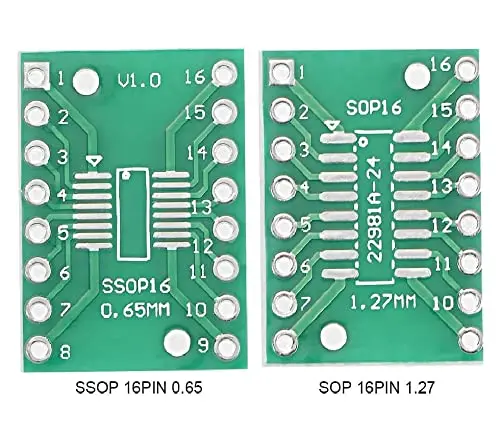

Adapter SMD DIP SOP16 SSOP16 TSSOP16 15.6x21mm Switch Plate Test Breakout Foot Distance 0.65mm 1.27mm PCB Board (Per Piece)

Adapter SMD DIP SOP16 SSOP16 TSSOP16 15.6x21mm Switch Plate Test Breakout Foot Distance 0.65mm 1.27mm PCB Board (Per Piece)

This adapter board allows you to use surface mount components on a through-hole PCB. It is especially useful during prototyping or debugging when you need to adapt components between SMT and TH formats. Whether you're working with fine-pitch ICs or other SMD devices, this board provides a convenient way to integrate them into your existing breadboard or through-hole workflow.

Package Includes:

  • 1 x Surface Mount (SMT) to Through Hole Adapter Board

SMD PCB Breakout
9.45 AED 9.45 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



What Is This Adapter Board Used For

The adapter board is commonly used during the prototyping and evaluation phase of electronic projects. It allows engineers, students, and hobbyists to convert fine-pitch SMT components into a DIP-style format, enabling easy integration with breadboards and through-hole circuit boards without committing to a final PCB design.

Features

  • SMT to Through-Hole Conversion: Allows surface-mount components to be used on through-hole PCBs.
  • Ideal for Prototyping: Perfect for testing, debugging, and development work.
  • Multiple Pin Pitch Support: Compatible with common SMT pin pitch standards.
  • Double-Sided Design: Provides flexible component placement options.
  • Modular Layout: Some versions include pre-scored break lines for customized use.

Specifications

  • Pin Pitch: 0.65mm / 1.27mm
  • Board Size: 17.5 × 20.5 mm
  • Board Thickness: 1.6 mm
  • Mounting Type: Double-sided

Applications

  • SMT to DIP signal conversion
  • Electronics prototyping and testing
  • Circuit modification and debugging
  • Pre-production development and evaluation
