Adapter Plate PCB For ESP8266 SMD Module

Adapter Plate PCB For ESP8266 SMD Module

The ESP8266 Adapter Plate is a practical breakout PCB designed to make ESP-07, ESP-08, ESP-12E, and ESP-12F ESP8266 SMD WiFi modules easy to use in prototyping and development projects. These ESP8266 modules feature a fine and unfriendly pin pitch, which can be difficult to solder and integrate directly into breadboards or standard PCBs. By using this adapter plate, the ESP8266 SMD module can be mounted and used just like a Wemos or NodeMCU-style board. Clearly labeled pinouts on the top layer simplify wiring, debugging, and programming, making it ideal for both beginners and advanced users. The adapter also includes a land pattern on the bottom layer for an optional 3.3V voltage regulator. By removing the onboard 0Ω jumper resistor (R1), the VCC pin can accept a higher input voltage (4.5V–9V), allowing flexible power options for different projects.

Package Includes

  • 1 x ESP8266 Adapter Plate PCB for ESP-07 / ESP-08 / ESP-12E / ESP-12F


SMD PCB Breakout
10.50 AED 10.50 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

  • Designed for ESP-07, ESP-08, ESP-12E, and ESP-12F ESP8266 SMD modules
  • Converts fine-pitch ESP8266 SMD modules to a breadboard-friendly format

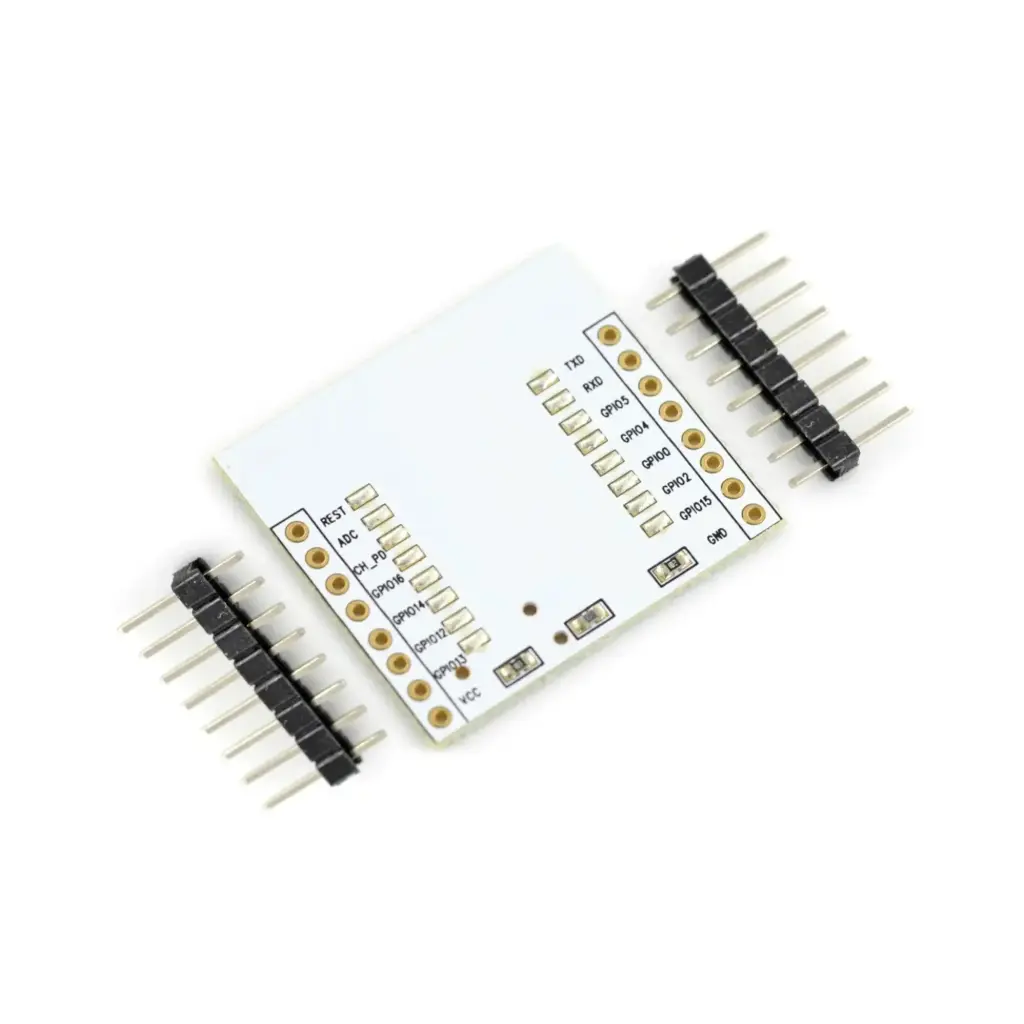

  • Clearly labeled pinouts on the top layer
  • Reserved land pattern for onboard 3.3V voltage regulator
  • Selectable power configuration via 0Ω jumper resistor (R1)
  • Includes onboard 10K pull-up resistor
  • Compatible with latest ESP-12F WiFi module
  • Ideal for prototyping, testing, and development

Specifications

  • Supported Modules: ESP-07, ESP-08, ESP-12E, ESP-12F
  • Mounting Type: SMD module to DIP-style adapter
  • Power Supply:
    • Default: 3.3V
    • Optional (with regulator): 4.5V – 9V input
  • Onboard Components: 10K pull-up resistor, 0Ω jumper resistor
  • Pin Spacing: 2.54mm (breadboard compatible)
  • PCB Type: Adapter Plate / Breakout Board

Applications

  • ESP8266 WiFi project prototyping
  • IoT development and testing
  • Breadboard-based experiments
  • Custom ESP8266-based PCB designs
  • Learning and educational electronics projects

What Is It Used For

The ESP8266 Adapter Plate is used to make ESP8266 SMD WiFi modules easier to work with during prototyping and development. ESP-07, ESP-08, ESP-12E, and ESP-12F modules have very fine pin spacing that is difficult to use directly on breadboards or standard development boards. This adapter converts those unfriendly SMD pin layouts into a more accessible format.

Main Uses

  • ESP8266 Prototyping: Allows ESP8266 SMD modules to be used like Wemos or NodeMCU-style boards.
  • Breadboard Compatibility: Converts fine-pitch SMD pins into standard 0.1-inch spacing for breadboards.
  • Easy Soldering: Clearly labeled pinouts simplify soldering and wiring.
  • Power Regulation Support: Includes a land pattern for a 3.3V voltage regulator for flexible power input.
  • Programming & Testing: Makes flashing firmware and testing ESP8266 modules much easier.

Why Use This Adapter

  • Eliminates the need to design a custom PCB for ESP8266 modules
  • Reduces wiring errors with clearly marked pins
  • Ideal for learning, experimenting, and rapid IoT development
  • Supports popular ESP8266 modules including ESP-07, ESP-08, ESP-12E, and ESP-12F
