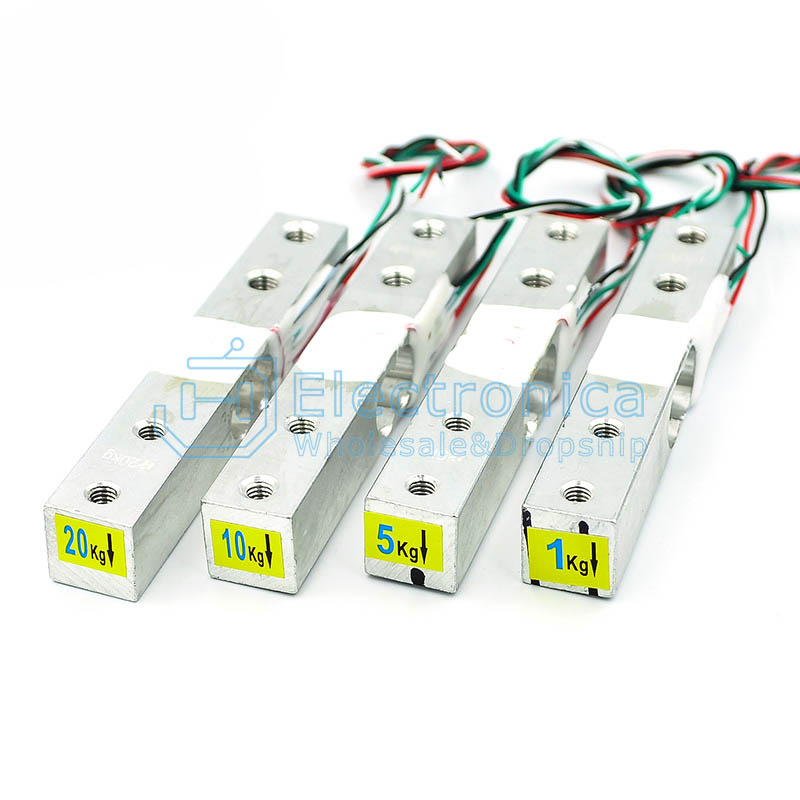

Weight Sensor Kit 1KG - Load Cell Amplifier HX711

Weight Sensor Kit 1KG - Load Cell Amplifier HX711

The 1KG Load Cell Weight Sensor Kit is designed for high-precision weight measurements. It includes a 1kg load cell and an HX711 ADC amplifier module. The load cell is a transducer that converts pressure or force into an electrical signal, while the HX711 amplifier accurately reads and amplifies the signal using a 24-bit ADC. Ideal for kitchen scales, luggage weighing devices, and various embedded or industrial applications.

Package Includes:

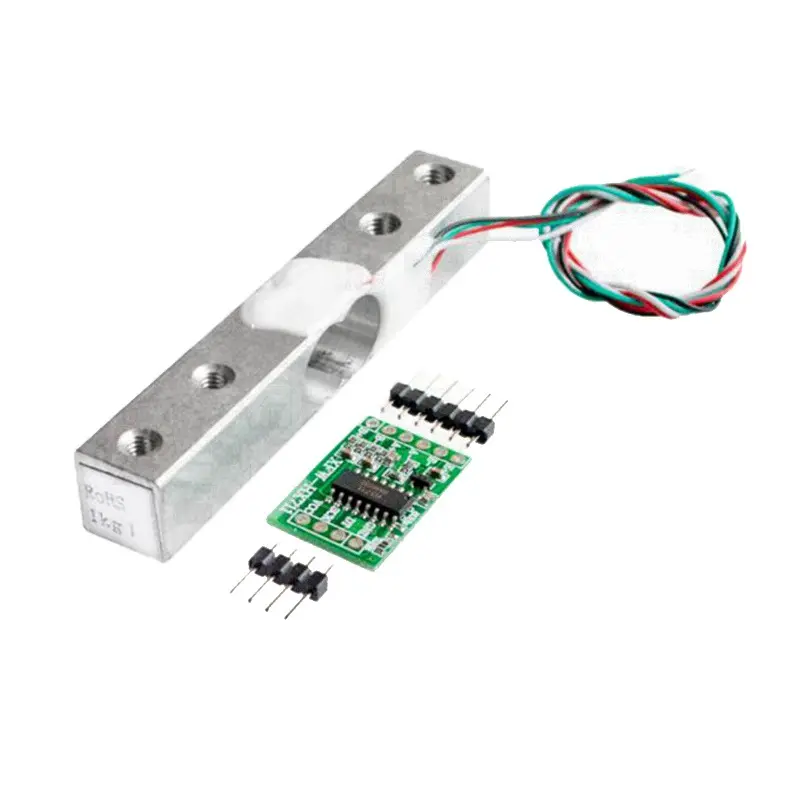

  • 1 x 1Kg Load Cell
  • 1 x HX711 Amplifier Module

35.00 AED 35.00 AED Tax Included
35.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Weight Sensor Kit
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share





Features:

  • High-Precision Measurement: Uses a 24-bit ADC for accurate weight readings.
  • Adjustable Gain: Programmable gain amplifier with gain options of 32, 64, and 128.
  • Dual Input Channels: Supports two analog differential input channels.
  • Bridge Voltage Support: Can be configured for use with Wheatstone bridges.
  • Low Noise: On-chip active low-noise PGA with selectable gain.
  • Digital Output: Simple serial interface for easy integration with microcontrollers.
  • Power Efficient: Internal regulator for ADC and load cell analog supply.
  • Supply Rejection: Handles both 50Hz and 60Hz power supply interference.

Load Cell with HX711 Amplifier Module

Specifications:

Load Cell:

  • Rated Load: 1Kg
  • Rated Output: 1.0 mV/V ± 0.15 mV/V
  • Zero Output: ± 0.1 mV/V
  • Creep: 0.03% F.S / 30 minutes
  • Recommended Operating Voltage: 3V – 12V DC
  • Max Operating Voltage: 15V DC
  • Input Impedance: 1115 ± 10% Ω
  • Output Impedance: 1000 ± 10% Ω

HX711 Amplifier Module:

  • Operating Voltage: 2.7V – 5V
  • Operating Current: <1.5mA
  • Sample Rate: 10Hz
  • Size: 16mm x 24mm
  • Channels: 2 differential inputs

Applications:

  • Kitchen weighing scales
  • Luggage and parcel scales
  • Industrial material weighing
  • Agriculture: weighing feed, livestock, etc.
  • Robotics: grippers with weight sensing
  • Medical devices: patient or infant weighing
  • Fitness equipment
  • Shipping and logistics systems

Pin Connections:

Load Cell:

Wire Color Connection
Red E+ (Excitation +)
Black E- (Excitation -)
Green A+ (Signal +)
White A- (Signal -)

HX711 Module:

HX711 Pinout Diagram



Sample Project:

Circuit Diagram:

HX711 Circuit Example

Library:

HX711 Arduino library by Bogde: GitHub - HX711 Library

How to install Arduino libraries: Arduino Library Guide

Example Code - Calibration:


#include "HX711.h"

#define LOADCELL_DOUT_PIN 3
#define LOADCELL_SCK_PIN 2

HX711 scale;
float calibration_factor = -7050;

void setup() {
  Serial.begin(9600);
  Serial.println("HX711 calibration sketch");
  Serial.println("Remove all weight from scale");
  Serial.println("After readings begin, place known weight on scale");
  Serial.println("Press + or a to increase calibration factor");
  Serial.println("Press - or z to decrease calibration factor");

  scale.begin(LOADCELL_DOUT_PIN, LOADCELL_SCK_PIN);
  scale.set_scale();
  scale.tare();

  long zero_factor = scale.read_average();
  Serial.print("Zero factor: ");
  Serial.println(zero_factor);
}

void loop() {
  scale.set_scale(calibration_factor);
  Serial.print("Reading: ");
  Serial.print(scale.get_units(), 1);
  Serial.print(" lbs");
  Serial.print(" calibration_factor: ");
  Serial.println(calibration_factor);

  if(Serial.available()) {
    char temp = Serial.read();
    if(temp == '+' || temp == 'a')
      calibration_factor += 10;
    else if(temp == '-' || temp == 'z')
      calibration_factor -= 10;
  }
}

References:
