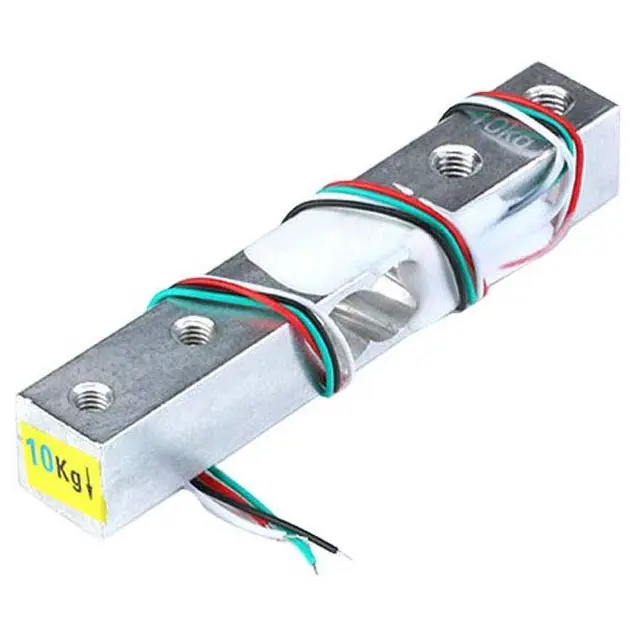

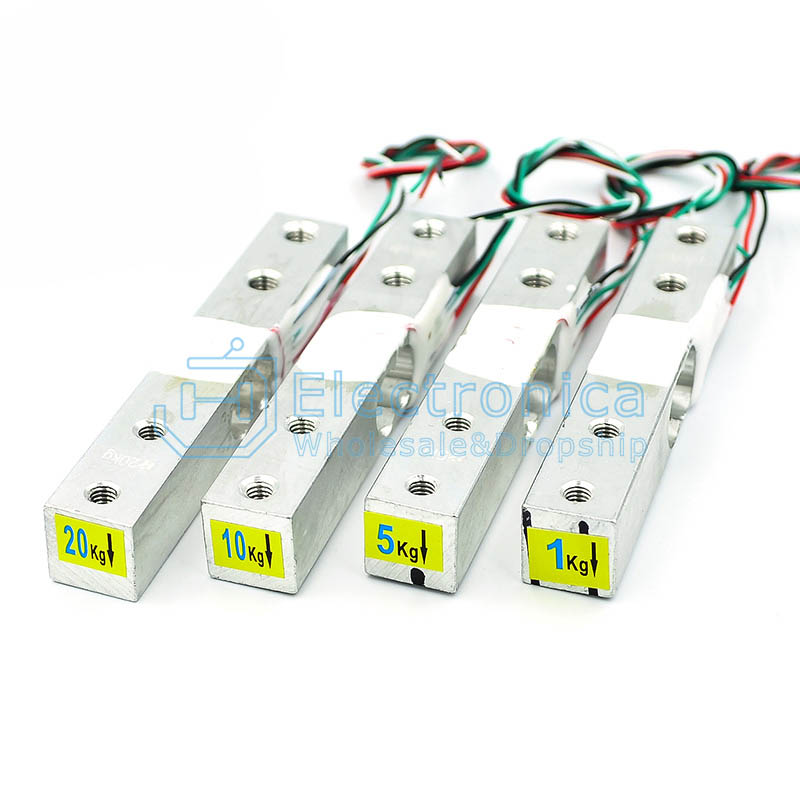

Weight Load Cell Strain Gauge Sensor 10KG
The 10KG Weight Load Cell Strain Gauge Sensor is a precision tool designed for accurate weight measurements across various applications. This strain gauge sensor converts mechanical force into reliable electrical signals, making it ideal for DIY scales, industrial systems, and research instrumentation. With its 10KG capacity, it ensures consistent and dependable readings in every use case.
Package Includes:
- 1 x Load Cell 10KG
Features:
- Straight bar design: Optimized to measure force in one direction.
- Aluminum alloy construction: Ensures durability and long service life.
- Strain gauge technology: Converts deformation into measurable electrical signals.
- Requires signal amplification: Due to the small signal output, amplification is needed for processing.
- Directional sensitivity: Outputs vary based on the direction of applied force.
Specifications:
- Capacity: 10kg
- Recommended Excitation Voltage: 5V DC
- Max Excitation Voltage: 10V DC
- Overall Precision: 0.02% F.S
- Input Resistance: 1066 ± 20 Ohm
- Output Resistance: 1000 ± 20 Ohm
- Insulation Resistance: 2000 Ohm
- Working Temperature: -20°C ~ +60°C
- Compensated Temperature Range: -10°C ~ +65°C
- Safety Overload: 120%
- Dimensions: 80 x 13 x 12 mm (L x W x T)
- Thread Hole: M4 screw
- Cable Length: 150 mm (6")
- Material: Aluminium Alloy
- Weight: 27g
Applications:
- DIY and industrial weighing scales (kitchen, bathroom, etc.)
- Material strength testing
- Robotics and industrial automation
- Force and torque measurement systems
- Automotive testing (brake/suspension systems)
Pin Connections:
| Wire Color | Description |
|---|---|
| Red | E+ |
| Green | O+ |
| Black | E- |
| White | O- |
