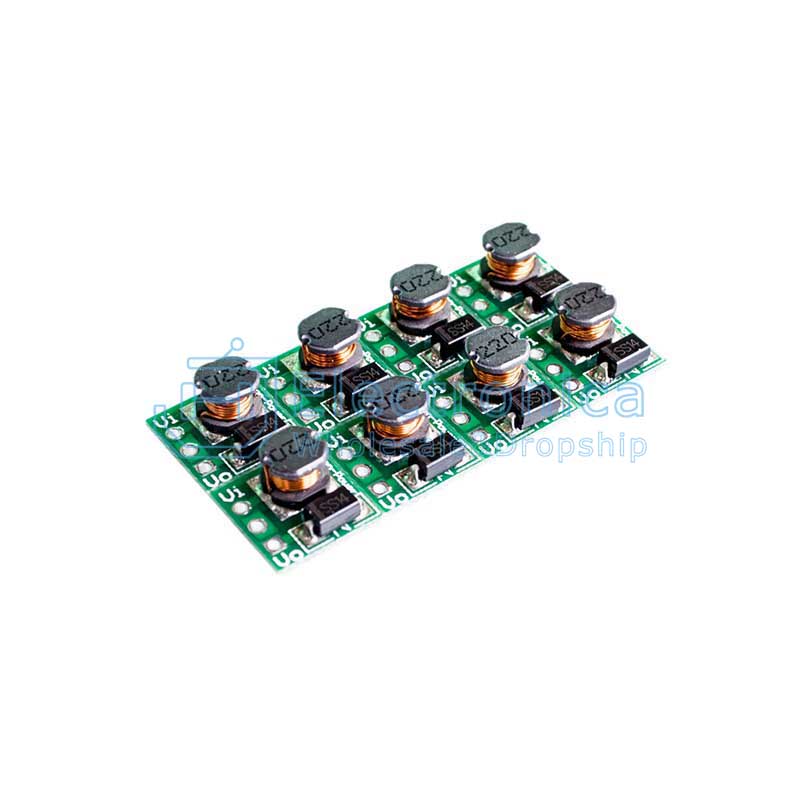

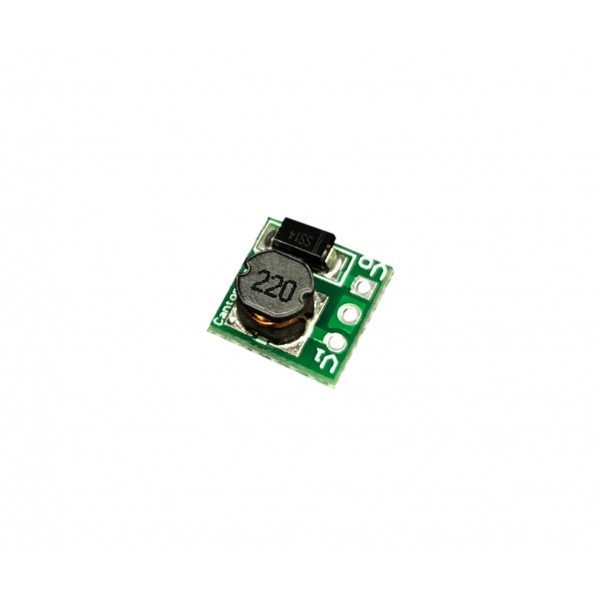

DC-DC Very Small Step-UP Boost Voltage 0.9-5V to DC 5V Converter Module (1piece) (Per Piece)

This compact DC-DC Boost Converter Module is ideal for battery-powered applications requiring a 5V regulated output from as low as 0.9V input. It’s breadboard-friendly and widely compatible with Arduino, Raspberry Pi, wireless modules, and more. With a working frequency of 150KHz and a typical efficiency of 85%, this module is both lightweight and power efficient.

Package Includes:

  • 1 x DC-DC Boost Converter Module (0.9V to 5V)

15.75 AED 15.75 AED Tax Included
15.75 AED Tax Included

Not Available For Sale

This combination does not exist.

Boost Converter

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Specifications:

  • Input Voltage: 0.9V ~ 5V
  • Output Voltage: 5V (fixed)
  • Maximum Output Current: 500mA
  • Working Frequency: 150KHz
  • Efficiency: Up to 85% typical
  • Start Voltage: 0.9V
  • Operating Temperature: -25°C ~ +85°C
  • Pin Pitch: 2.54mm (breadboard-friendly)
  • Module Size (Excluding Pins): 11mm x 10.5mm x 7.5mm
  • Weight: Approx. 1.2g

Typical Output Current Performance:

  • Input 1.0–1.5V → Output 5V @ 50–110mA
  • Input 1.5–2.0V → Output 5V @ 110–160mA
  • Input 2.0–3.0V → Output 5V @ 160–400mA
  • Input >3.0V → Output 5V @ 400–500mA

Applications:

  • Battery-powered devices
  • Wireless modules: NRF24L01, CC1101, CC2500
  • Development boards: Arduino UNO, Mega2560, STM32, FPGA/CPLD
  • Breadboard and prototyping projects
  • Raspberry Pi and Banana Pi
  • 5V LED lighting
  • Low-power motor drive
  • Audio and wireless communication equipment

Usage Notes:

  1. Do not exceed the maximum input voltage.
  2. Do not exceed the rated load for extended periods.
  3. Ensure the input power is greater than the output power due to internal power consumption.
