Features:
- Fingerprint Registration and Matching: Supports both 1:1 and 1:N modes for flexible verification and identification.
- Storage Capacity: Can store up to 200 fingerprint templates.
- Fast Image Input: Captures fingerprint images in under 0.5 seconds.
- High Security Levels: Offers 5 security levels, with a default level of 3.
- False Acceptance Rate (FAR): < 0.001% at security level 3.
- False Rejection Rate (FRR): < 1.0% at security level 3.
- Fast Matching: Average 1:N search time < 1.0 seconds (1:500).
- Resolution: 500ppi for detailed fingerprint scans.
- Communication Interface: UART (TTL logic level) with adjustable baud rate (9600–57600bps).
- Power Efficient: Operating current < 120mA; peak < 130mA.
Specifications:
- Operating Voltage: DC 5V
- Profile Storage Capacity: 256 bytes
- Template File Capacity: 512 bytes
- Window Area: 18.5mm x 14.6mm
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -40°C to +85°C
- Humidity Range: 40% RH – 85% RH (non-condensing)
Module Dimensions:

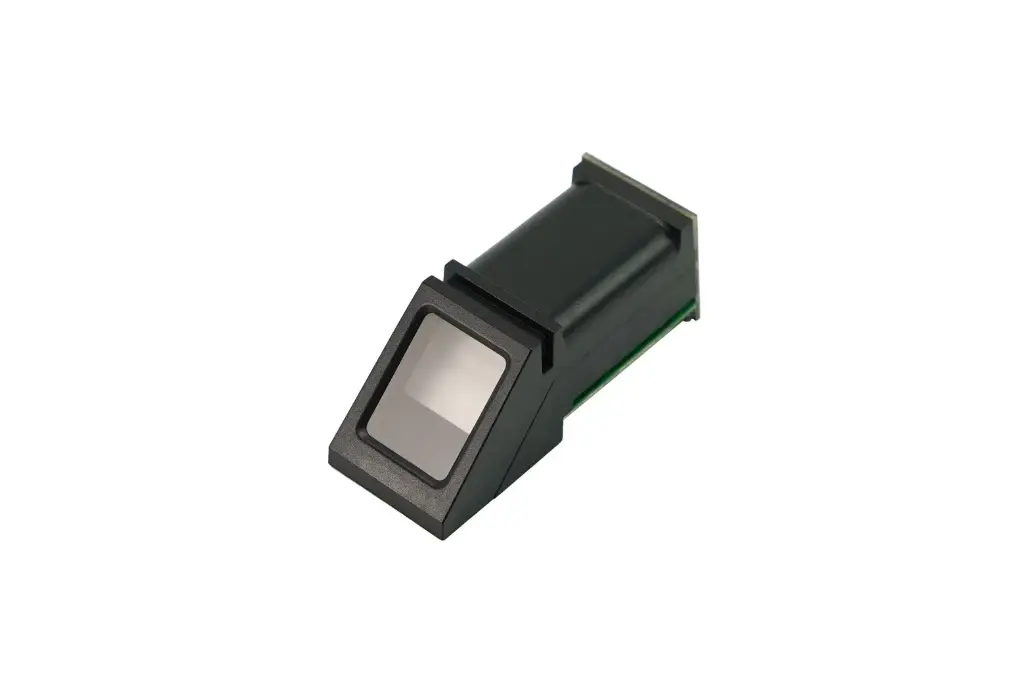

- Optical Module (C3): 47.65mm x 20.50mm x 21.20mm
- Capacitive Main Control Board: 35mm x 28mm x 7mm
- Sensor: 33.4mm x 20.4mm
- Scratch-Type Module: Main Board: 35mm x 28mm x 7mm; Sensor Board: 24mm x 20mm x 5mm
Pinout Description:
| Pin |
Description |
| 1 |
Finger Detection Power + (3.6V – 5V) |
| 2 |
Finger Detection Signal Output (Active High) |
| 3 |
Power Supply +5V |
| 4 |
Transmit (TX) – Data to Host |
| 5 |
Receive (RX) – Data from Host |
| 6 |
GND – Power Ground |
Working Principle:
The module processes fingerprints in two stages: Registration and Matching. During registration, a fingerprint image is captured and stored as a template. During matching, an input fingerprint is compared against stored templates for verification or identification. Results are returned as pass/fail.
Serial Communication:
- Interface: UART (TTL Logic Level)
- Baud Rate: Default 57600bps, configurable (9600 – 115200bps)
- Frame Format: 10 bits (1 start bit, 8 data bits, 1 stop bit), no parity
- Power-Up Delay: Requires ~200ms for initialization after power-on
- RS-232 Compatibility: Requires a level shifter (e.g., MAX232) for PC interface
Applications:
- Access control systems
- Biometric attendance systems
- Security automation
- Embedded authentication devices
- Identity verification terminals
