Digital Voltmeter Ammeter USB Tester Portable Power Charge Dr (Per Piece)

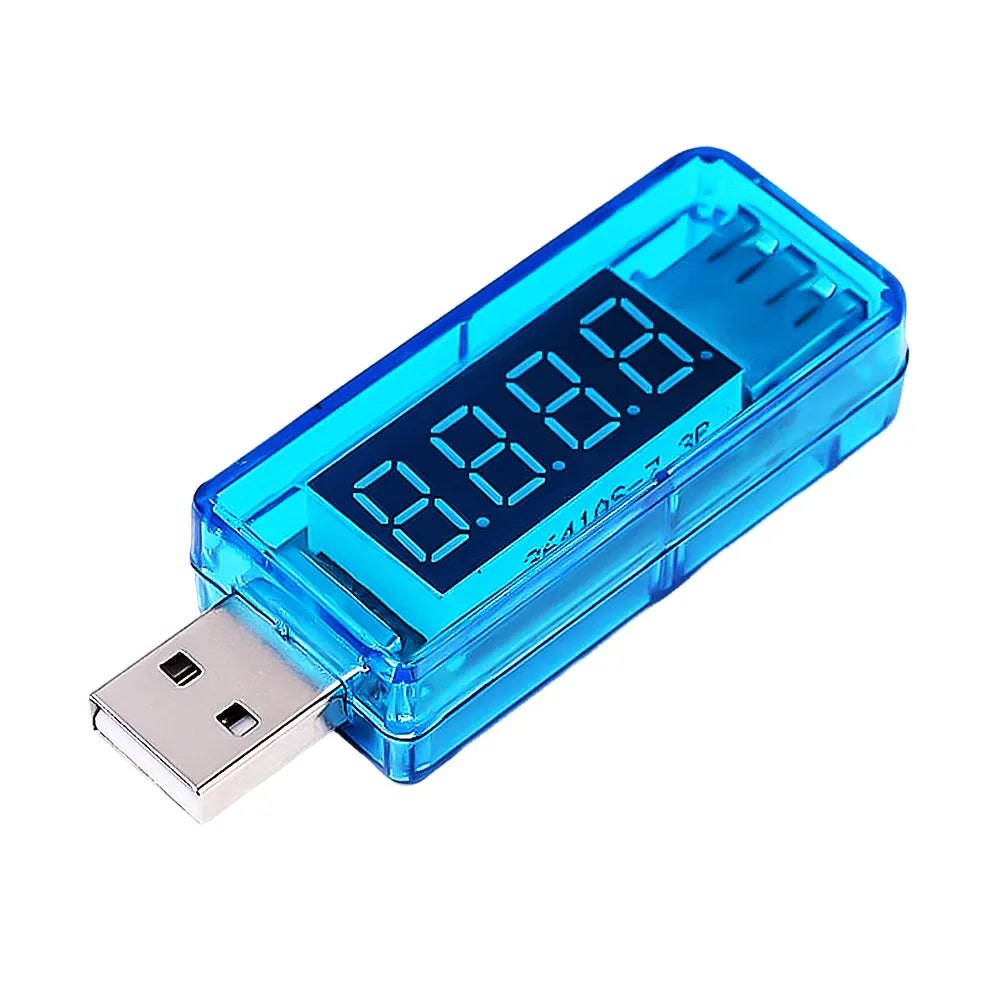

This USB Digital Voltage and Current Meter is a compact and easy to use tool designed to measure the voltage and current of power supply units with a USB port. It is plug and play and does not require any external power source. Once connected the voltage and current values are displayed clearly making it ideal for daily testing and monitoring tasks. Its small size makes it simple to carry and use anywhere.

Package Includes

1 x USB Digital Voltage and Current Meter

USB Current Voltage Display Module

30.45 AED (Tax included)

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

Plug and play operation with no external power required
Measures USB voltage and current simultaneously
Clear OLED display with low power consumption
Auto shutdown protection for over voltage under voltage and full charge
Multiple intelligent protections including over current and under current
One button operation for screen rotation data switching and reset
Compact lightweight and portable design

Specifications

Voltage range: 4 to 30V
Current range: 0 to 3A
Voltage resolution: 10mV
Current resolution: 10mA
Voltage error: less than plus minus 1 percent
Current error: less than plus minus 2 percent
Full scale voltage drop: 200mV
Operating temperature: 0 to 60 degrees Celsius
Display type: 0.91 inch OLED
Display color: white text on black background
Meter color: transparent blue

Applications and Uses

Monitoring USB charger output voltage and current
Testing power consumption of mobile phones and tablets
Measuring power usage of Raspberry Pi and Arduino boards
Protecting electronic devices during charging
Educational and DIY electronics projects

Protection Functions

Over voltage protection
Under voltage protection
Over current protection
Under current protection
Under current delay time protection
