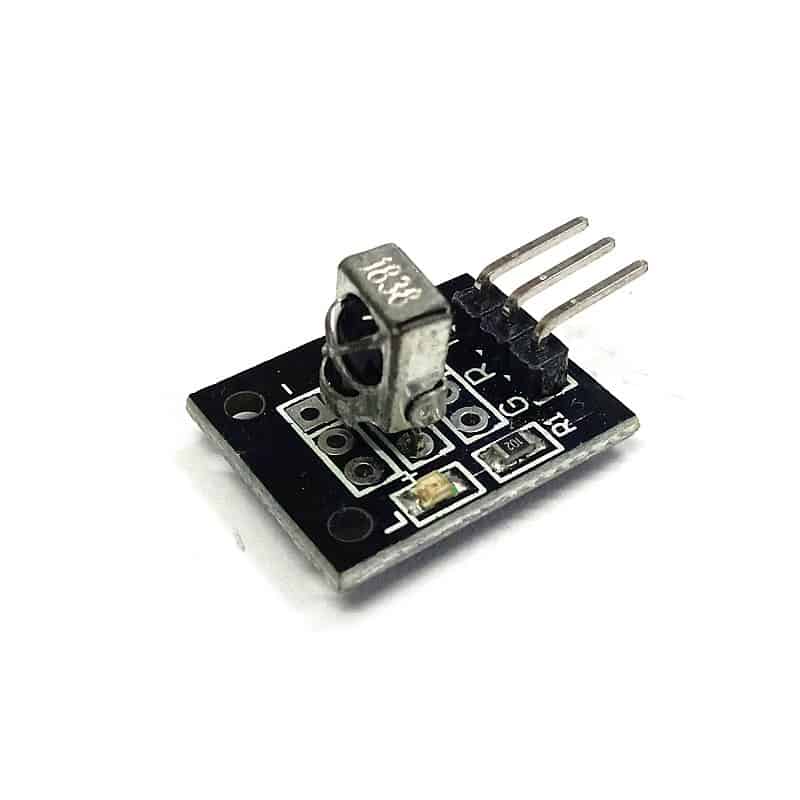

IR Infrared Receiver Sensor Module KY-022
The KY-022 IR Infrared Receiver Sensor Module is a versatile component designed for decoding signals from most IR remote controls. It uses the reliable VS1838B IR receiver chip, tuned to detect 38kHz modulated infrared signals. These signals allow remote commands to be encoded with different protocols, preventing interference when multiple devices operate nearby. The module can also act as a simple IR locator, detecting object movement between the IR LED and the receiver, making it useful for robotics and automation projects.
Package Includes
- 1 x KY-022 IR Infrared Receiver Sensor Module
Features
- High-Quality IR Receiver: Uses the VS1838B infrared receiving head for precise IR signal detection.
- Light Resistance: Operates reliably under ambient light up to 500 lux.
- EMI Protection: Strong resistance to electromagnetic interference for stable performance.
- Built-in IR Processing IC: Enhances sensitivity and accuracy for IR signal decoding.
- Low Power Consumption: Ideal for battery-powered systems.
- Wide Compatibility: Reads signals from most IR remotes.
- Motion Detection Capability: Detects object movement between the transmitter LED and receiver at distances between 0.5–3 meters.
- Unique Signal Recognition: Supports modulated transmission, enabling multiple systems to operate without cross-interference.
Specifications
- Operating Voltage: 2.7V – 5.5V
- Operating Current: 0.4 – 1.5mA
- Reception Distance: Up to 18 meters
- Reception Angle: ±45°
- Carrier Frequency: 38kHz
- Low-Level Output Voltage: 0.4V
- High-Level Output Voltage: 4.5V
- Ambient Light Filter: Up to 500 lux
- Dimensions: 6.4 x 7.4 x 5.1 mm
Applications
- Remote Control Systems: TVs, media players, AC units, and consumer electronics.
- Robotics: IR object detection, navigation, obstacle avoidance.
- Home Automation: Control lighting, fans, and appliances using IR remotes.
- Security Systems: Intruder detection and alarm triggers.
- Industrial Automation: Conveyor tracking, material counting, machine control.
- Entertainment Devices: Gaming consoles, multimedia controllers.
Pin Connections
| Pin | Description |
|---|---|
| Signal | Output Signal |
| VCC | Power Supply |
| GND | Ground |
References
- https://arduinomodules.info/ky-022-infrared-receiver-module/
- https://www.amazon.com/barterine-KY-022-Infrared-Receiver-Arduino/dp/B01MG1LFA0
- https://www.thegeekpub.com/wiki/sensor-wiki-ky-022-infrared-sensor/
- https://www.arduinocircuit.com/wp-content/uploads/2023/02/KY-022-Infrared-Receiver-module-Pinout-768x480.webp
