Adapter Breakout For ESP-01 ESP8266

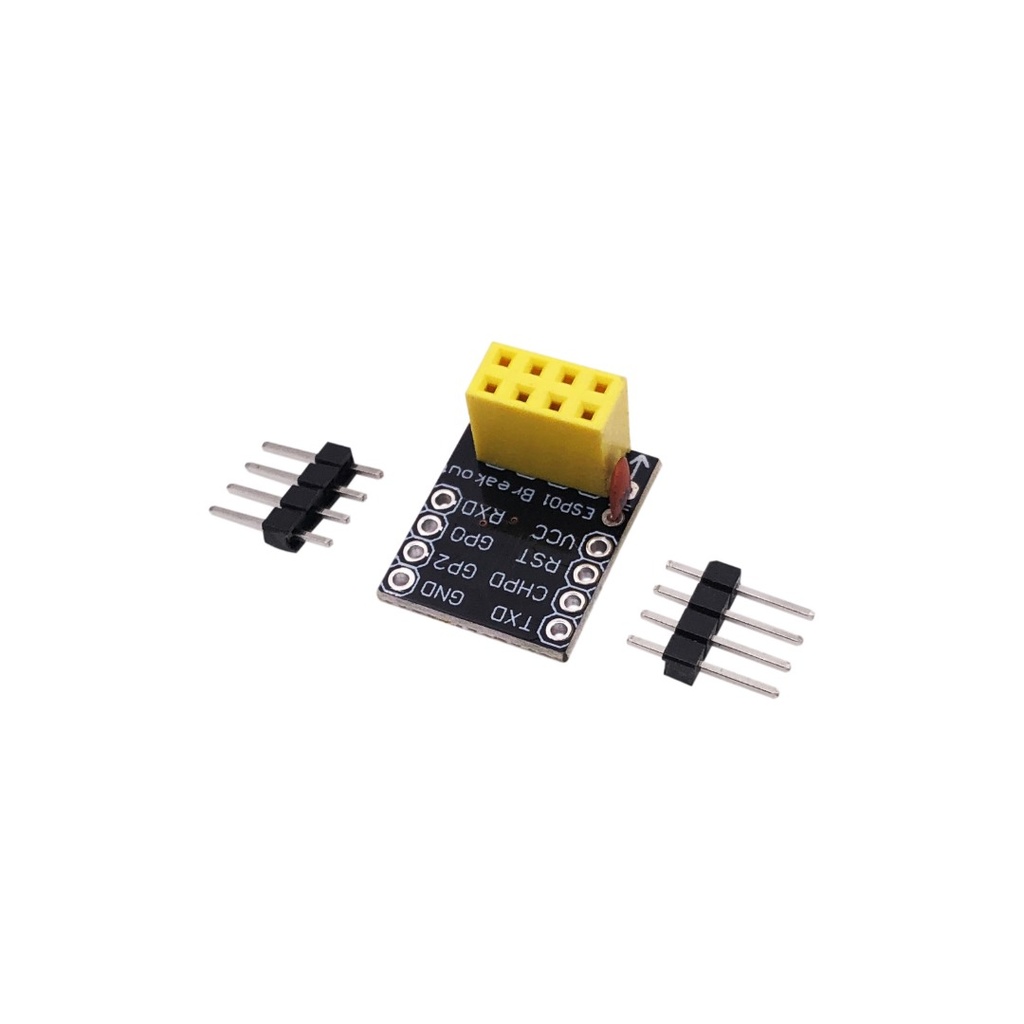

This is a Breadboard Adapter designed for the popular ESP-01 model of the ESP8266 serial-to-WiFi transceiver module. ESP-01 pins are not breadboard-friendly and are not labelled, which makes rapid prototyping inconvenient. This adapter simplifies the process by providing a clear pinout silk print and fits neatly into a standard breadboard. It also includes a 0.1µF decoupling capacitor to ensure stable operation of the ESP-01 module.

Package Includes

  • 1 x ESP-01 Breadboard Adapter


3.15 AED 3.15 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

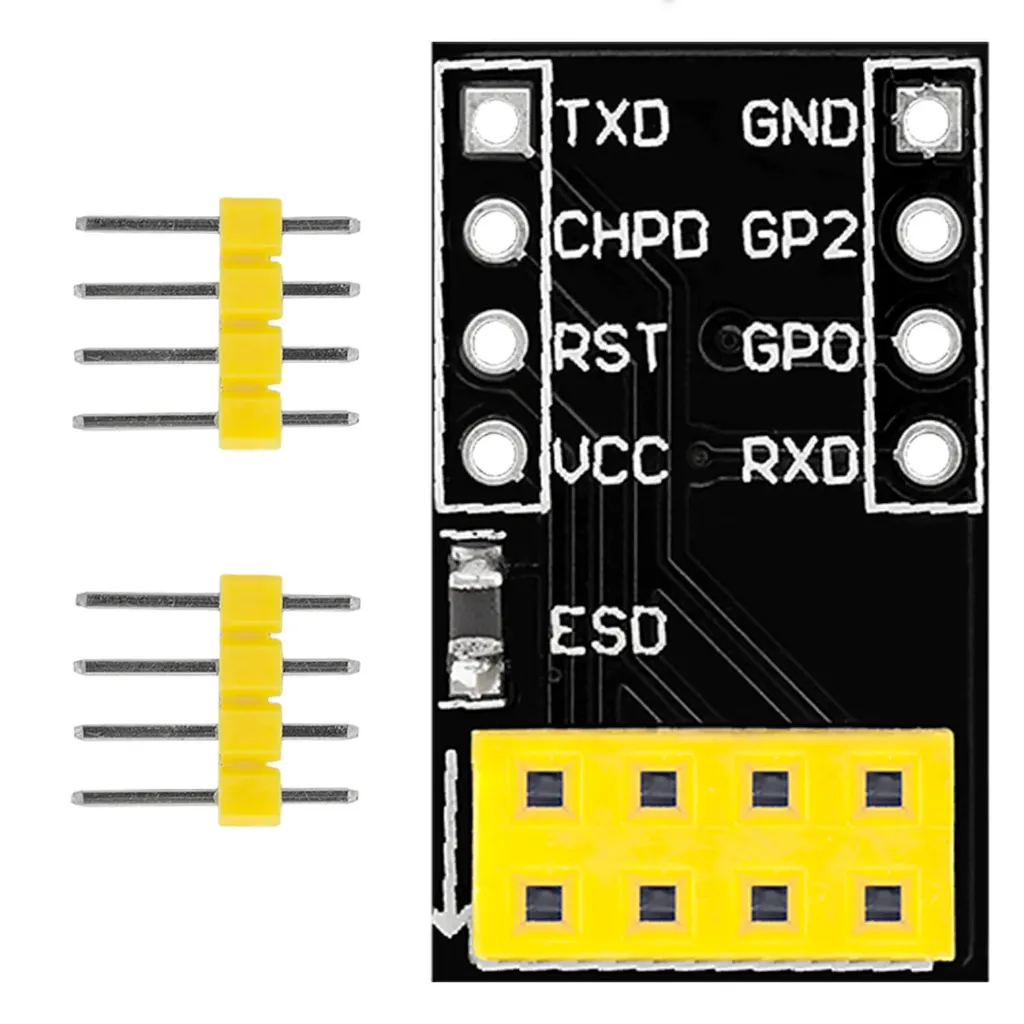

The module features a clearly labeled pinout printed on the top side, ensuring easy identification of all ESP-01 connections during prototyping. It fits perfectly onto a standard breadboard, making wiring far more organized and beginner-friendly.

To ensure stable operation, the adapter includes a 0.1 µF decoupling capacitor, which helps prevent voltage dips and keeps the ESP-01 running smoothly without unexpected resets.



Features

  • Converts ESP-01 pinout to breadboard-friendly format
  • Silk-printed pin labels for easy identification
  • Includes 0.1µF decoupling capacitor for stable operation
  • Fits standard breadboards
  • Makes rapid prototyping with ESP-01 easier

Connections

Breadboard adapter for ESP-01 Breadboard-to-ESP8266 01 Serial Wireless WiFi Module

Pin Description Connection Example
VCC Power Supply 3.3V
CH-PD / EN Chip Enable 3.3V
TX Transmit Connect to RX of Arduino or USB-to-Serial
RX Receive Connect to TX of Arduino or USB-to-Serial
GND Ground GND

UART Settings

  • Baud Rate: 115200
  • Line Ending: NL & CR
