Heart Rate Pulse Sensor Kit

Heart Rate Pulse Sensor Kit

The Pulse Sensor Kit provides everything you need to begin building medical or biometric projects with your development board. This sensor can be placed on the fingertip or earlobe, and easily connects to Arduino or other microcontrollers using its included cable. It features built-in amplification and noise-cancellation circuitry, allowing clean and reliable pulse or heart-rate readings.

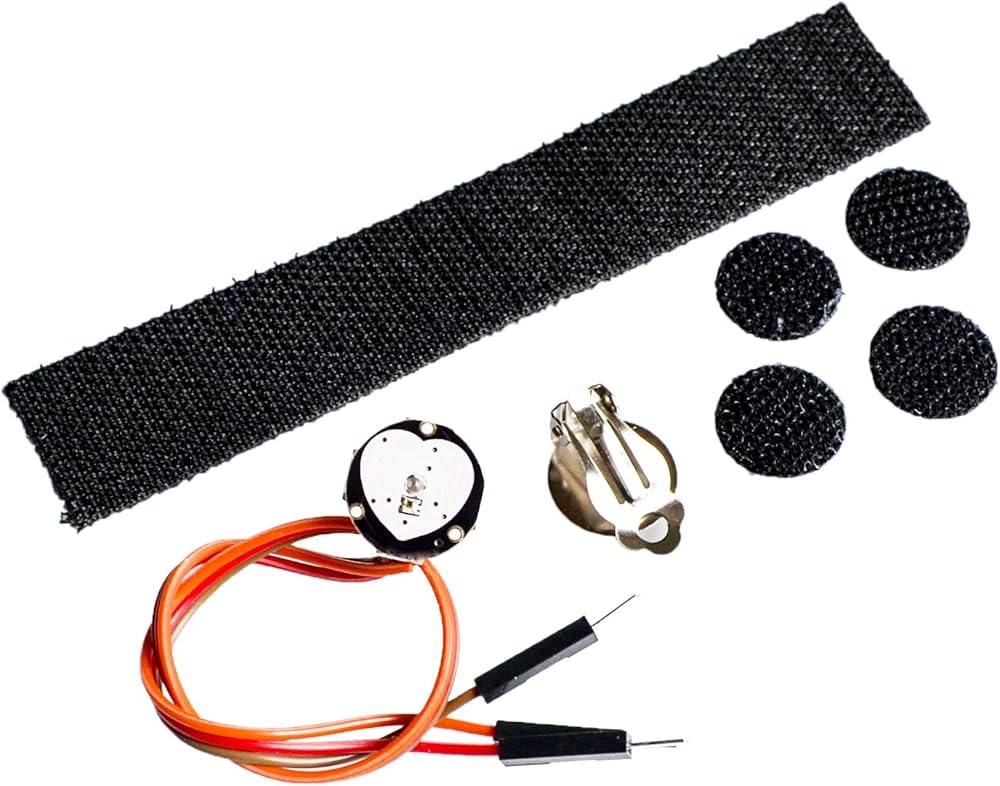

Package Includes

  • 1 × Pulse Sensor (with three 20 cm DuPont wires, colours may vary)
  • 4 × Black adhesive pads
  • 1 × Metal ear clip (16 mm)
  • 1 × Strap
  • 4 × Transparent films

35.00 AED 35.00 AED Tax Included
35.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Heart Rate Sensor
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications

  • Diameter: 0.625" (~16 mm)
  • Overall Thickness: 0.125" (~3 mm)
  • Operating Voltage: 3V – 5V
  • Operating Current: ~4 mA at 5V
  • Biometric pulse/heart rate detection
  • Plug-and-play sensor design
  • Built-in amplification and noise-reduction circuitry

Pinout

Pin Number Pin Name Wire Colour Description
1 Ground Black Connect to system ground
2 VCC Red Connect to +5V or +3.3V
3 Signal Purple Pulsating output signal

Supported Development Boards

  • STM32 full-range chips and development boards (MDK, IAR)
  • Arduino Series: Uno R3, Mega2560, Leonardo, etc.
  • 51 Series development boards (STC12C5A60S2)
  • MSP430 Series: LaunchPad G2, MSP430FR5969
  • KL25Z (MKL25Z128VLK4 ARM Cortex-M0+)

Applications

  • Sleep tracking
  • Anxiety monitoring
  • Remote patient monitoring and alert systems
  • Health and fitness bands
  • Advanced gaming consoles
