  3. Touch Sensor Capacitive Touch Switch Module TTP223B
Default
Touch Sensor Capacitive Touch Switch Module TTP223B

Touch Sensor Capacitive Touch Switch Module TTP223B

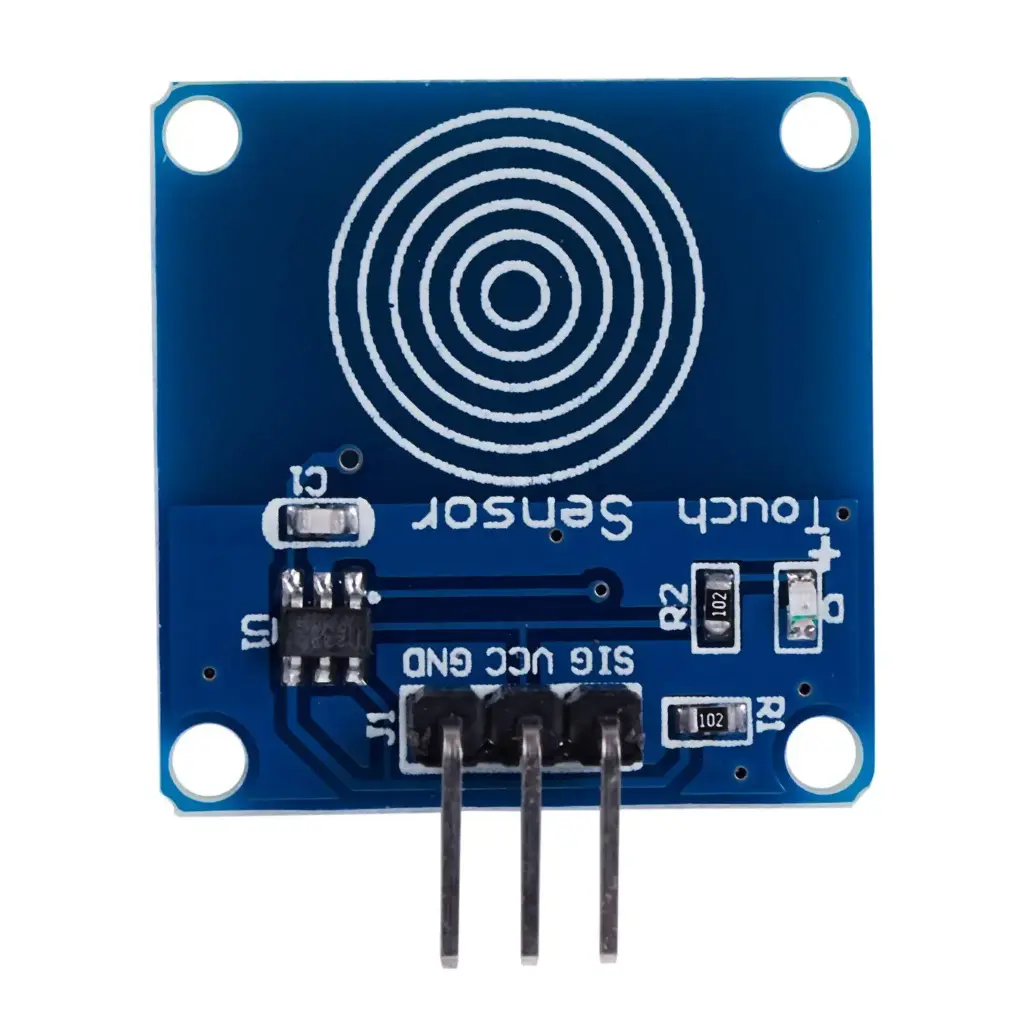

The Touch Sensor Capacitive Touch Switch Module TTP223B is a touch detection device utilizing the TTP223B touch detection IC. Operating as a jog-type capacitive touch switch, it detects finger presence, toggling from low to high output when touched. In low-power mode by default, it activates upon touch and reverts to low-power mode if untouched for 12 seconds. Suitable for installation on plastic, glass, and non-metallic surfaces, it serves as a hidden button alternative for applications like walls and desktops, excluding surfaces with thin metal sheets.

Package Includes:

  • 1 x Touch Sensor Capacitive Touch Switch Module TTP223B

9.45 AED 9.45 AED Tax Included
9.45 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share





Features:

  • Low power consumption: Energy-efficient operation
  • Replaces traditional keys: Serves as a convenient touch-sensing alternative
  • Four M2 screw holes: Easy to install and operate
  • Wide compatibility: Can be installed on plastic, glass, and non-metallic materials
  • Hidden installation: Suitable for use in walls, desktops, and more
  • Quick response: Fast detection and output switching
  • Automatic power-saving mode: Enters low-power mode after 12 seconds of inactivity

Touch Sensor TTP223B

Specifications:

  • Operating voltage: DC 2.0V ~ 5.5V
  • VOH: VCC - 0.8V
  • VOL: VCC - 0.3V
  • Sink current: 8mA @ VCC = 3V
  • Source current: -4mA @ VCC = 3V, VOL = 0.6V, VOH = 2.4V
  • Response time: 220ms (low power mode), 60ms (quick mode)
  • Dimension: 24 x 24 x 7.2mm

Applications:

  • Home automation: Control lights, fans, and appliances
  • Industrial controls: Use in machines and conveyor belts
  • Automotive controls: Use in power windows, sunroofs, etc.
  • Interactive exhibits: Ideal for museums and installations
  • Security systems: For alarms and access control
  • Medical equipment: Touch interface for diagnostics or monitoring systems

Pin Connections:

Pin Description
VCC Power Supply: Connects to +3.3V or +5V
GND Ground: Connects to the negative terminal
SIG Signal Output: HIGH when touched, LOW when not

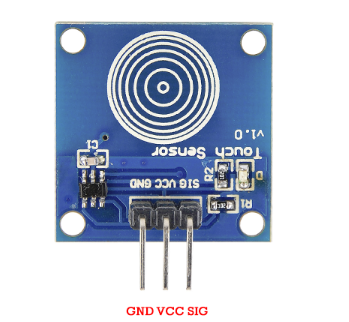

Pinout Diagram



Sample Project:

Circuit:

  • Arduino Uno
  • Capacitive Touch Sensor
  • LED
  • 680 Ohm Resistor
  • Jumper Wires
  • Mini Breadboard

Below is a wiring diagram. An LED with a resistor (1kΩ or less) is connected to light up when the sensor is touched.

Touch Sensor Circuit Diagram

Library:

No external library is required for this module to function.

Code:

int led = 7;

void setup() {
  pinMode(led, OUTPUT);
  Serial.begin(9600);
}

void loop() {
  int cap_reading = analogRead(A0);
  float volt_reading = (5.0 / 1023.0) * cap_reading;
  Serial.print(volt_reading);
  Serial.println(" Volts");

  if (volt_reading > 1.5) {
    digitalWrite(led, HIGH);
  } else {
    digitalWrite(led, LOW);
  }

  delay(20);
}

Notes:

  • This module should not be covered with thin sheets of metal or conductive materials, as it may interfere with the capacitive sensing.
