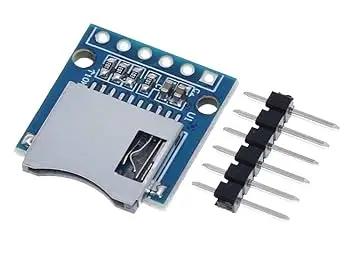

Micro SD Card Module 3.3V 6Pins

Micro SD Card Module 3.3V 6Pins

Add reliable storage to your electronics project with this Mini Micro SD Card Reader Module, also known as a Micro SD Adapter. It enables easy read/write operations with SD cards and supports data transfer, media storage, logging, and more.

Package Includes:

  • 1 x Micro SD Card Module 3.3V 6 Pins

SD Card Module
5.25 AED 5.25 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



The module features an SPI interface compatible with Arduino, AVR, and other microcontrollers. It includes onboard level shifting and voltage regulation to ensure safe operation at 3.3V, even when used with 5V systems like Arduino UNO or Mega.

This versatile module supports various applications including:

  • Data logging
  • Audio file playback
  • Image and graphics storage

Specifications:

  • Interface: SPI (MISO, MOSI, SCK, CS)
  • Operating Voltage: 3.3V
  • Pin Count: 6 pins
  • Dimensions: 20mm x 18mm
  • Compatibility: Arduino UNO, Mega, ESP32, STM32, etc.

Pinout of the Module:

  • 3V3: 3.3V power supply
  • CS: Chip Select (GPIO 5 on ESP32)
  • MOSI: Master Out Slave In (GPIO 23)
  • CLK: Clock (GPIO 18)
  • MISO: Master In Slave Out (GPIO 19)
  • GND: Ground
