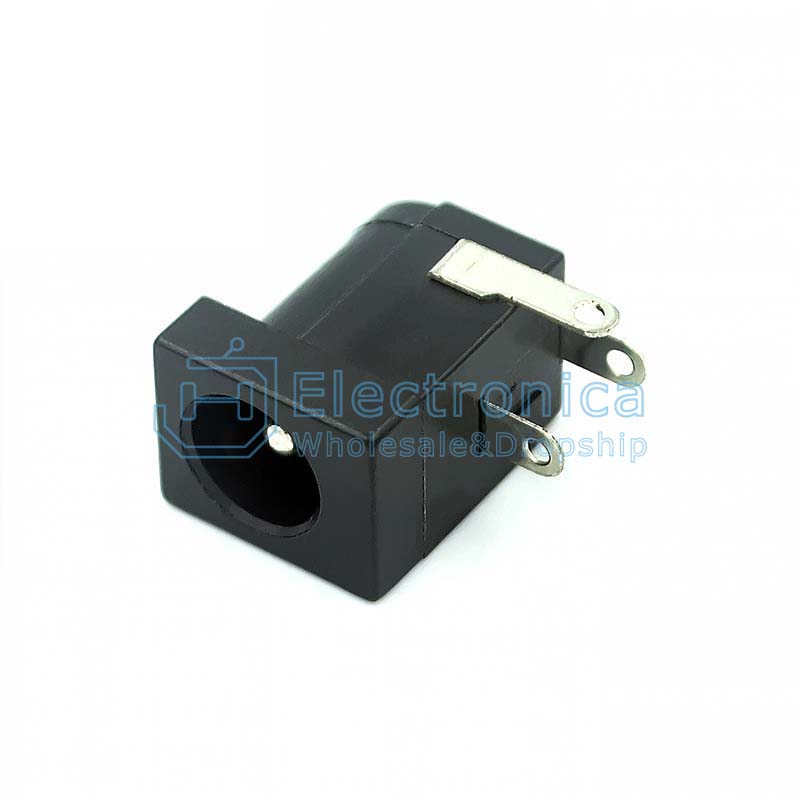

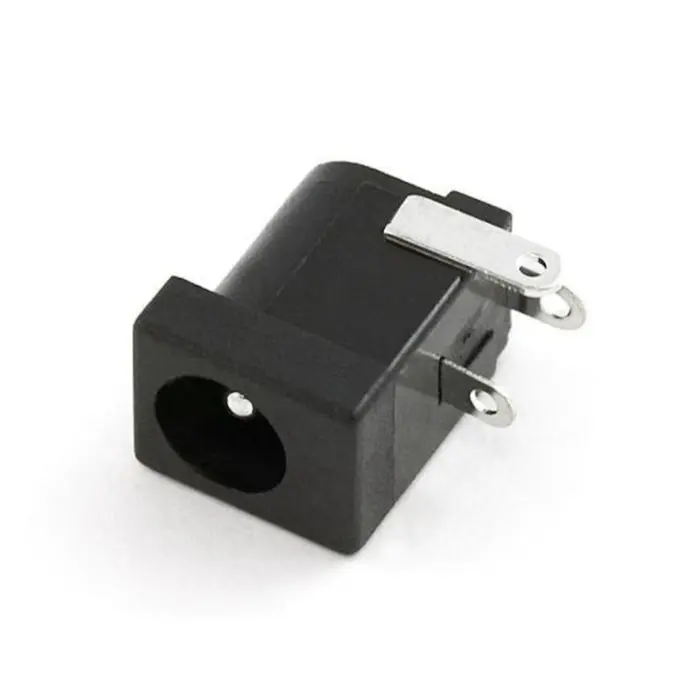

Connector DC Power Jack Female DIP 3 Pin Supply Socket Connector DC005 Type 2.0

This is a high-quality 3-pin DC Power Jack Female Connector (DC005 Type 2.0), ideal for electronics projects and prototyping applications. It is commonly used to provide a reliable DC power connection to development boards, sensors, or other electronic modules. The connector features a through-hole DIP design for easy PCB mounting.

Package Includes:

  • 1 x DC Power Jack Female Connector DC005 Type 2.0 (3-Pin DIP)

2.63 AED 2.63 AED Tax Included
2.63 AED Tax Included

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • Connector Type: DC Power Jack, Female
  • Mounting Type: DIP 3 Pin
  • Type: DC005, 2.0
  • Contact Resistance: ≤ 0.03Ω°C
  • Insulation Resistance: ≥ 100MΩ
  • Withstand Voltage: AC 500V (50Hz) / minute
  • Operating Temperature Range: -40°C ~ +55°C
  • Rated Load: DC 30V 0.5A
  • Insertion and Extraction Force: 3–20N
  • Durability (Life Cycle): 5000 insertions
