Encoder Light Blocking Photo Interrupter Sensor Module KY-010

Encoder Light Blocking Photo Interrupter Sensor Module KY-010

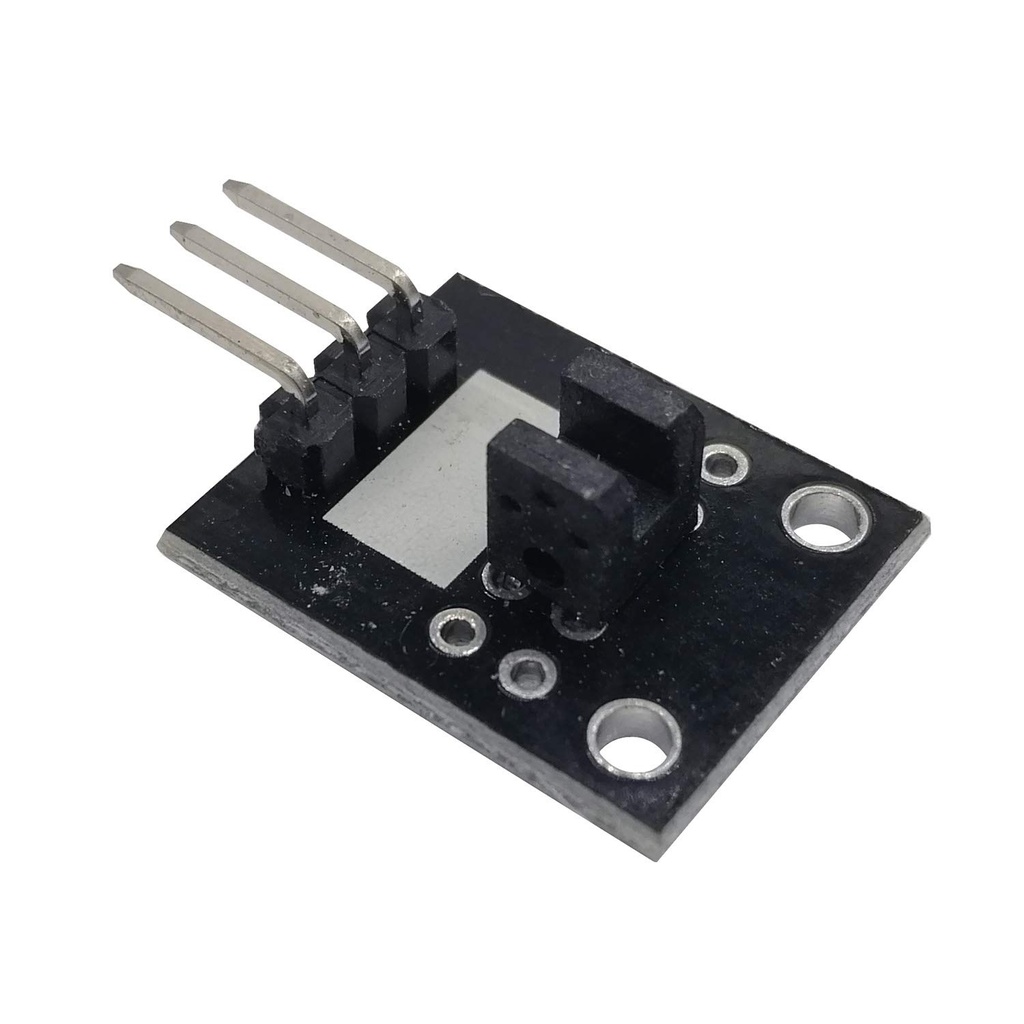

The KY-010 light barrier module is a photo interrupter circuit mounted on a breakout board. It is a 3-pin module that brings its signal pin HIGH when an object blocks the light from traveling between its emitter and sensor. This sensor is ideal for detecting a card swipe through a slot or other applications where opening or closing detection is required.

Package Includes:

  • 1 x KY-010 Light Barrier Module

9.45 AED 9.45 AED Tax Included
9.45 AED Tax Included

Not Available For Sale

This combination does not exist.

Photoelectric Encoder
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Operating Voltage: 3.3V to 5V DC
  • Dimensions: 18.5mm x 15mm (0.728in x 0.591in)
  • Light Barrier Opening: 2mm wide x 4.7mm long

Pinout of the Module:

Pin Description
(-) GND
Middle +5V
S Signal Out



Example:

Connections:

Construction of a circuit with KY-010 and an LED

Code:

#define LASER 8
#define LED 7

void setup() {
  Serial.begin(9600);
  pinMode(LED, OUTPUT);
  pinMode(LASER, INPUT);
}

void loop() {
  boolean active = digitalRead(LASER);
  digitalWrite(LED, active ? HIGH : LOW);
}
