LCD 20x4 Character Display Module Blue Background With I2C Adapter

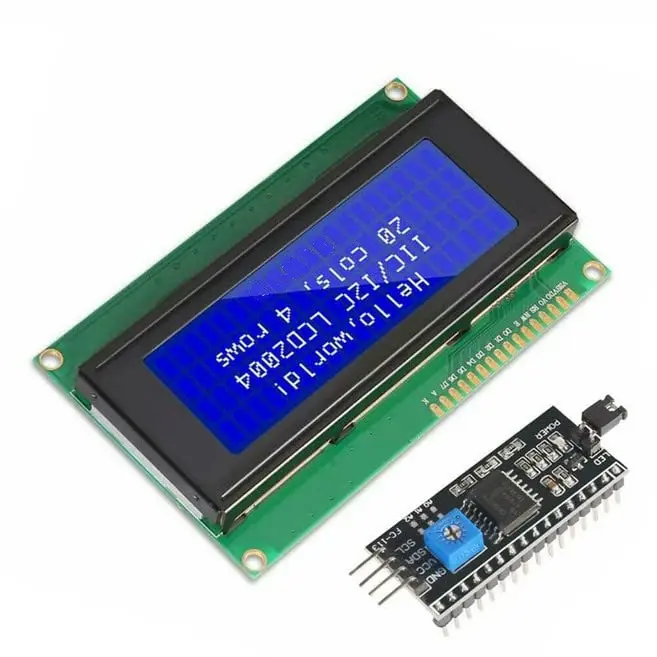

This I2C 2004/20x4 LCD Module features a sleek blue backlight with white text for clear and attractive display output. It supports displaying 4 lines of text with 20 characters per line. The module uses an I2C interface that only requires two I/O pins, freeing up other pins on your microcontroller for additional uses. The contrast can be easily adjusted using the potentiometer on the back, and the backlight can be turned off by removing the jumper cap.
Package Includes:
- 1 x I2C 2004/20x4 LCD Module with 20x4 Character Display
- 1 x I2C Interface Adapter Board
Features :
- Display Size: 20 characters x 4 lines
- Backlight Color: Blue with white text
- Interface: I2C (IIC) adapter included for simplified connection
- Operating Voltage: 5V DC
- Uses only 2 I/O pins via I2C, freeing up microcontroller pins
- Adjustable contrast via built-in potentiometer on the adapter
- Compatible with popular microcontrollers such as Arduino, Raspberry Pi, ESP8266, and more
- Standard HD44780 controller compatible
- Compact and lightweight design for easy integration into projects
Specifications:
- I2C Address: 0x3F
- Pin Definition: GND, VCC, SDA, SCL
Pinout of the Module:
| Pin Name | Pin Type | Pin Description |
|---|---|---|
| GND | Power | Ground connection |
| VCC | Power | 5V Power Supply Input |
| SDA | I2C Data | Serial Data Line for I2C communication |
| SCL | I2C Clock | Serial Clock Line for I2C communication |
| A0 | Jumper | I2C Address Selection Bit 0 |
| A1 | Jumper | I2C Address Selection Bit 1 |
| A2 | Jumper | I2C Address Selection Bit 2 |
| Backlight | Jumper | Control Backlight ON/OFF |
Applications:
- Embedded systems
- DIY electronics projects
- Microcontroller displays
- Information panels
- Data logging displays
- Home automation interfaces
Usage Notes:
- Ensure proper power supply voltage (5V recommended)
- Use pull-up resistors on SDA and SCL lines if required by your microcontroller
- Adjust the contrast using the small potentiometer on the I2C adapter board for optimal display clarity
- Libraries like
LiquidCrystal_I2Cfor Arduino can be used to program the display easily
