LCD 20x4 Character Display Module Yellow Background With I2C Adapter
The module is a low-power consumption character LCD Module with a built-in controller. This is a fully assembled and tested Serial LCD 20x4 Module with a yellow background and I2C Module. It helps reduce the number of pins needed to connect the display to your project — only 2 data pins, along with VCC and GND are required.
It is programmed using the LiquidCrystal I2C library and can be easily interfaced with any microcontroller. This makes it an excellent choice for Arduino and other MCU-based projects.
Package Includes:
- 1 x LCD 20x4 Character Display Module (Yellow Background)
- 1 x I2C Adapter
Specifications of the Display:
- Display Format: 20 Characters x 4 lines
- Color: Gray Text, Yellow Backlight
- Supply Voltage: 5V
- Interface: Can be connected in Parallel or via I2C using the included I2C Module
- Size: 98 x 60 x 12 mm
Specifications of the I2C Module:
- Supply Voltage: 5V
- Backlight and contrast adjustable via potentiometer
- Comes with 2 IIC interfaces, compatible with Dupont Line or IIC dedicated cable
- Compatible with 1602 and 2004 LCDs

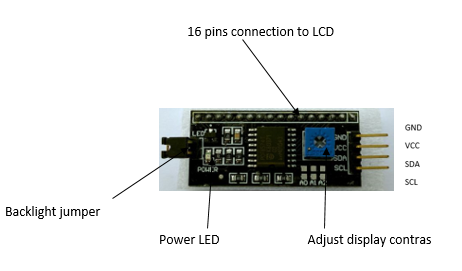

Pinout of the Module:
It is recommended to solder the I2C module directly to the display. Alternatively, you can solder female pin headers, allowing you to use the display with or without the I2C module.
