Features:
- Model: D2-1

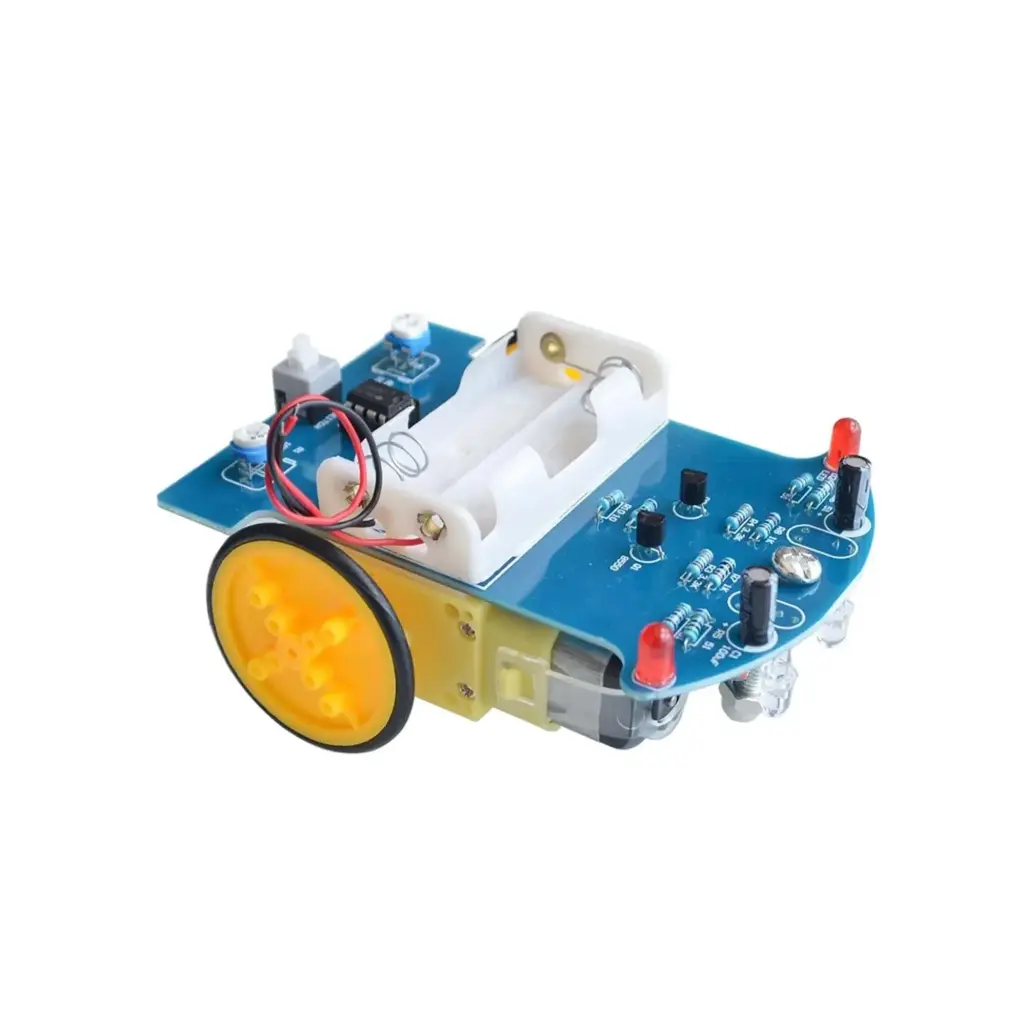

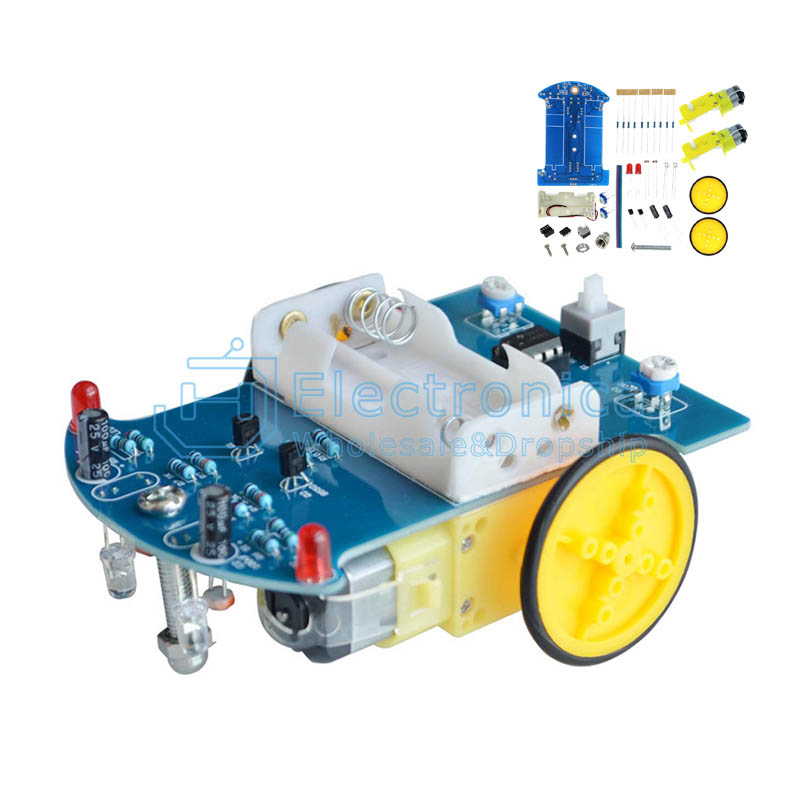

- Name: D2-1 Intelligent Tracking Car DIY Kit

- PCB Size: 105 × 72 × 1.6 mm

- Installation Size: 105 × 85 × 46 mm

- Operating Voltage: 3V

- No Programming Required — Purely solder-and-assemble for quick results

How It Works:
The car uses a photoresistor to detect differences in light reflectivity from the track (black vs. white surfaces). Based on sensor input, it controls the motors to follow the black path. A red LED on the PCB activates when black is detected, helping guide the car along its route.
Working Principle:
- Infrared sensors detect line contrast

- Photoresistors sense light intensity

- Motors adjust based on voltage comparator feedback

- No coding needed; logic is hardwired via circuits

Schematic:

Assembly Instructions:
- Circuit Assembly:
- Solder all resistors first (start with the lowest height)

- Observe polarity for capacitors, transistors, LEDs

- Verify orientation for all polarized components


- Mechanical Assembly:
- Mount the universal wheel and battery holder

- Connect motors, install wheels, and attach tires


- Optoelectronic Components:
- Install photoresistors and LEDs approximately 5mm from ground


- Testing & Debugging:
- Insert 2 AA batteries

- Test sensor reactions to light/dark paths

- Reverse motor wiring if car moves in the wrong direction
