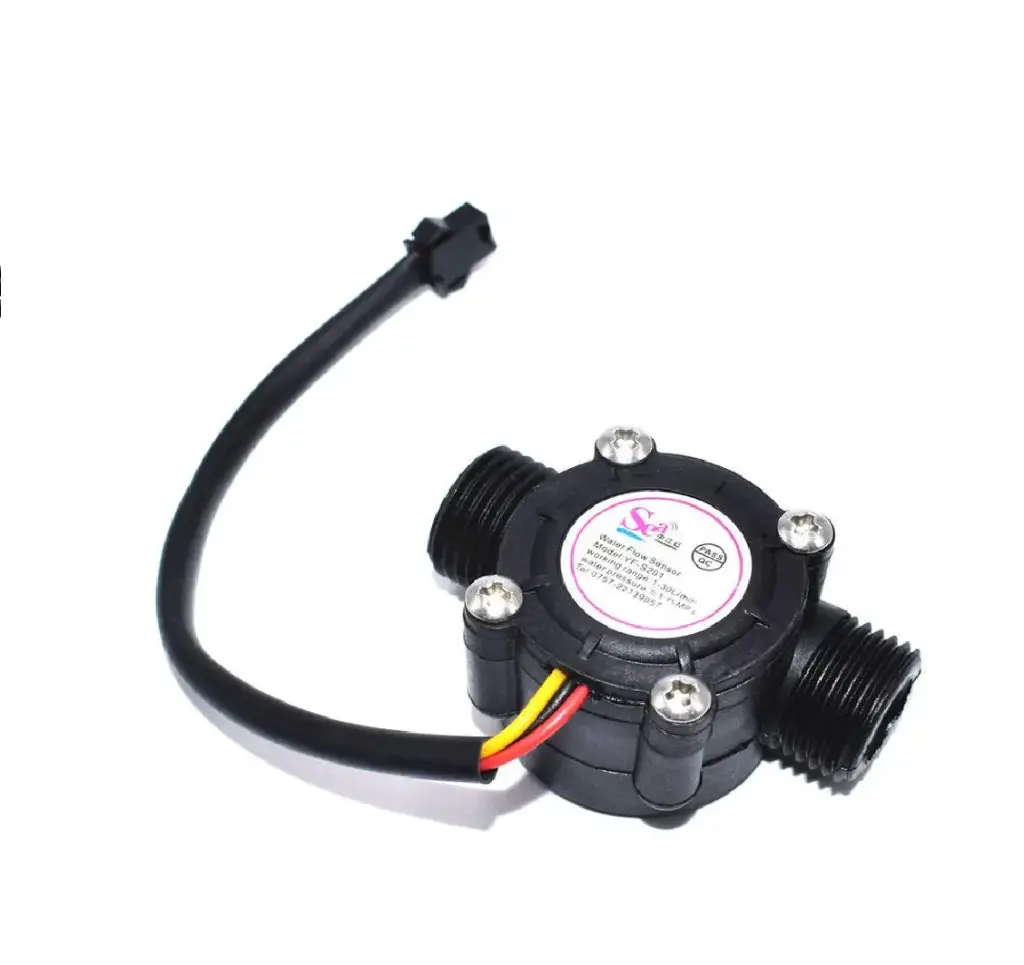

Water Flow Sensor 1-30L/min 2.0MPa YF-S201

Water Flow Sensor 1-30L/min 2.0MPa YF-S201

The YF-S201 water sensor is a cost-effective and reliable device designed to measure the flow rate and volume of fluids in pipelines. It features a durable copper body with an internal water rotor and a Hall effect sensor. The Hall sensor detects changes in magnetic flux as the rotor spins, generating a pulse output with each revolution. With its simple 3-wire interface and compatibility with microcontrollers, it's ideal for DIY projects, automation systems, and basic fluid measurement tasks.

Package Includes:

  • 1 x YF-S201 Water Flow Sensor

26.25 AED 26.25 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  1. Flow Measurement Technology: Designed for in-line fluid flow rate and volume measurements using a copper body and internal rotor system.
  2. Hall Effect Sensor: Integrated magnetic Hall effect sensor provides a pulse signal output for each rotor spin; safely sealed from the water path.
  3. Three-Wire Configuration: Simple wiring – Red (5-24VDC Power), Black (Ground), Yellow (Pulse Output).
  4. Rotor-Magnet Interaction: Flowing water rotates a magnetic rotor, with the Hall sensor detecting rotor speed to produce pulse output.
  5. Square Wave Pulse Output: Generates TTL-level pulse signals; frequency proportional to flow rate (Hz ÷ 7.5 = L/min).
  6. Microcontroller Compatible: Easily interfaces with Arduino, Raspberry Pi, and other MCU platforms for logging and automation.
  7. Basic Calibration: Requires calibration to achieve better than 10% accuracy due to variation from pressure and orientation.
  8. Durable Build: Designed for 300,000+ operational cycles under standard conditions.

Specifications:

  • Model: YF-S201
  • Sensor Type: Hall Effect
  • Working Voltage: 5V to 18V DC (Minimum tested: 4.5V)
  • Max Current Draw: 15mA @ 5V
  • Output Type: 5V TTL
  • Flow Range: 1 to 30 Liters/Minute
  • Temperature Range: -25℃ to +80℃
  • Humidity Range: 35% to 80% RH
  • Accuracy: ±10%
  • Max Water Pressure: 2.0 MPa
  • Duty Cycle: 50% ±10%
  • Rise Time: 0.04 µs
  • Fall Time: 0.18 µs
  • Pulses per Liter: ~450
  • Minimum Lifespan: 300,000 cycles
  • Cable Length: 15 cm
  • Pipe Connection: 1/2"
  • Outer Diameter: 0.78"
  • Thread Size: 1/2"
  • Dimensions: 2.5" x 1.4" x 1.4"

Connection Details:

  • Red Wire: +5V (Power Supply)
  • Black Wire: GND
  • Yellow Wire: Pulse Output (PWM Signal)

Flow Rate Formula:

Flow Rate (L/min) = Pulse Frequency (Hz) ÷ 7.5

Applications:

  • Water Dispensers
  • Irrigation Systems
  • DIY Water Usage Logging
  • Flow Rate Monitoring in Embedded Projects
  • Smart Appliances and Water Control Systems
