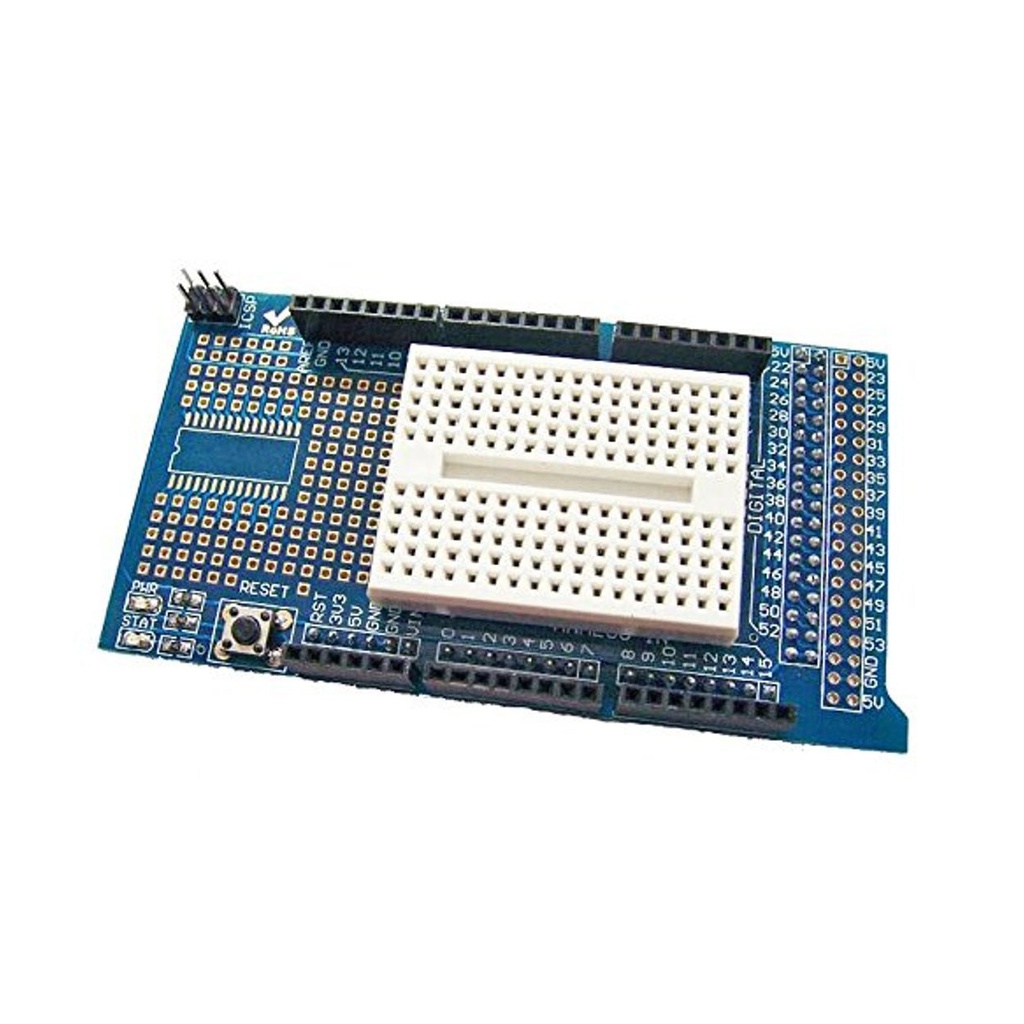

Prototype Protoshield V3 Shield with Mini BreadBoard for MEGA

Prototype Protoshield V3 Shield with Mini BreadBoard for MEGA

This prototype expansion shield is specially designed for Arduino MEGA and MEGA2560 boards. It includes a dedicated SOP28 SMD component area, making it convenient for electronics enthusiasts to experiment and prototype various circuits without soldering directly onto the Arduino. The shield supports direct plug-in for MEGA boards and provides ample space for a mini breadboard and jumper wires.

Package Includes:

  • 1 x Proto Shield V3.0 for Arduino MEGA
  • 1 x Mini Breadboard (170 points)

19.95 AED 19.95 AED Tax Included
19.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Fully compatible with Arduino MEGA ATmega1280 and MEGA2560 boards
  • Includes SOP28 SMD component area for surface-mount prototyping
  • Supports direct Arduino MEGA plug-in
  • Integrated power and status LEDs
  • Reset button on-board for easy access
  • Supports mounting of a 170-point mini breadboard
  • Three mounting screw holes for attachment to cases or surfaces
  • Perfect for building, testing, and modifying circuits

Specifications:

  • Compatibility: Arduino MEGA / MEGA2560 / ATmega1280
  • Shield Size: Approximately 2.7 x 2.1 inches
  • Breadboard Size: 170 tie points
  • Pin Spacing Note: The spacing between digital pins 7 and 8 is 160 mil (not a standard 100 mil spacing)
  • Overall Dimensions: Approx. 20 cm x 15 cm (including breadboard)

Applications:

  • Arduino MEGA-based circuit prototyping
  • Educational projects and STEM experiments
  • Electronics development and testing
  • DIY and hobby electronics
