7 segment Digital LED Display Single Digit Small CC

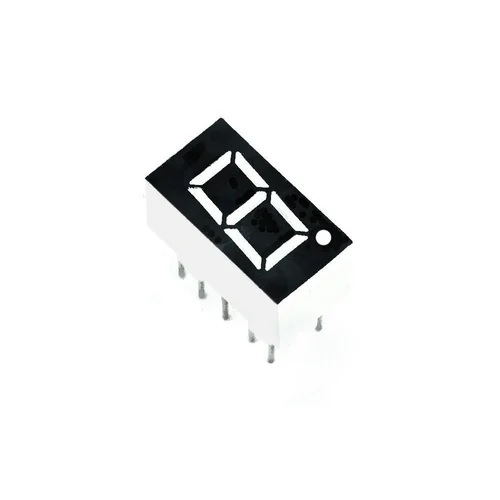

The LED 7-segment Digital Display, model SM420361N, is a single-digit display commonly used in embedded systems, electronics projects, and industrial applications. It can show numbers from 0 to 9 and a few characters. This display is of the common cathode type, measures 0.36 inches (excluding pins), and emits red light. It is constructed with durable plastic and metal materials.

Package Includes

  • 1 x LED 7-Segment Digital Display (SM420361N)
7 segment
5.25 AED 5.25 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

  • Single-digit 7-segment LED display
  • Common cathode type
  • 0.36 inch size (excluding pins)
  • Plastic and metal construction
  • Red LED color

Specifications

  • Product Name: LED Digital Display
  • Model: SM420361N
  • Type: Common Cathode
  • Size (excluding pins): 0.36 inch
  • Material: Plastic, Metal
  • LED Color: Red

Common Cathode Configuration

  • All the cathodes of the seven LED segments are internally connected.
  • Individual segments (a-g) are activated by applying a positive voltage (HIGH logic level) to the respective anode pins while the common cathode is connected to ground (logic "0").
  • Common cathode displays are easy to interface with microcontrollers and digital logic circuits.
  • This configuration simplifies circuit design and allows efficient multiplexing of multiple displays in applications requiring larger numeric or alphanumeric displays.

Applications

  • Embedded systems numeric display
  • Industrial counters and meters
  • DIY electronics projects
  • Digital clocks and timers
  • Alphanumeric or numeric display interfaces with microcontrollers

Visual Reference

7-segment display working
