Matrix Dot Module 2 In One Display with 5P Line For Raspberry Pi

The Matrix Dot Module 2 In One Display is a versatile LED display designed for Raspberry Pi projects. It uses a special LED constant current control chip that efficiently manages 64 LEDs while using minimal GPIO pins. The module features a 2 * 8x8 common shade red dot matrix, making pin identification simple. Its compact design and high-quality construction make it durable and easy to install for a variety of applications.

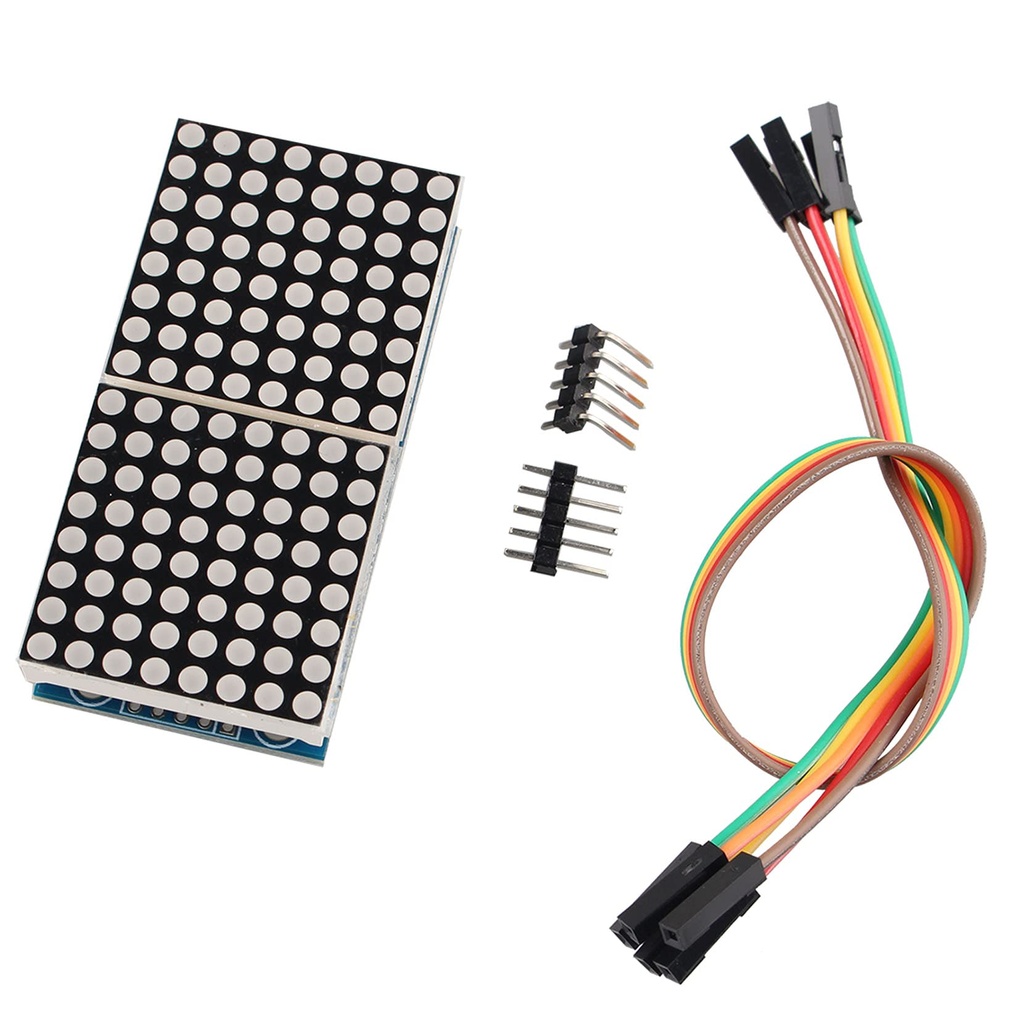

Package Includes

  • 1 x Dot Matrix Module for Raspberry Pi
40.95 AED 40.95 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

  • Special LED Constant Current Control Chip: Efficiently controls 64 LEDs while occupying only 3 IO + 2 enabled pins on the Raspberry Pi.
  • 8x8 Common Shade Red Dot Matrix: Provides clear and vibrant LED displays with easy-to-follow pin numbering.
  • Compact Design: Small and space-saving, easy to integrate into Raspberry Pi projects.
  • High-Quality Construction: Durable materials for long-lasting use; resistant to environmental factors.
  • High Brightness and Good Mixed Color: Ensures visually appealing displays, antistatic, resistant to humidity, heat, cold, and corrosion.

Specifications

  • Item Type: Module
  • Dot Matrix Type: 8x8 Common Shade Red Dot Matrix
  • Module Size: Approx. 64.3 x 35 x 26.5mm / 2.5 x 1.4 x 1.0in

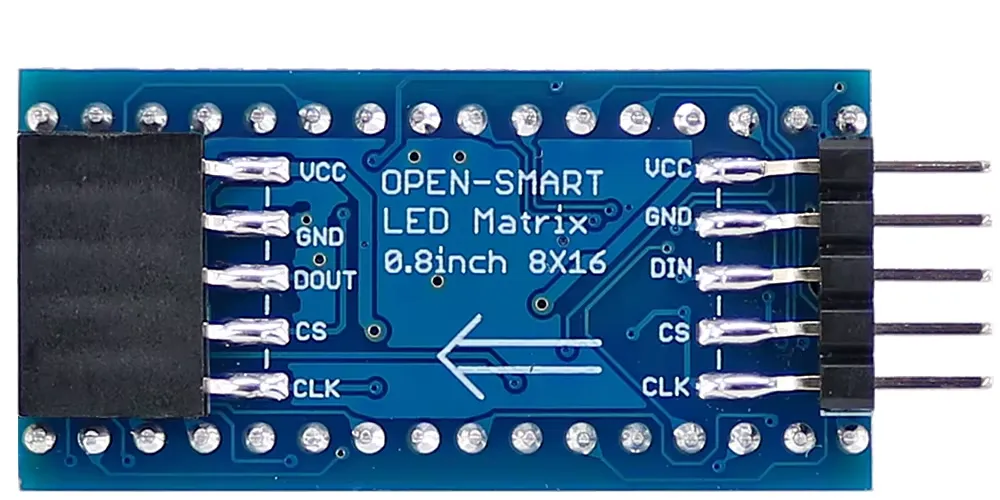

Pinout

The Matrix Dot Module 2 In One Display uses the Raspberry Pi SPI interface (3 IO + 2 enabled), requiring only five pins of the Raspberry Pi for control.
