DC-DC Boost Converter Step Up Power 05KJ Module 200W 7A 6-35V to 6-55V High Power With Aluminum Case

DC-DC Boost Converter Step Up Power 05KJ Module 200W 7A 6-35V to 6-55V High Power With Aluminum Case

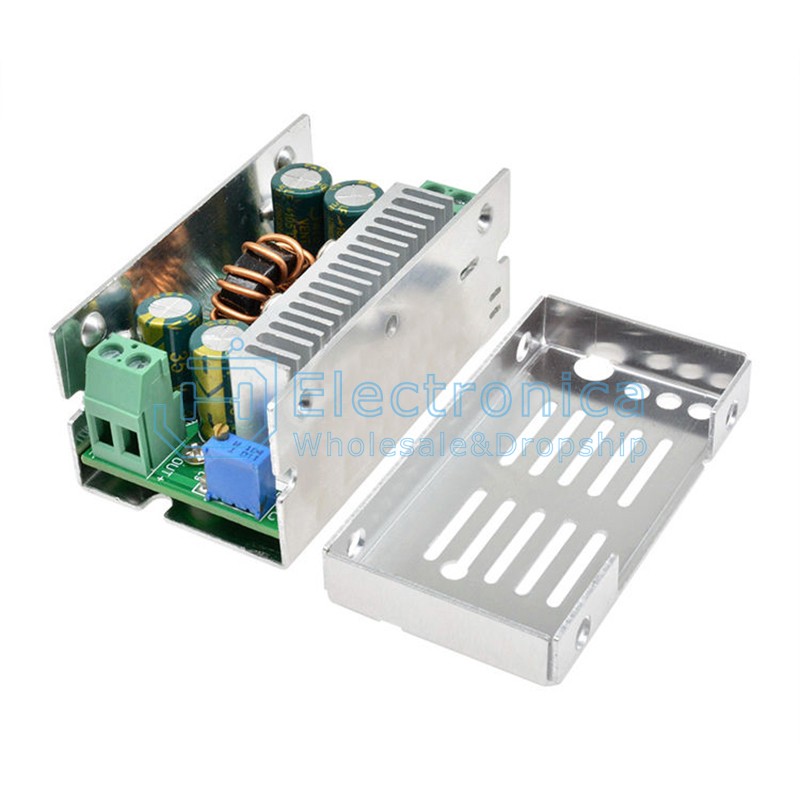

This 200W DC-DC Step-Up Power Supply Module is a high-performance boost converter designed for powering electrical equipment, digital products, laptops, and other high-power applications. It features a robust aluminum enclosure with a large integrated heat sink to ensure excellent heat dissipation and reliable long-term operation. The module uses screw terminal input and output connections, making wiring quick, secure, and convenient.

Package Includes

  • 1 × 200W DC-DC Step-Up Power Supply Module (with Aluminum Case)
Boost Converter
61.95 AED 61.95 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

  • High-power DC-DC boost (step-up) converter module
  • Screw terminal input and output for easy wire connection
  • High conversion efficiency up to 97.6%
  • Large heat sink for improved thermal performance
  • Durable aluminum outer case for protection and heat dissipation
  • Suitable for electrical equipment, digital devices, and laptop power systems

Specifications

Parameter Value
Input Voltage DC 6 – 35 V
Output Voltage DC 6 – 55 V (Output ≥ Input)
Maximum Input Current 10 A (Lower recommended for continuous operation)
Maximum Output Current 7 A (Lower recommended for continuous operation)
Maximum Output Power 200 W (Input voltage > 30 V)
Maximum Conversion Efficiency 97.6% (Efficiency depends on input/output voltage and current)
Dimensions 70 × 39 × 32 mm (2.75 × 1.53 × 1.26 in)
