DC-DC Boost Step Up Board Module AAA Battery 5V For LilyPad

DC-DC Boost Step Up Board Module AAA Battery 5V For LilyPad

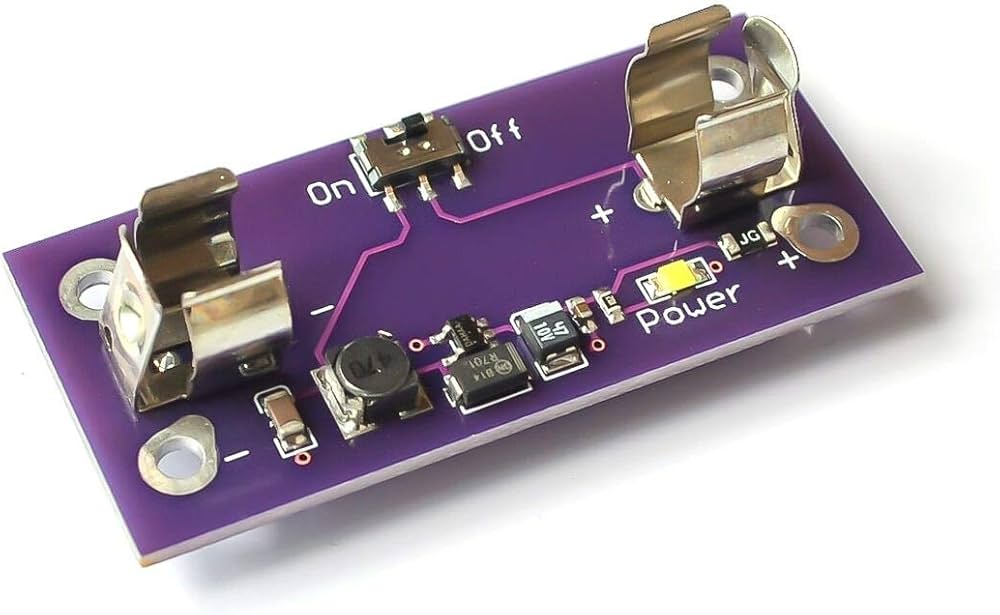

LilyPad is a useful and versatile platform designed for sewable and wearable electronics. It can be sewn directly onto clothes bags or any fabric that can be stitched easily. The LilyPad Power Supply module includes a built in AAA battery holder a step up voltage regulator and an on off switch. This design allows the LilyPad system to be powered using a single AAA battery while providing a stable 5V output. The board is compact lightweight and designed to be discreet when integrated into wearable projects.

Package Includes

  • 1 x LilyPad Power Supply board

Battery not included

Boost Converter
19.95 AED 19.95 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • Sewable power supply for LilyPad projects
  • Built in AAA battery compartment
  • Integrated step up voltage regulator
  • On off power switch included
  • Provides stable 5V output
  • Supports current up to 200mA
  • Short circuit protection
  • Compact and low profile design
  • Washable when battery is removed
  • Compatible with a wide range of LilyPad modules

Specifications

  • Supply voltage output 5V
  • Input voltage range 1.2V to 5V
  • Maximum output current 200mA
  • Battery type AAA single cell
  • PCB thickness 0.8mm
  • Designed for sewable electronics

There are many additional LilyPad compatible modules available such as LEDs switches battery holders and buttons all designed to be sewable and suitable for wearable electronics projects.

LilyPad Power Supply

LilyPad Power Supply Application
