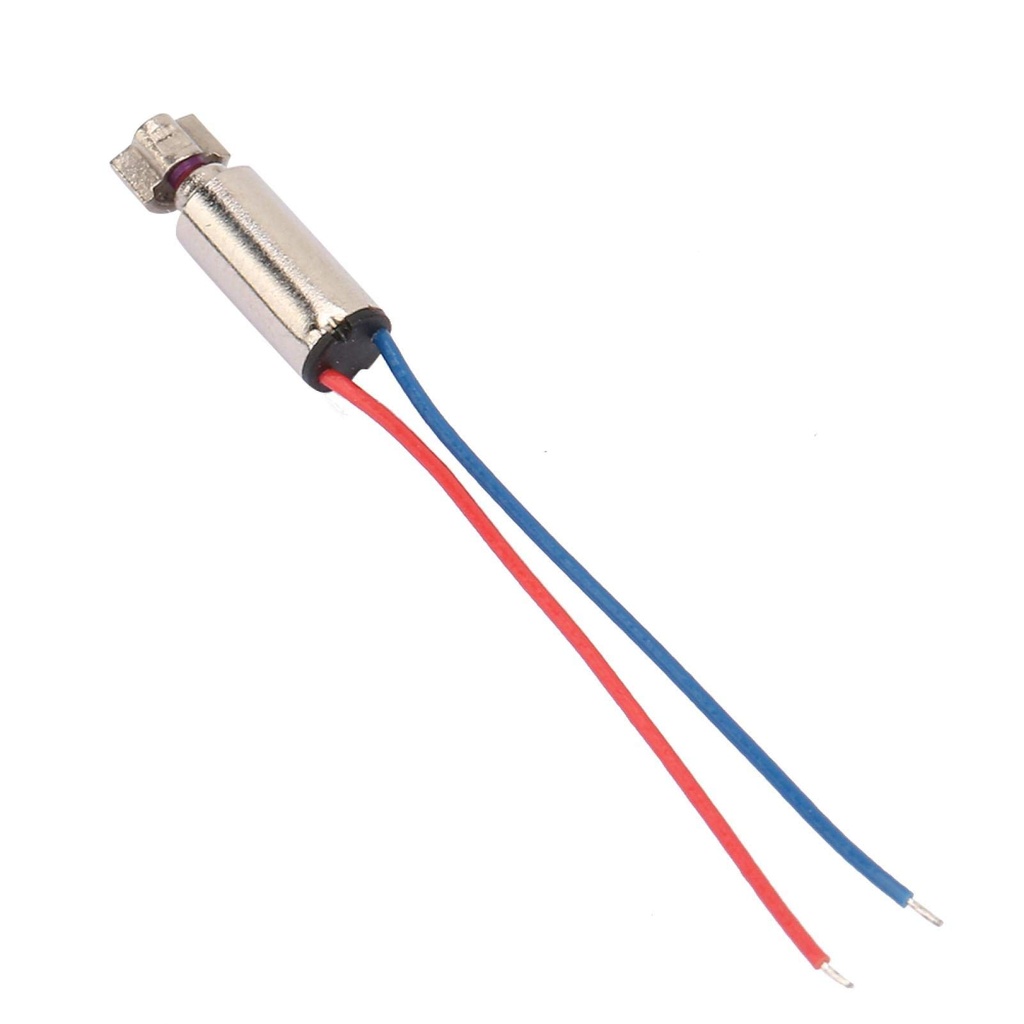

Features:
- Motor Type: Coreless Motor
- Speed: 8000RPM for dynamic and efficient performance
- Compact Design: Overall length of 17 mm (0.67") and body size of 6 x 12 mm (0.24" x 0.47")
- Wire Length: 2 cm (0.8") for flexible connectivity
- Material: Durable metal construction for longevity
- Weight: Lightweight at 5g for easy integration into projects
Specifications:
- Rated Voltage: DC 1.3V
- Speed: 8000RPM
- Overall Length: 17 mm / 0.67"
- Body Size: 6 x 12 mm / 0.24" x 0.47" (D*H)
- Wire Length: 2 cm / 0.8"
- Net Weight: 5g
Arduino Integration:
This motor is a simple 2-pin DC motor. The following Arduino code demonstrates driving it in one direction using a PWM pin for speed control.
// Single direction driving of 2-pin Coreless DC Motor
int motorPin = 9; // Connect one motor wire to PWM pin, other wire to GND
void setup() {
pinMode(motorPin, OUTPUT);
}
void loop() {
// Run motor at half speed
analogWrite(motorPin, 128); // PWM range 0-255
delay(3000);
// Stop motor
analogWrite(motorPin, 0);
delay(1000);
}
Connect one wire of the motor to the PWM pin and the other wire to GND. Adjust analogWrite(motorPin, value) to change speed (0 = stop, 255 = full speed). This code runs the motor in a single direction only.
