ECG Heart Signal Module With Electrodes AD8232

The AD8232 Single Lead Heart Rate Monitor module is a compact and cost effective solution for measuring the electrical activity of the heart. It is designed to acquire, amplify, and filter small biopotential signals, allowing you to easily plot electrocardiograms ECG and monitor heart rate using microcontrollers such as Arduino. The module is well known for its excellent noise reduction capability, providing stable and clear signals even in noisy environments.

Package Includes:

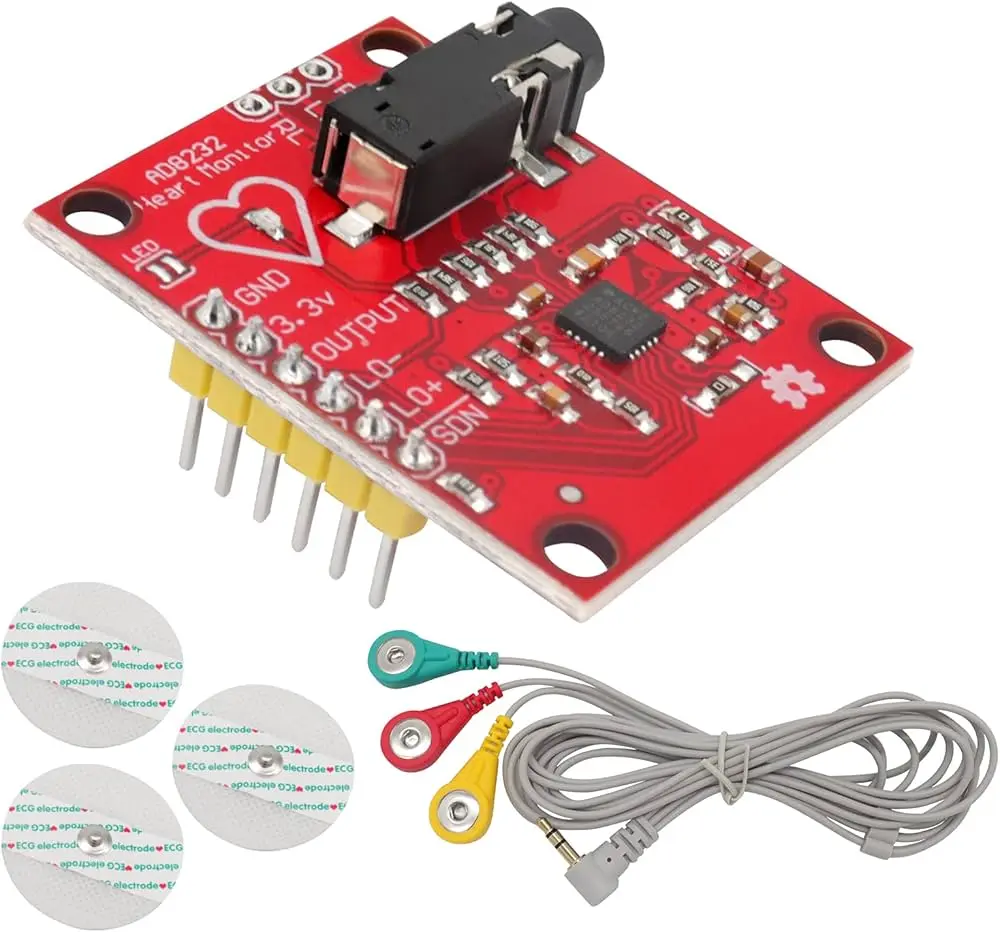

  • 1 x AD8232 ECG Heart Rate Monitor Module
  • 1 x 3-pin ECG electrode cable
  • 3 x Disposable electrode pads
  • 1 x Set of header pins

ECG Heart Rate Sensor
45.00 AED 45.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

  • Integrated signal conditioning block for ECG and biopotential measurements
  • Extracts, amplifies, and filters very small biopotential signals
  • Built in operational amplifier with three pole low pass filter for noise reduction
  • LED indicator for visual heart rhythm detection
  • Breakout pins for easy connection to Arduino and other development boards
  • Supports fitness monitoring, portable ECG devices, and remote health monitoring
  • Suitable for gaming peripherals and bioelectric signal experiments

Specifications

  • Common Mode Rejection Ratio: 80 dB dc to 60 Hz
  • Electrode Configuration: Two or three electrode support
  • Single Supply Operation: 2.0V to 3.5V
  • Board Size: 3.5 cm x 3 cm
  • Rated Temperature Range: 0 to 70 degrees Celsius
  • Working Temperature Range: -40 to 85 degrees Celsius

Pin Configuration

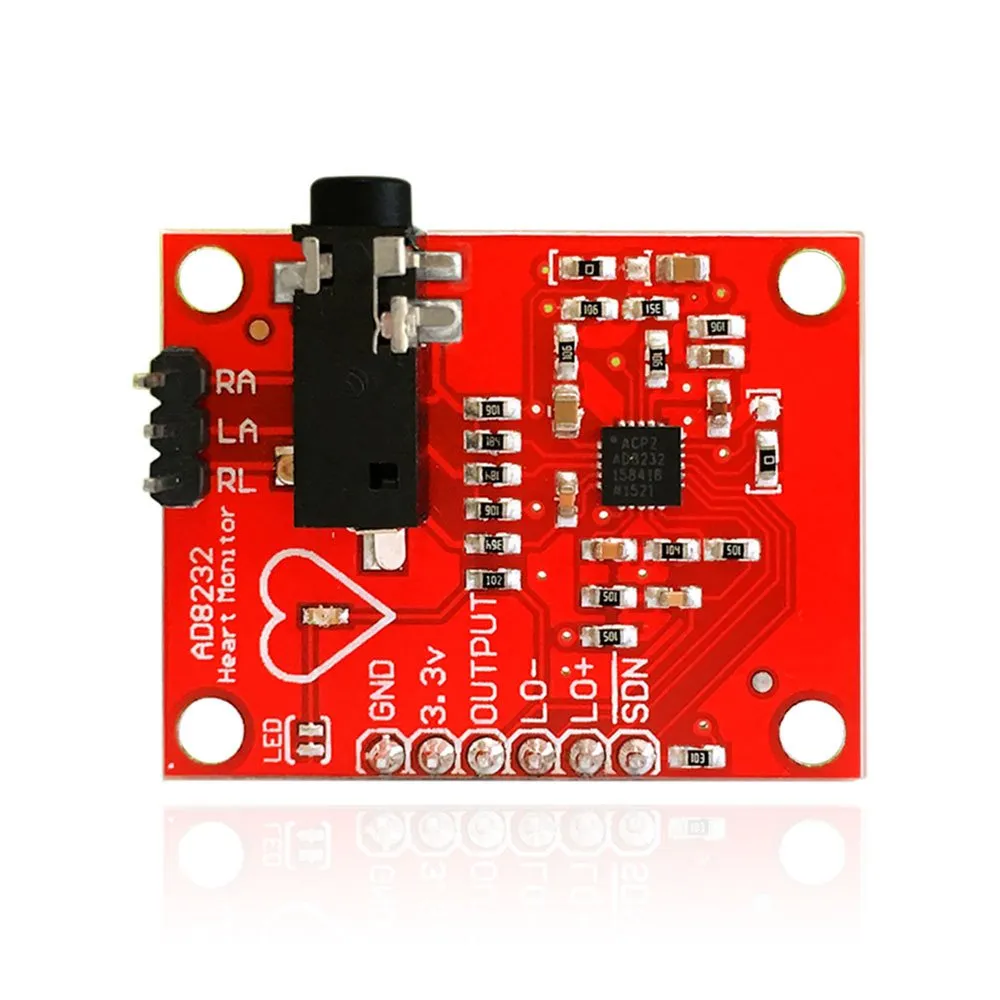

AD8232 ECG Module Pinout

Board Label Pin Function Arduino Connection
GND Ground GND
3.3V 3.3V Power Supply 3.3V
OUTPUT Analog ECG Signal Output A0
LO- Leads Off Detect Negative Digital Pin 11
LO+ Leads Off Detect Positive Digital Pin 10

Arduino Wiring:

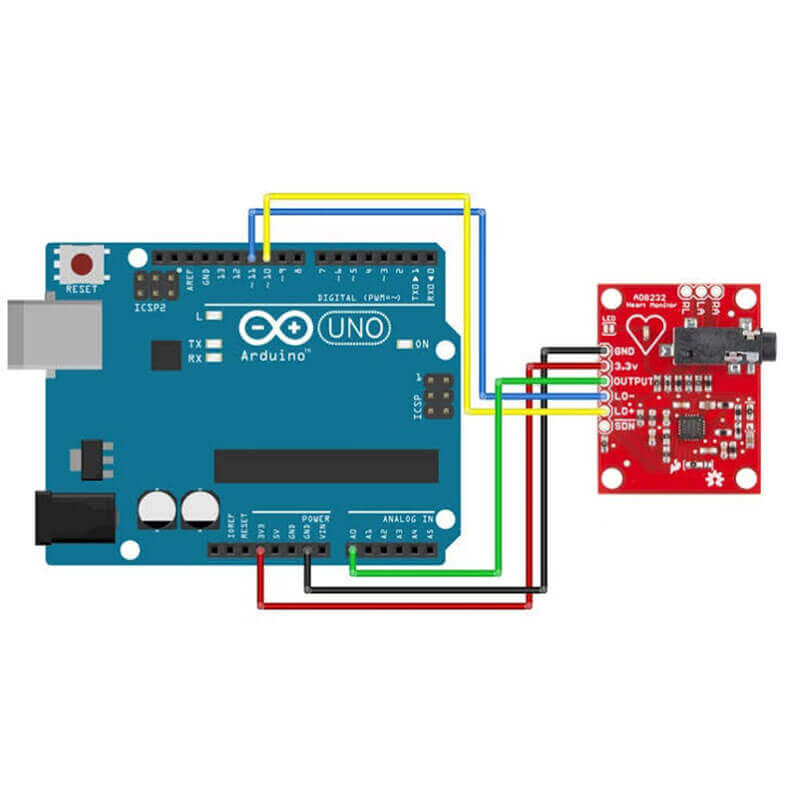

Ecg Signal Ad8232 Electrode Placement AD8232 ECG Heart Monitoring Sensor Module Kit For Arduino

The AD8232 outputs an analog ECG signal that can be read directly using an Arduino analog input pin. The LO+ and LO- pins are used to detect whether the electrodes are properly connected to the body. If an electrode is disconnected, these pins will go HIGH.


// AD8232 ECG Sensor Simple Arduino Code

const int ecgPin = A0;
const int loPlus = 10;
const int loMinus = 11;

void setup() {
  Serial.begin(9600);
  pinMode(loPlus, INPUT);
  pinMode(loMinus, INPUT);
}

void loop() {
  if ((digitalRead(loPlus) == 1) || (digitalRead(loMinus) == 1)) {
    Serial.println("Leads Off");
  } else {
    int ecgValue = analogRead(ecgPin);
    Serial.println(ecgValue);
  }
  delay(5);
}

This code continuously reads the ECG signal from the AD8232 module and sends the data to the Serial Monitor or Serial Plotter. For best visualization, use the Arduino Serial Plotter and ensure proper electrode placement on the body.

Applications

  • Heart rate monitoring systems
  • Portable ECG devices
  • Fitness and health tracking projects
  • Remote medical monitoring
  • Bioelectric signal experiments
  • Educational and research projects
