Features

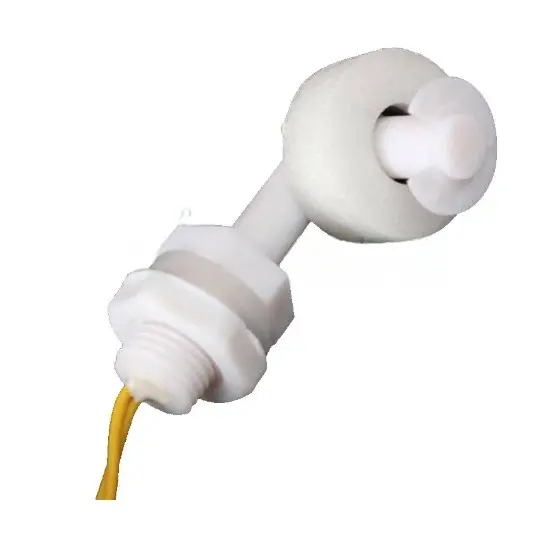

- Plastic float type water level switch
- Suitable for liquid level detection
- Normally closed or normally open operation
- Mechanical contact output
- Can be used with 12V 24V 110V and 220V systems
- Reliable and simple structure
- Suitable for tanks reservoirs and water systems
Specifications
- Model Plastic Float Switch
- Material PP
- Size ZP4510
- Wire length 1 meter
- Operating voltage up to 220V
- Voltage options 12V 24V 110V 220V
- Mode Normally Closed or Normally Open
- Normally open type requires customization and 3 to 5 days
- 100V wire color yellow
- 220V wire color red
- Do not exceed rated voltage
- Do not test with LED lamps
- Use incandescent lamp for testing
- Contact type mechanical contact
Electrical Ratings
| Parameter | 1A1 | 2A1 |
|---|---|---|
| Max contact rating | 10W | 50W |
| Max switching voltage | 100VDC | 220VDC |
| Max switching current | 0.5A | 1.5A |
| Max breakdown voltage | 220VDC | 300VDC |
| Max wear resistance | 1.0A | 3.0A |
| Max contact resistance | 100 milliohm | 100 milliohm |
| Temperature rating | Minus 10 to plus 85 degree Celsius | |
| Float ball material | PP | |
| Float body material | PP plus glass fiber | |
Size Information

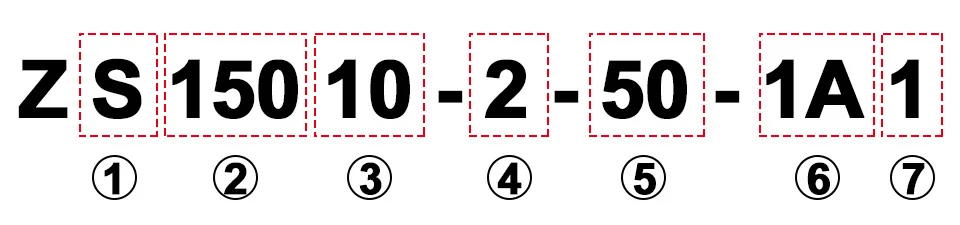

Structure Description
- S Whole stainless steel
- SL Stainless steel pipe bend side mount
- P Whole PP plastic
- PC Plastic side mounted
- SC Stainless steel side mounted
- SP Stainless steel pipe with PP float ball
- PS PP pipe with stainless steel float ball
- Installed length inside the tank
- Thread diameter
- Two balls two switch points or one ball two switch points
- Distance between two float balls
- 1A rated 100V 10W
- 2A rated 200V 50W
- Normally closed or normally open

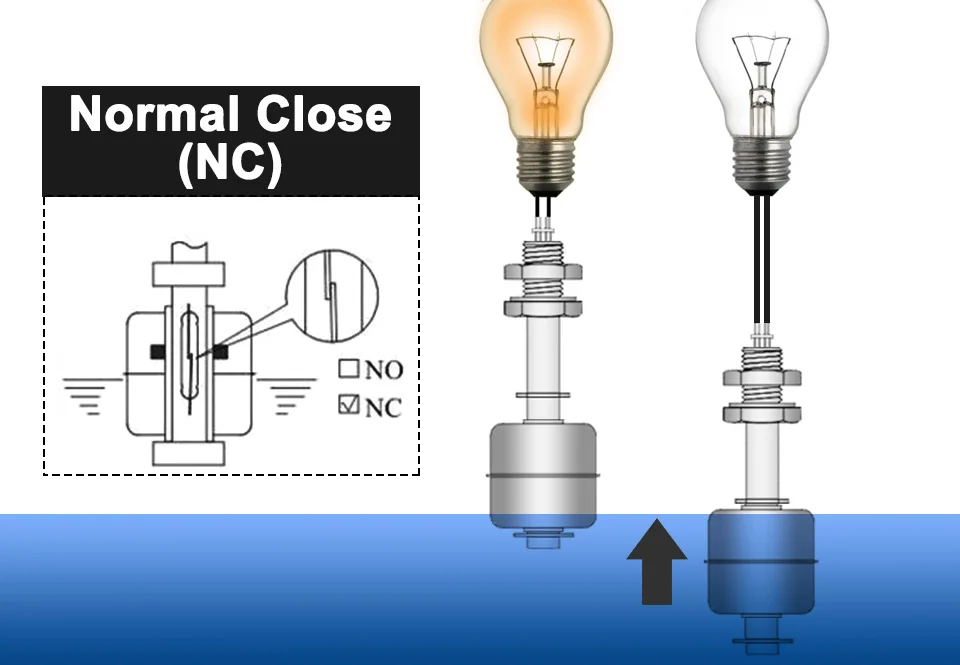

Normally Closed Operation
During low water level the switch is connected. When the water level increases the switch is disconnected.
Normally Open Operation
During low water level the switch is disconnected. When the water level increases the switch is connected.

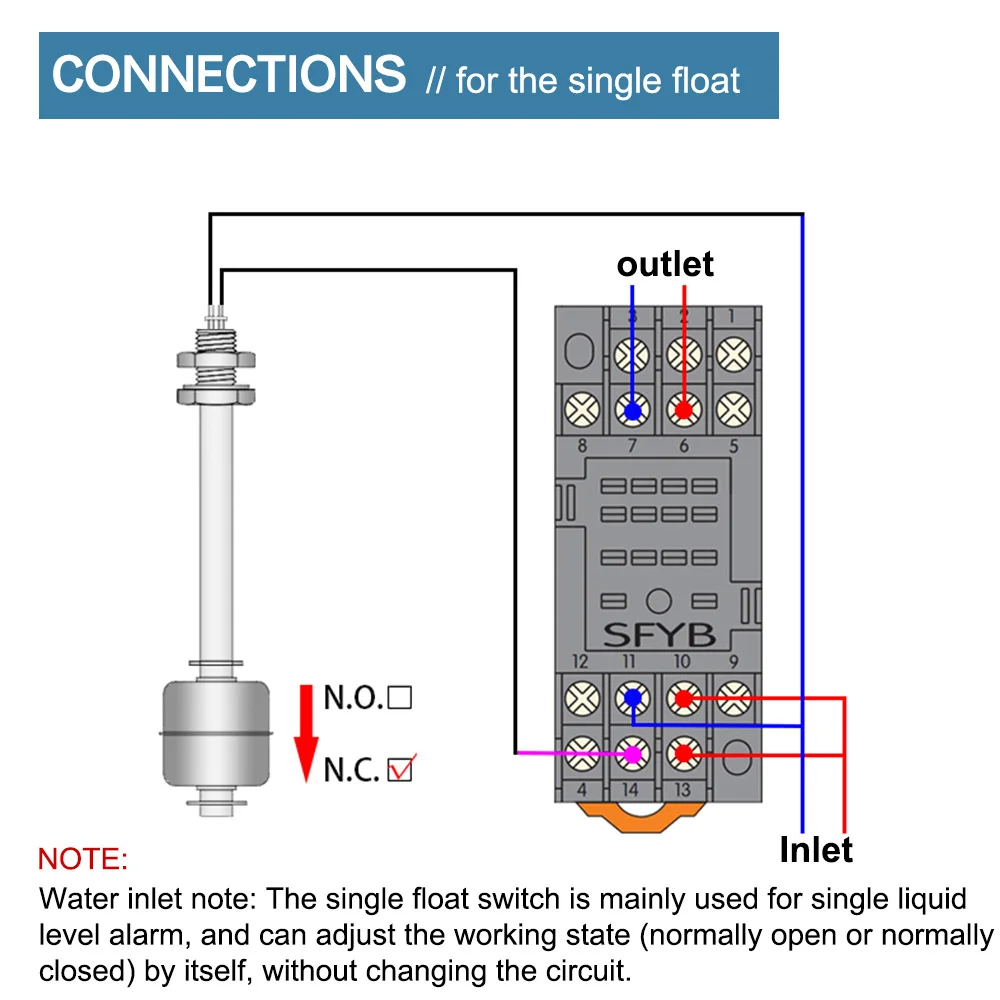

Wire Connection
Contact Types
