LED Circle Quarter RGB Duinopeak 5V 15Bit WS2812 5050 RGB LED Board

LED Circle Quarter RGB Duinopeak 5V 15Bit WS2812 5050 RGB LED Board

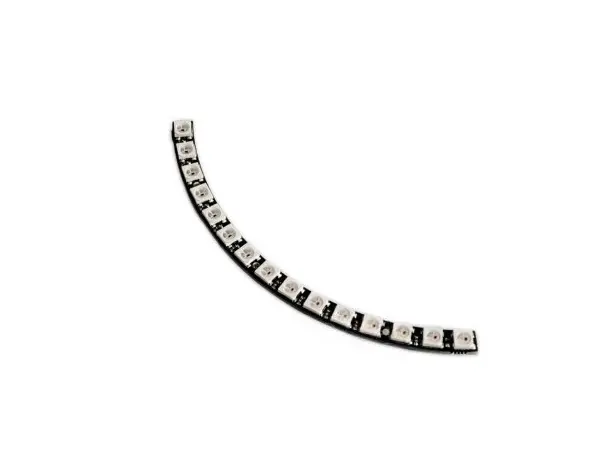

This WS2812B LED Ring features 15 individually addressable RGB LEDs arranged in a quarter-circle configuration. The control circuit and RGB chip share the same power source and are integrated into 5050 packages, providing full control over each pixel. With built-in signal reshaping and power-loss reset circuits, this LED ring ensures reliable cascading without waveform distortion.

Package Includes

  • 1 x Quarter Light Circle (WS2812B 15-LED module)


LED RGB WS2812
19.95 AED 19.95 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • Integrated control circuit and WS2812B RGB chips in 5050 package.
  • Built-in signal reshaping circuit to prevent waveform distortion when cascading.
  • Built-in electric reset and power-loss reset circuits.
  • Each pixel supports 256 brightness levels for red, green, and blue channels, allowing 16,777,216 color combinations.
  • Scan frequency not less than 400Hz/s.
  • Voltage: DC 4-7V, standard 5V recommended.
  • Single-line communication for easy digital control.
  • Compatible with Arduino and Raspberry Pi platforms.

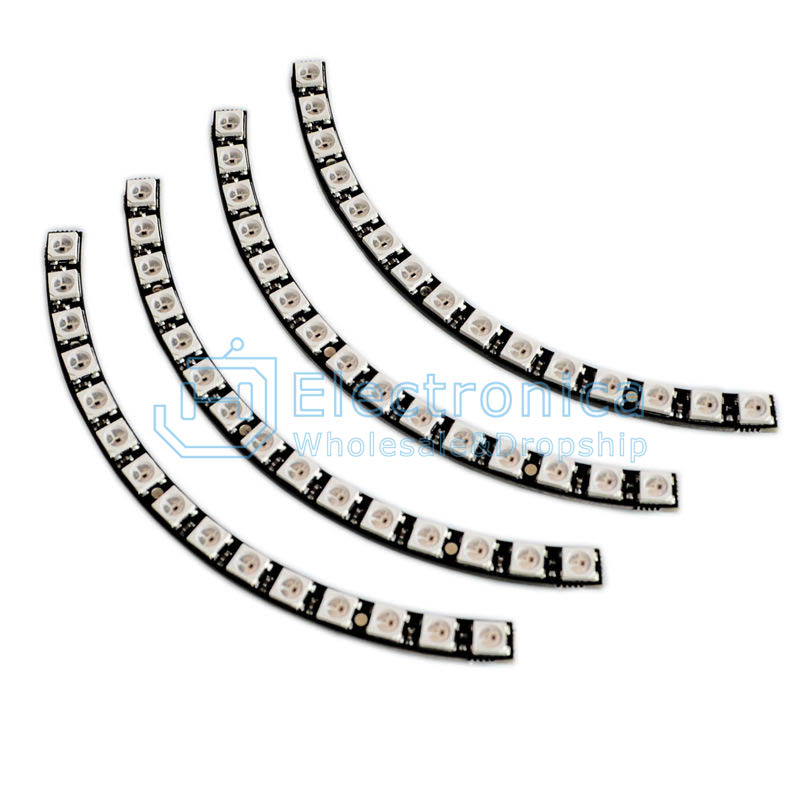

  • Quarter ring consists of 4 solderable pieces; pegs included for assembly.
  • Can be chained for larger displays using only 1 data pin.

Technical Specifications

  • LED Driver: WS2812B (built-in)
  • LED Type: 5050 RGB
  • Number of LEDs: 15
  • Voltage: DC 4-7V (5V recommended)
  • Color: Full RGB
  • Communication: Single-line digital
  • Frequency: ≥ 400Hz
  • Quarter ring design; four modules must be soldered together

Pinout

RGB LED Ring, Akozon LED Ring Lamp Ring Light LED Driver Development Board 1pc 24-Bit WS2812 5050 RGB Light with Integrated Drivers : Amazon.co.uk: Lighting

Pin Description
VCC Power supply (+5V recommended, 4-7V acceptable)
GND Ground
DIN Data input, connect to Arduino digital pin
DOUT Data output, connect to DIN of next module for cascading

Arduino Wiring

  • VCC → 5V on Arduino
  • GND → GND on Arduino
  • DIN → Digital Pin 6 (example) on Arduino
  • DOUT → Connect to DIN of next module if chaining

Arduino Example Code

Uses the Adafruit NeoPixel Library.

#include <Adafruit_NeoPixel.h>

#define LED_PIN    6
#define NUM_LEDS   15

Adafruit_NeoPixel strip(NUM_LEDS, LED_PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin();
  strip.show(); // Initialize all pixels to 'off'
}

void loop() {
  // Simple color wipe animation
  for(int i=0; i < NUM_LEDS; i++) {
    strip.setPixelColor(i, strip.Color(255, 0, 0)); // Red
    strip.show();
    delay(100);
    strip.setPixelColor(i, strip.Color(0, 0, 0)); // Off
  }
}

Installation of Library

To install the Adafruit_NeoPixel library:

  1. Open Arduino IDE → Sketch → Include Library → Manage Libraries.
  2. Search for Adafruit NeoPixel.
  3. Click Install.
  4. Alternatively, download ZIP from GitHub and install via Sketch → Include Library → Add .ZIP Library.

Technical Specifications

  • LED Driver: WS2812B (built-in)
  • LED Type: 5050 RGB
  • Number of LEDs: 15
  • Voltage: DC 4-7V (5V recommended)
  • Color: Full RGB
  • Communication: Single-line digital
  • Frequency: ≥ 400Hz
  • Quarter ring design; four modules must be soldered together
