LED Circle Quarter RGB Duinopeak 5V 15Bit WS2812 5050 RGB LED Board

LED Circle Quarter RGB Duinopeak 5V 15Bit WS2812 5050 RGB LED Board

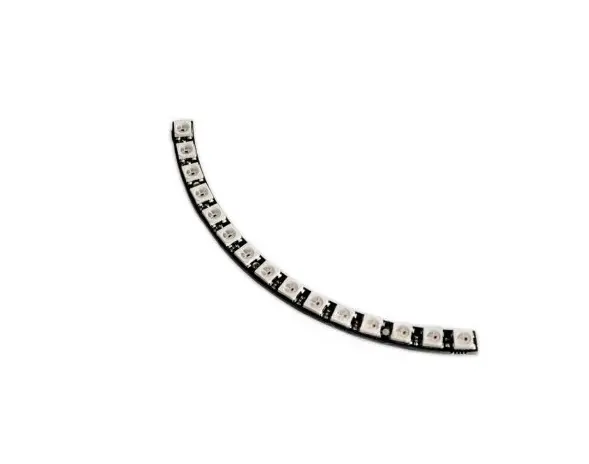

This WS2812B RGB LED Quarter Ring consists of 15 individually addressable RGB LEDs integrated with control circuitry in a 5050 LED package. Designed for vibrant full-color displays, this module enables complex light patterns using just a single data line. It’s perfect for decorative lighting, wearables, and artistic installations.

Package Includes:

  • 1 x WS2812B RGB LED Quarter Ring Module (15 LEDs)

19.95 AED 19.95 AED Tax Included
19.95 AED Tax Included

Not Available For Sale

This combination does not exist.

LED RGB WS2812
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Integrated Control Circuit: Each LED has a built-in WS2812B driver chip and RGB control circuit within a 5050 SMD package.
  • Single Power Supply: The control circuit and LEDs are powered by the same voltage source.
  • Signal Reshaping: Built-in signal reshaping circuit ensures signal integrity through daisy-chaining multiple LEDs without waveform distortion accumulation.
  • Power-on Reset: Includes built-in reset and power-loss recovery circuit.
  • High Color Resolution: Each color channel (R, G, B) supports 256 brightness levels, allowing for 16,777,216 full-color combinations.

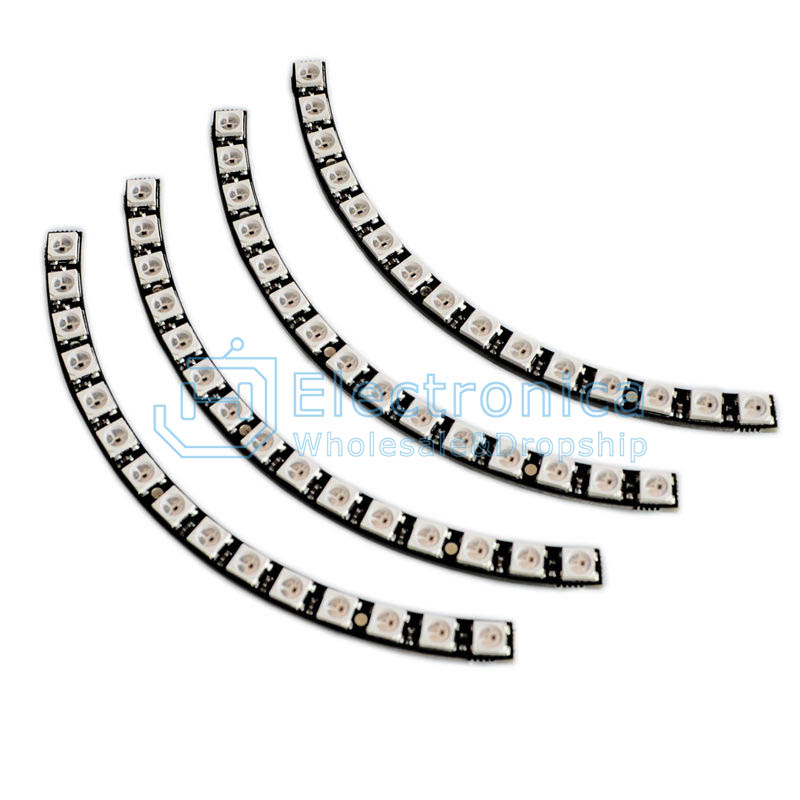

  • Modular Assembly: Composed of four connectable quarter rings (each sold separately), forming a complete 60-LED circle when assembled.
  • Standard 5V Operation: Operates from 4–7V DC, typically powered at 5V.
  • Wide Compatibility: Compatible with Arduino, Raspberry Pi, and other microcontroller platforms.

Specifications:

  • LED Count: 15 RGB LEDs (quarter ring)
  • LED Type: WS2812B (with integrated control circuit)
  • Color Depth: 24-bit (256 levels per color channel)
  • Communication Interface: Single-wire serial communication
  • Operating Voltage: 4V to 7V DC (typical 5V)
  • Update Frequency: ≥400Hz

Pinout:

  • GND: Ground
  • VCC: Power Supply (+5V recommended)
  • IN: Data input from the microcontroller
  • OUT: Data output to the next LED or ring segment

Usage and Assembly:

  • Each quarter-circle module includes solderable pads for connecting VCC, GND, IN, and OUT.
  • Four modules can be joined together using included pegs and soldering to form a full 60-LED ring.
  • Use libraries such as Adafruit NeoPixel (Arduino) or rpi_ws281x (Raspberry Pi) for easy control.

Applications:

  • Wearable electronics
  • Interactive art
  • LED clocks and gauges
  • Light displays and animations
  • Robotics and visual indicators
