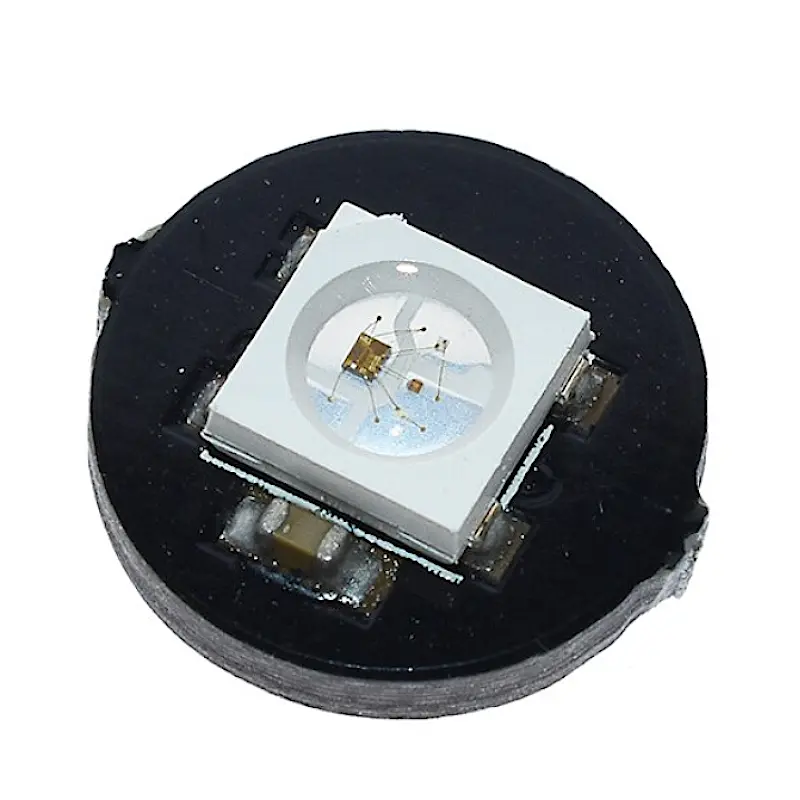

LED is addressable thanks to the integrated WS2812B driver, which provides ~18mA constant current for consistent color regardless of voltage fluctuations. No external resistors are needed, making the module compact and efficient.
This module operates on a 5VDC supply and uses a single data line requiring highly accurate timing. It is best used with real-time microcontrollers like AVR, Arduino, or PIC. It is not compatible with microcomputers running Linux or interpreted platforms like Netduino or Basic Stamp. Supported by the Adafruit NeoPixel library for Arduino (optimized for AVR cores).
Specifications:
- Supply Voltage: 5 VDC
- Current Rating: ~20mA
- Control: Single data line, timing-sensitive protocol
- Driver Chip: WS2812B
- Number of LEDs: 1
- Module Size: 14mm (Diameter) × 4mm (Height)
- Weight: 1g
Pinout of the Module:
This module has 4 pins:
- VCC: Power Supply – 5 V
- GND: Ground
- IN: Data input from previous module or microcontroller
- OUT: Data output to next module
LED is addressable thanks to the integrated WS2812B driver, which provides ~18mA constant current for consistent color regardless of voltage fluctuations. No external resistors are needed, making the module compact and efficient.
This module operates on a 5VDC supply and uses a single data line requiring highly accurate timing. It is best used with real-time microcontrollers like AVR, Arduino, or PIC. It is not compatible with microcomputers running Linux or interpreted platforms like Netduino or Basic Stamp. Supported by the Adafruit NeoPixel library for Arduino (optimized for AVR cores).
Specifications:
- Supply Voltage: 5 VDC
- Current Rating: ~20mA
- Control: Single data line, timing-sensitive protocol
- Driver Chip: WS2812B
- Number of LEDs: 1
- Module Size: 14mm (Diameter) × 4mm (Height)
- Weight: 1g
Pinout of the Module:
This module has 4 pins:
- VCC: Power Supply – 5 V
- GND: Ground
- IN: Data input from previous module or microcontroller
- OUT: Data output to next module
