LED Circle RGB 8Bit LED WS2812 Ring (NEOPIXEL Compatible)

LED Circle RGB 8Bit LED WS2812 Ring (NEOPIXEL Compatible)

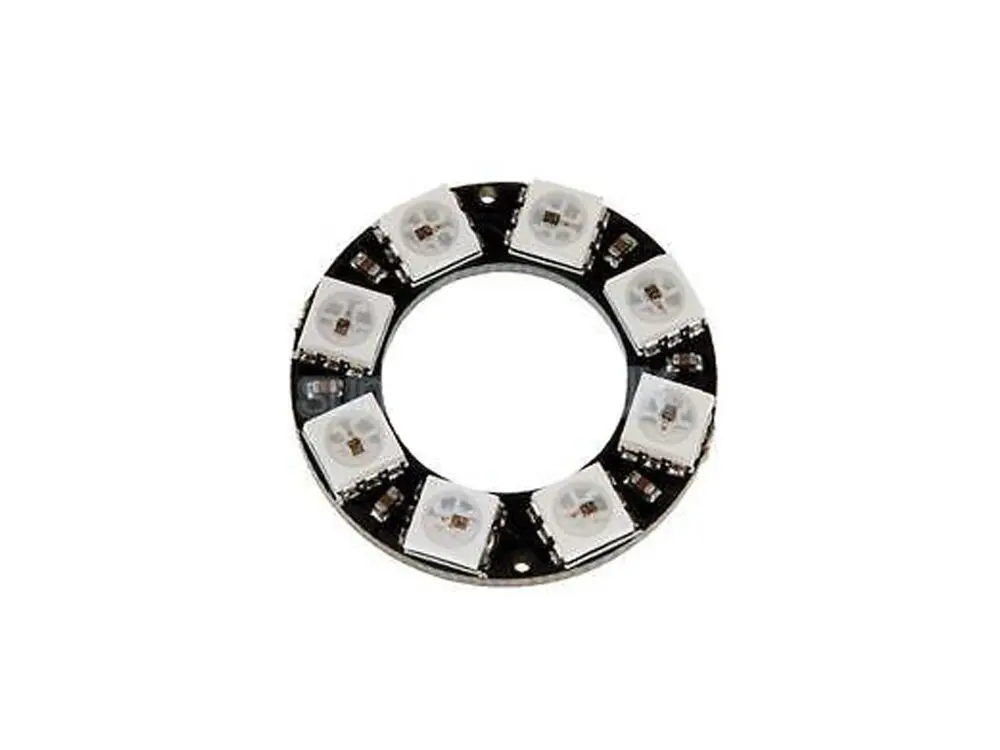

The 8Bit WS2812B RGB LED Ring Module features eight individually addressable RGB LEDs arranged in a circular layout. Controlled by a single data pin, this module is ideal for projects requiring colorful visual feedback with minimal wiring. It is compatible with microcontrollers like Arduino and can be powered with a standard 5V supply.

Package Includes:

  • 1 x 8Bit LED RGB WS2812B Ring Module

15.75 AED 15.75 AED Tax Included
15.75 AED Tax Included

Not Available For Sale

This combination does not exist.

LED RGB WS2812
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Individually Addressable LEDs: Each of the 8 RGB LEDs can be controlled independently using a single microcontroller pin.
  • WS2812B Controller: Integrated driver IC in each LED enables simple serial control.
  • Compact Circular Design: Outer diameter of 28 mm and inner diameter of 16 mm, with evenly spaced LEDs around the ring.
  • Chaining Support: Includes input and output pins for daisy-chaining multiple rings.
  • Low Power Consumption: Each LED draws approximately 18 mA, totaling around 150 mA when all are fully lit.

Specifications:

  • Supply Voltage: 5V
  • Current Consumption: 18 mA per LED (total approx. 150 mA for 8 LEDs)
  • LED Type: WS2812B RGB
  • Number of LEDs: 8
  • Outer Diameter: 28 mm
  • Inner Diameter: 16 mm

Pinout of the Module:

  • GND: Ground connection
  • VCC: +5V power supply
  • IN: Digital control signal from the microcontroller
  • OUT: Data output for chaining to another WS2812B module

Usage Notes:

  • The module communicates via a one-wire protocol compatible with libraries like Adafruit_NeoPixel.
  • Ensure sufficient power supply when chaining multiple rings. The Arduino Uno may face memory limitations when driving more than 500 LEDs.

Applications:

  • LED visual effects
  • Wearables and cosplay
  • Clocks and indicators
  • Decorative lighting
  • Microcontroller-based light animations
