LED Circle RGB 40 LED NEOPIXEL Compatible WS2812 5050 Board

LED Circle RGB 40 LED NEOPIXEL Compatible WS2812 5050 Board

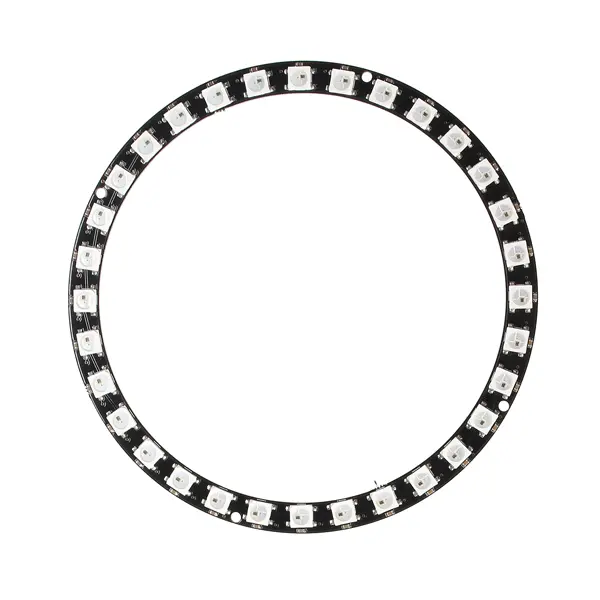

The 32-Bit WS2812 5050 RGB LED Circle Board (Outer Diameter: 126 mm, Inner Diameter: 108 mm) is a precision-engineered circular lighting module featuring 32 individually addressable RGB LEDs. Each LED integrates a WS2812 driver IC within the 5050 package, enabling full pixel-level control over color and brightness. The board is designed for reliable, high-speed digital control, with advanced signal integrity features, intelligent protection circuits, and seamless cascading capabilities. Ideal for decorative lighting, wearable electronics, status indicators, and complex embedded projects, it combines high performance with cost-effective design.

Package Includes

1 × 32-Bit WS2812 5050 RGB LED Circle Board


LED RGB WS2812
44.10 AED 44.10 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • 32 individually addressable RGB LEDs arranged in a circular layout.
  • Integrated WS2812 driver IC inside each 5050 LED for full pixel control.
  • Intelligent reverse polarity protection prevents damage if power is connected backwards.
  • Control circuit and LEDs share a single power source.
  • Built-in signal reshaping ensures waveform integrity without distortion accumulation.
  • Built-in electric reset and power loss reset circuits.
  • Each pixel supports 256 brightness levels per RGB channel (16,777,216 colors).
  • Scan frequency ≥ 400Hz for smooth animations.
  • Single-line cascading data transmission port, capable of 5m signal transmission without amplification.
  • Supports cascading of at least 1024 pixels at 30fps refresh rate.
  • Data transmission speed: 800 Kbps.
  • Highly consistent color output with cost-effective design.

Specifications

  • Operating Voltage: 5V DC
  • LED Type: 5050 RGB with integrated WS2812 IC
  • Number of LEDs: 32
  • Outer Diameter: 126 mm
  • Inner Diameter: 108 mm
  • Brightness Resolution: 256 levels per color
  • Color Depth: 24-bit (16,777,216 colors)
  • Scan Frequency: ≥ 400Hz
  • Communication Interface: Single-wire digital
  • Data Transmission Speed: 800 Kbps
  • Cascading: Supports ≥ 1024 pixels at 30fps

Pinout

  • GND – Ground connection
  • VCC – 5V power supply
  • IN – Digital data input from microcontroller
  • OUT – Digital data output for cascading modules

Arduino Wiring

  • VCC → 5V on Arduino
  • GND → GND on Arduino
  • DIN → Digital Pin (example: D6)
  • DOUT → Optional cascading output

Arduino Example Code

#include <Adafruit_NeoPixel.h>

#define LED_PIN    6
#define NUMPIXELS 32
Adafruit_NeoPixel strip(NUMPIXELS, LED_PIN, NEO_GRB + NEO_KHZ800);

#define DELAY_MS 50

void setup() {
strip.begin();
strip.show(); // Initialize all pixels to 'off'
}

void colorWipe(uint32_t color, int wait) {
for (int i = 0; i < strip.numPixels(); i++) {
strip.setPixelColor(i, color);
strip.show();
delay(wait);
}
}

uint32_t Wheel(byte pos) {
if(pos < 85) {
return strip.Color(pos * 3, 255 - pos * 3, 0);
} else if(pos < 170) {
pos -= 85;
return strip.Color(255 - pos * 3, 0, pos * 3);
} else {
pos -= 170;
return strip.Color(0, pos * 3, 255 - pos * 3);
}
}

void rainbowCycle(int wait) {
for(long j=0; j<256*5; j++) {
for(int i=0; i<strip.numPixels(); i++) {
strip.setPixelColor(i, Wheel(((i * 256 / strip.numPixels()) + j) & 255));
}
strip.show();
delay(wait);
}
}

void loop() {
colorWipe(strip.Color(255, 0, 0), DELAY_MS);
colorWipe(strip.Color(0, 255, 0), DELAY_MS);
colorWipe(strip.Color(0, 0, 255), DELAY_MS);
rainbowCycle(20);
}

Applications

  • Decorative and ambient lighting
  • LED animations and circular visual effects
  • Status indicators and dashboards
  • Wearable electronics
  • DIY and embedded projects
