WIFI D1 Mini - Shield Button RobotDYN

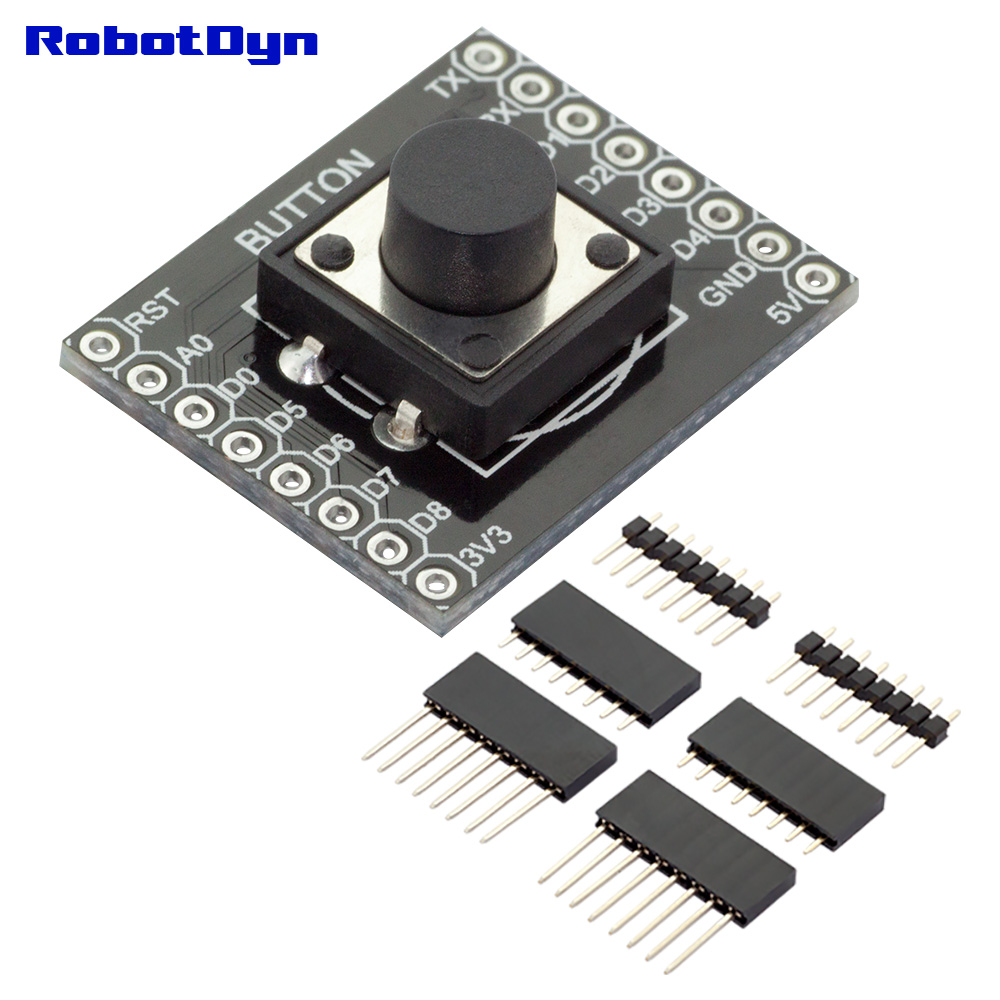

The Button Shield for the WeMos D1 mini PRO is a compact expansion board designed to add a reliable physical push button to your ESP8266 projects. It stacks directly onto the D1 mini PRO and provides a simple user input solution for IoT devices, automation systems, and embedded control applications.

Package Includes

  • 1 × Button Shield
Wemos ESP8266 Shield
5.25 AED 5.25 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

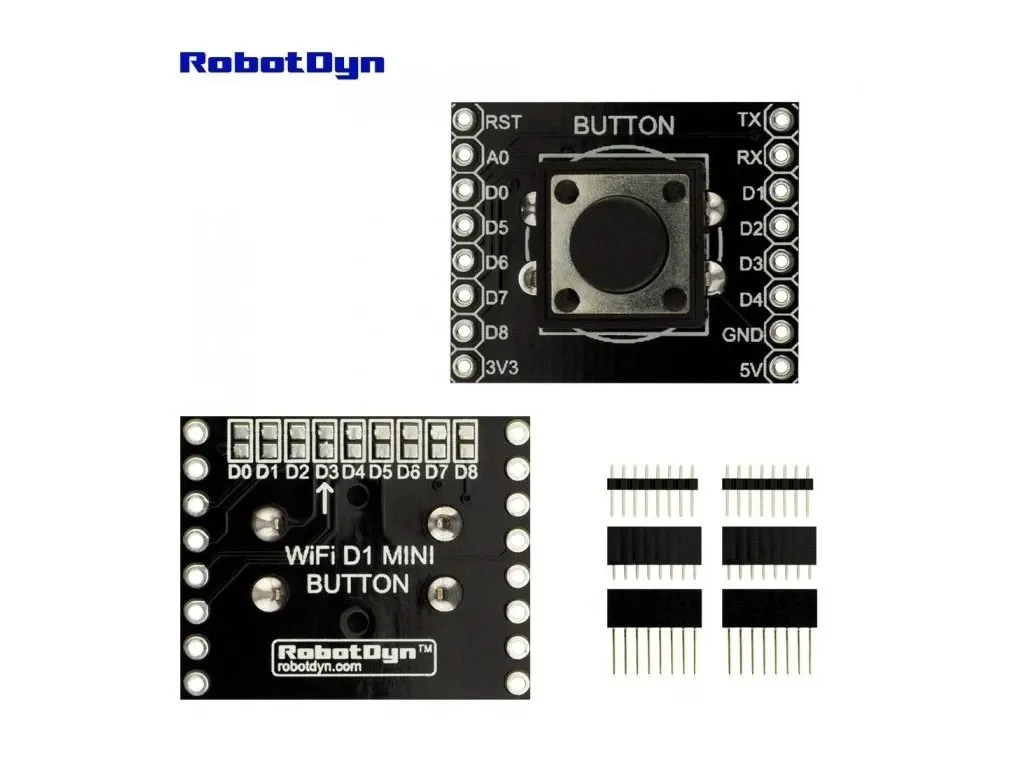

By default, the onboard button is connected to the D3 (GPIO0) pin. If a different GPIO is required, the PCB trace can be cut and re-soldered to another available pad.

Features

  • Designed for WeMos / WiFi D1 mini PRO
  • Onboard tactile push button
  • Default connection to D3 (GPIO0)
  • GPIO reassignment possible via PCB modification
  • Stackable shield format
  • Compact and lightweight design

Specifications

  • Operating Voltage: 3.3V (from D1 mini PRO)
  • Default Signal Pin: D3 (GPIO0)
  • Interface Type: Digital input
  • Mounting Type: Stackable headers
  • Board Compatibility: WeMos / WiFi D1 mini PRO (ESP8266)
