Logic Level Converter (Bi-Direction) RobotDYN

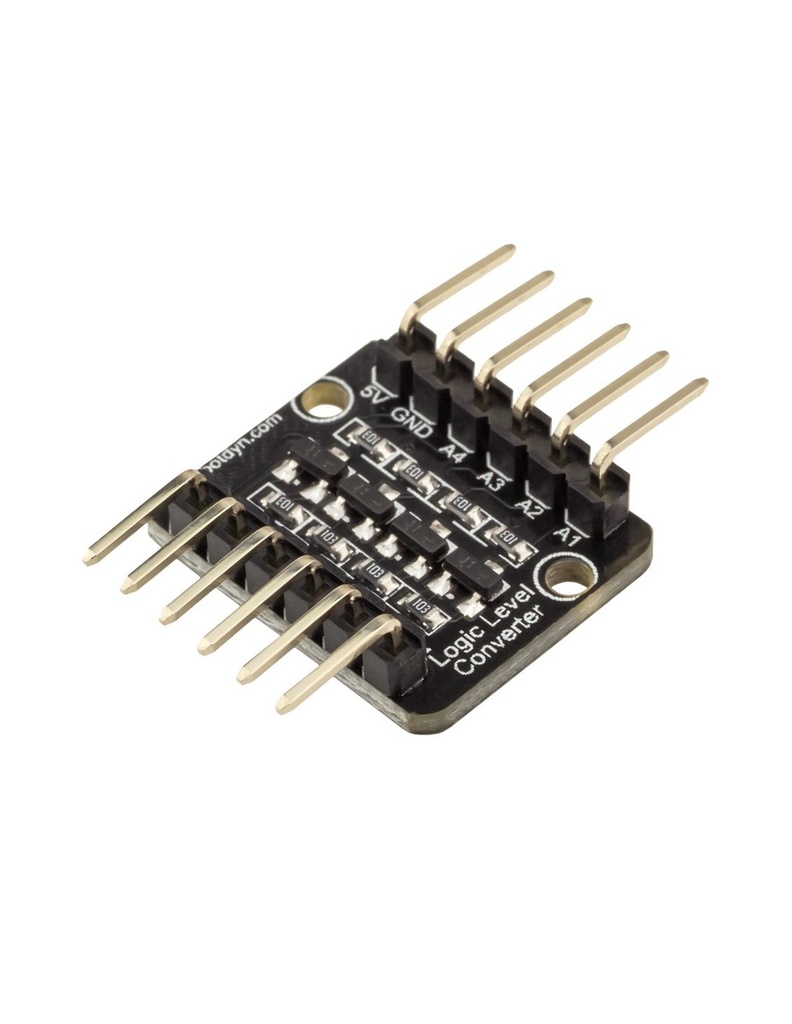

The RobotDyn Logic Level Converter is a compact and efficient module designed to enable safe communication between devices operating at different logic voltage levels. It allows seamless signal translation between low-voltage and high-voltage systems, making it ideal for mixed-voltage microcontroller and sensor applications. With four independent high-speed bi-directional channels, this converter ensures stable and reliable data transfer for a wide range of digital communication protocols.

Package Includes

  • 1 × RobotDyn 4-Channel Logic Level Converter Module
9.45 AED 9.45 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • 4 High-Speed Bi-Directional Channels: Enables fast and reliable signal level shifting.
  • Wide Voltage Compatibility: Supports logic conversion between 1.8V and 5V (both directions).
  • Automatic Direction Control: No need to configure data direction manually.
  • Multi-Interface Support: Compatible with I²C, SPI, TTL serial, and other digital signals.
  • Compact Design: Ideal for breadboards and embedded systems projects.
  • Reliable Manufacturing: Produced by RobotDyn.

Specifications

  • Channels: 4 independent bi-directional channels
  • Low-Side Voltage (LV): 1.8V – 5V
  • High-Side Voltage (HV): 1.8V – 5V
  • Supported Interfaces: I²C, SPI, Asynchronous TTL Serial
  • Logic Direction: Automatic bi-directional
  • Manufacturer: RobotDyn

Pinout

Pin Description
HV High Voltage Reference (e.g., 5V)
LV Low Voltage Reference (e.g., 3.3V)
GND Common Ground
HV1–HV4 High Voltage Signal Channels
LV1–LV4 Low Voltage Signal Channels

Working Principle

The module automatically detects the direction of data flow and shifts voltage levels between the low-voltage and high-voltage sides using internal MOSFET-based circuitry. This allows safe communication between 3.3V and 5V systems without risking damage to sensitive components.

Typical Applications

  • Connecting 3.3V ESP8266/ESP32 to 5V Arduino
  • I²C sensor interfacing
  • SPI device communication
  • TTL serial communication between mixed-voltage systems
  • General digital signal level shifting
