Acrylic Clear & Transparent Box Case Enclosure Transparent For LCD1602 LCD

Enhance the appearance and functionality of your projects with this Transparent Acrylic Shell designed specifically for LCD1602 blue and yellow screen modules. This case holder not only gives your project a sleek and professional look but also provides essential protection against dust, scratches, and minor impacts. It's ideal for electronics projects featuring LCD1602 displays.

Package Includes:

  • 1 x Transparent Acrylic Shell for LCD1602 Display
  • Screws and Nuts for assembly

9.95 AED 9.95 AED Tax Included
9.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days





Features:

  • Transparent Design: Offers full visibility of the LCD screen while ensuring protection.
  • Compatibility: Specifically designed for LCD1602 blue and yellow screen display modules.
  • Easy Assembly: Comes with screws and nuts for hassle-free setup and secure fitting.
  • Enhanced Durability: Protects your LCD module from dust, scratches, and light physical damage.

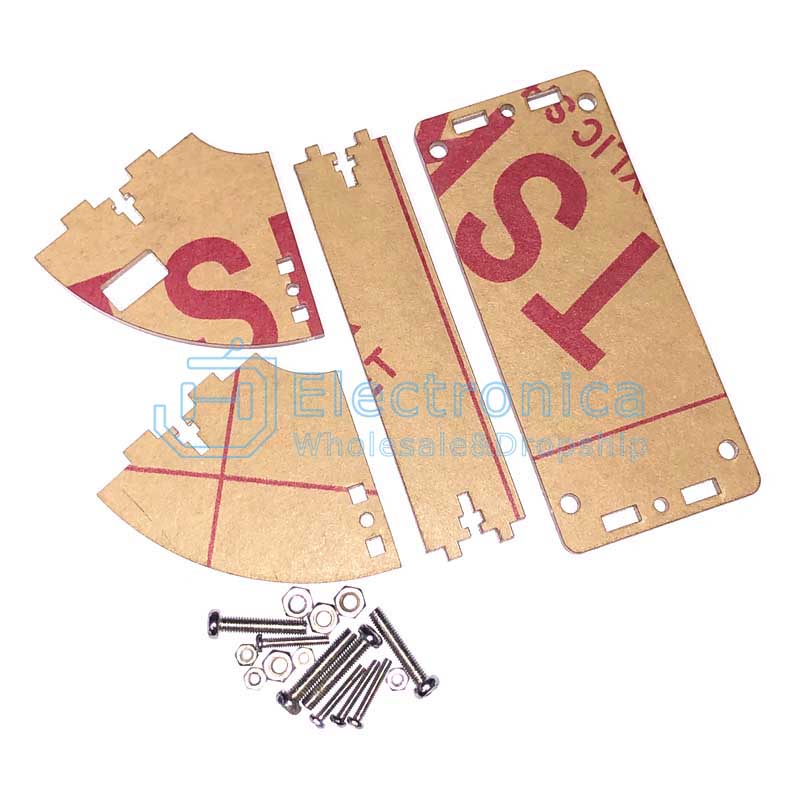

LCD1602 Acrylic Case

Specifications:

  • Material: Transparent Acrylic
  • Display Compatibility: LCD1602 Blue/Yellow Screen
  • Included Accessories: Screws and Nuts for assembly

How to Use:

  1. Assemble: Use the provided screws and nuts to mount the acrylic pieces around your LCD1602 module.
  2. Install: Integrate the assembled shell into your project case or setup while ensuring the display is clearly visible.
  3. Protect: Once installed, the shell offers protection from dust, scratches, and minor bumps without obstructing the display.



Assembled LCD1602 Case



Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
