Signal Generator Module AD9850 DDS Sine Square 0-40MHz Wave

Signal Generator Module AD9850 DDS Sine Square 0-40MHz Wave

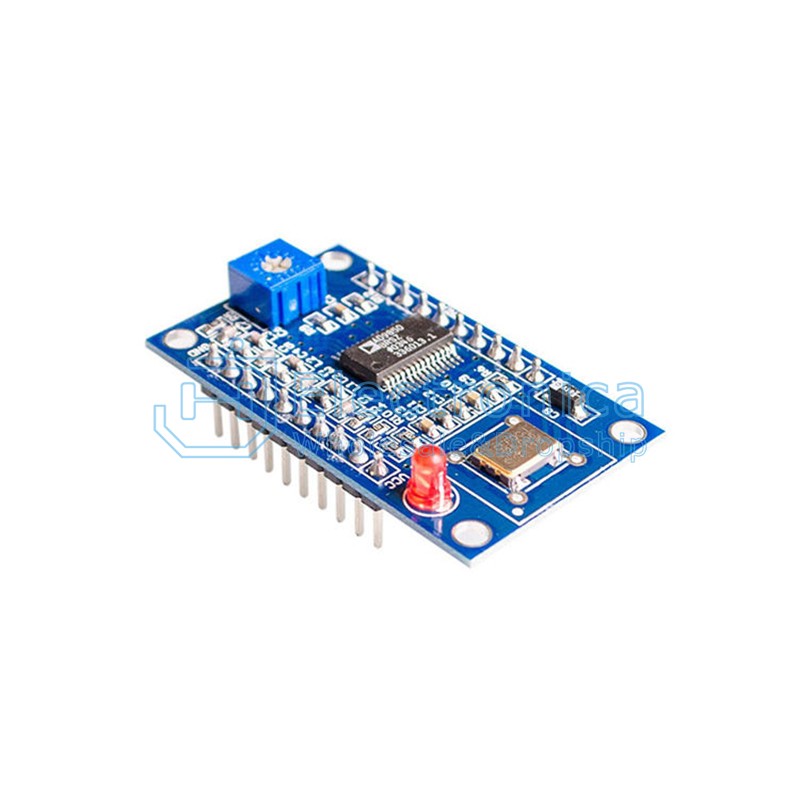

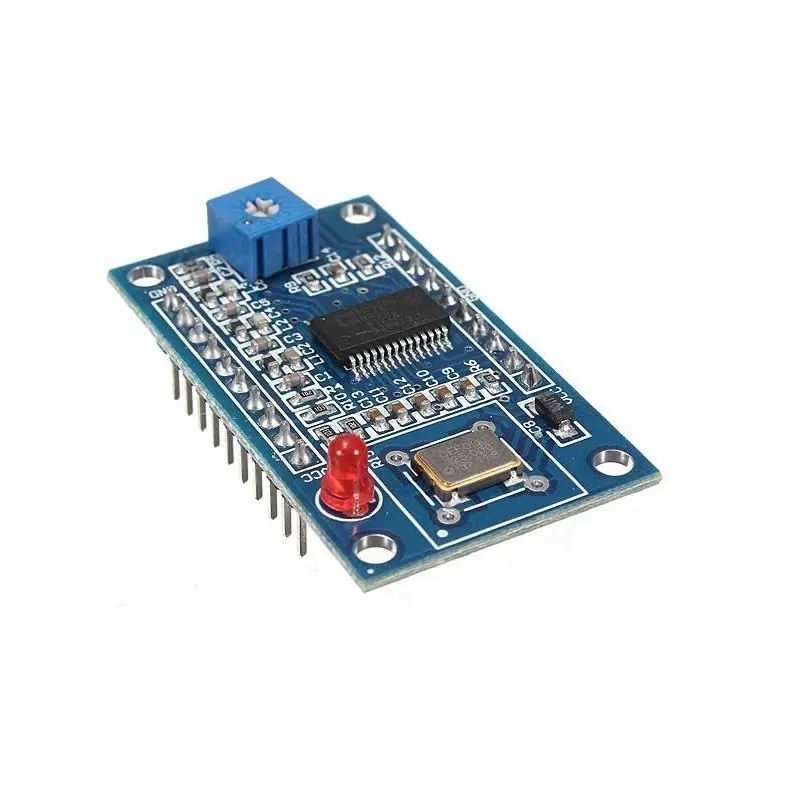

The DDS Signal Generator Module is a powerful and precise waveform generator built around the AD9850 chip from Analog Devices, ideal for electronics enthusiasts and professionals. Capable of producing two sine waves and two square waves, it delivers low-noise, high-quality signals with frequency output up to 70 MHz. Its flexible interface supports both serial and parallel data input, and it integrates seamlessly with Arduino boards for a wide range of hobby or advanced signal processing applications.

Package Includes:

  • 1 x AD9850 DDS Signal Generator Module

103.95 AED 103.95 AED Tax Included
103.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Frequency Range: Up to 70 MHz
  • Waveform Output: 2 Sine Waves, 2 Square Waves
  • Data Input: Serial & Parallel (jumper selectable)
  • Chip: AD9850 (Analog Devices Inc.)
  • Output Stability: High precision and low noise
  • Sine Harmonics: Noticeable above 20–30 MHz
  • Voltage Control: Comparator reference via potentiometer
  • Compatibility: Easily interfaces with Arduino

Features:

  1. Generate two sine and two square waveforms
  2. 70 MHz low-pass filter ensures waveform quality
  3. Jumper-selectable serial/parallel input for flexibility
  4. Uses stable and precise AD9850 chip
  5. Clean sine output up to 30 MHz
  6. Adjustable square wave duty cycle via comparator reference
  7. Simple integration with Arduino using labeled pinout
  8. Wide range of applications from test equipment to RF projects
  9. Low-noise signal with high frequency accuracy

Pinout:

The pin description starts from the left of the potentiometer:

Arduino Pin Module Pin
GND ZOUT2 - Sine 2
– ZOUT1 - Sine 1
– QOUT2 - Square Wave 2
– QOUT1 - Square Wave 1
Pin 11 Reset
Pin 10 Data
Pin 9 FQ_UD
Pin 8 W_CLK
+5V Vcc
