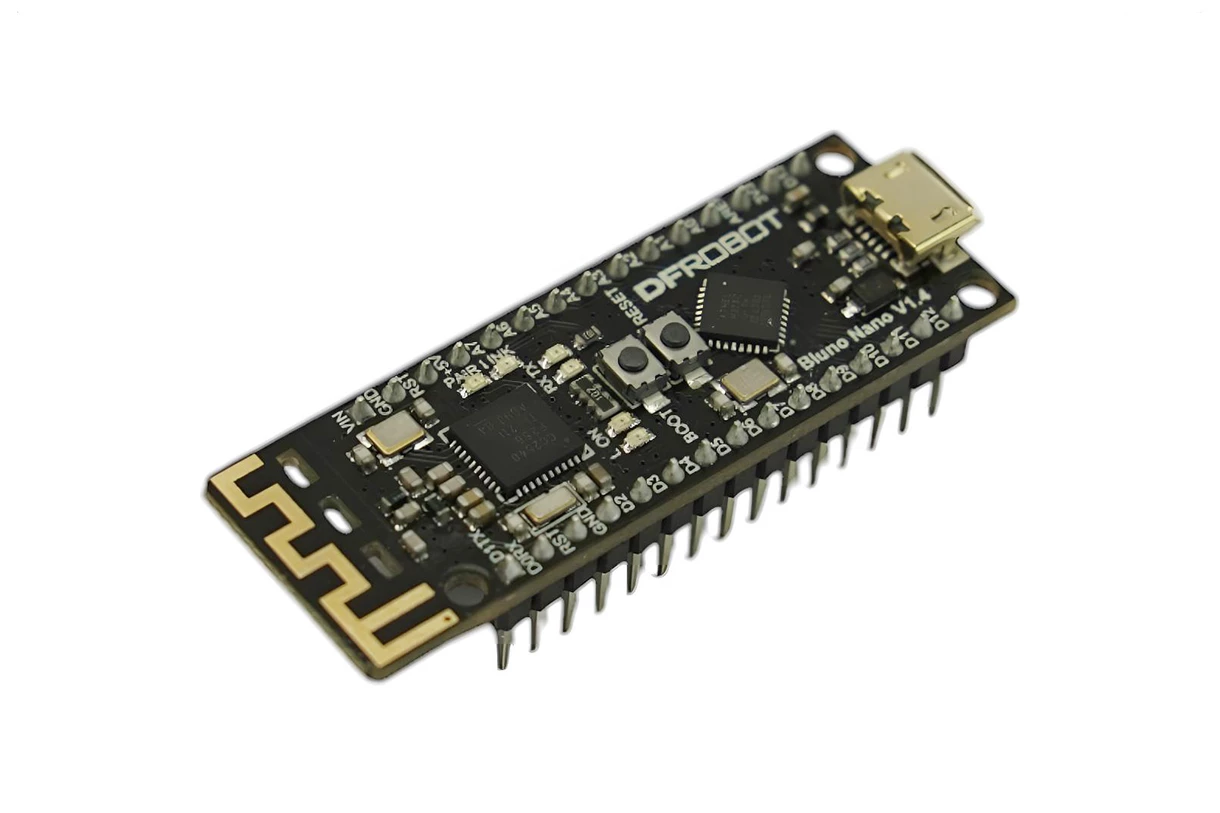

Arduino Bluno Nano - An Arduino Nano with Bluetooth 4.0 DFRobot - DFR0296

The Bluno Nano is an ideal solution for BLE (Bluetooth Low Energy) projects where space and weight are at a premium. As smart technology advances, devices like wristbands, watches, phone-controlled cameras, and smart gardens are becoming increasingly common. The Bluno Nano enables users to create custom smart devices to solve unique problems with tailored solutions.

Integrating a TI CC2540 BT 4.0 chip with the Arduino UNO development board, the Bluno Nano allows for wireless programming via BLE. It supports Bluetooth HID and AT commands for BLE configuration and offers easy BLE firmware upgrades. With compatibility for all Arduino Uno pins, it enables seamless transition of existing Uno projects to wireless. Additionally, an open-source app for both Android and iOS is available, allowing for extensive customization.

For users needing additional I/O ports, the Bluno Nano supports all Arduino-Nano-compatible expansion shields. However, compatibility with other expansion shields may require additional wiring.

Package Includes:

  • 1 x Bluno Nano Board

192.95 AED 192.95 AED Tax Included
192.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features:

  • Wireless programming via BLE
  • Supports Bluetooth HID
  • AT command support for BLE configuration
  • Easy BLE firmware upgrades
  • Compatible with all Arduino Uno pins
  • Open-source app for Android and iOS
  • Compatible with Arduino-Nano-compatible expansion shields

Specifications:

  • On-board BLE chip: TI CC2540
  • Wireless programming via BLE
  • Support for Bluetooth HID
  • AT command configuration for BLE
  • Transparent communication through Serial
  • Upgradeable BLE firmware
  • DC Supply: USB Powered or External 7V~12V DC
  • Microcontroller: Atmega328
  • Bootloader: Arduino Uno
  • Size: 53 x 19 x 12 mm (2.09 x 0.75 x 0.47")
  • Weight: 20g

Pinout:

Bluno Nano Pinout

  • Digital I/O Pins: 14 (6 provide PWM output)
  • Analog Input Pins: 8
  • DC Current per I/O Pin: 40 mA
  • LED_BUILTIN: Pin 13

Documents:

  • Wiki (Bluno Nano)
  • Bluno Nano Schematic
  • Bluno Basic Demo
  • Bluno Accessory Shield Demo
  • BLE-link Documents shared with Bluno
