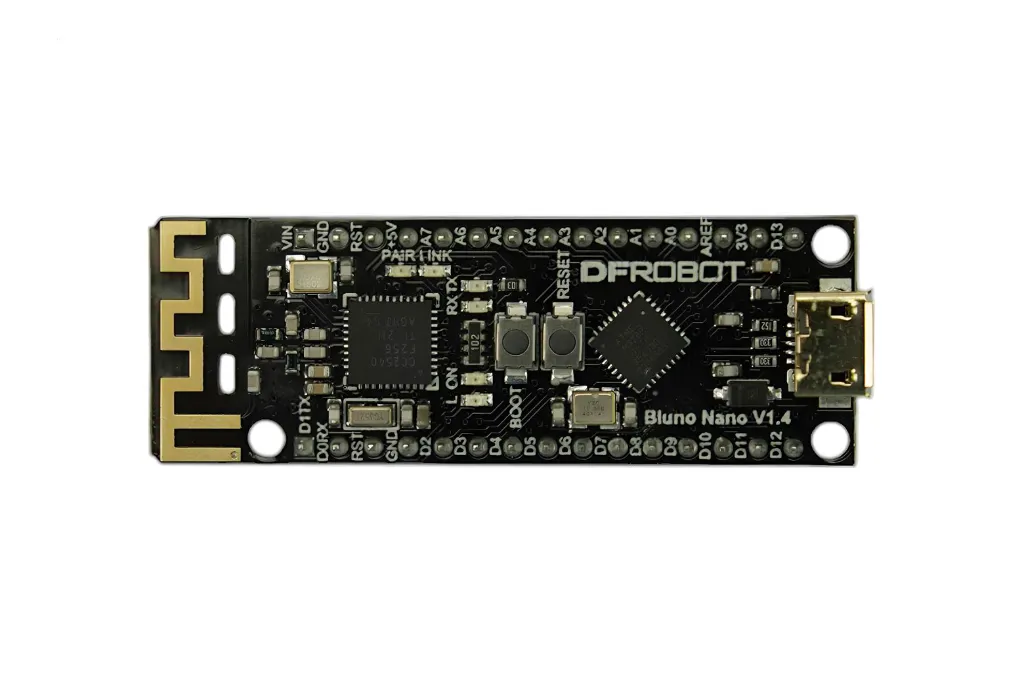

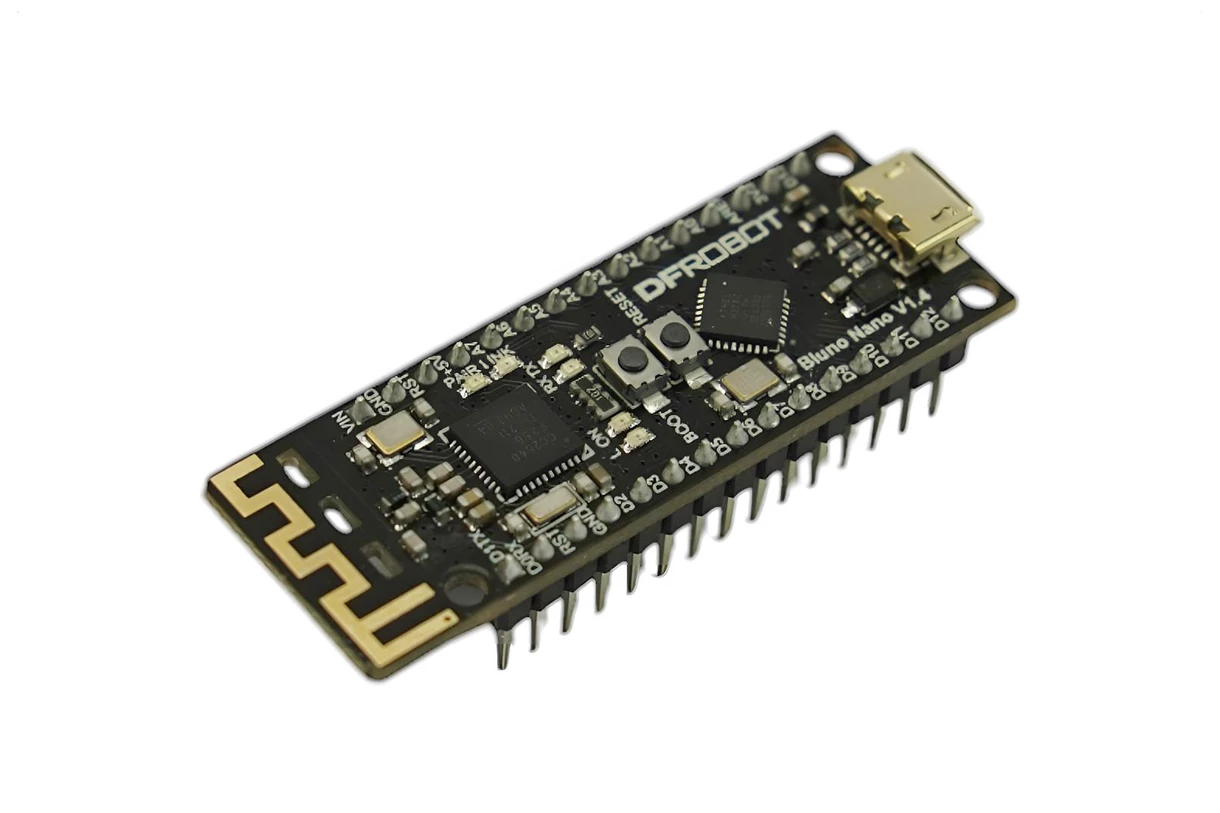

Arduino Bluno Nano - An Arduino Nano with Bluetooth 4.0 DFRobot - DFR0296

The Bluno Nano is a compact Arduino compatible development board designed for Bluetooth Low Energy applications where size and weight are important. It integrates a TI CC2540 Bluetooth 4.0 chip with an Arduino compatible ATmega328 microcontroller, allowing developers to create wireless smart devices with ease. With built in BLE functionality, the board supports wireless programming, enabling users to upload code without a USB cable. This makes it ideal for wearable devices, smart home systems, wireless sensors, and IoT projects. Devices such as smart watches, wireless cameras, health trackers, and automated garden systems can be built easily using the Bluno Nano.

Package Includes

  • 1 x Bluno Nano BLE Arduino Compatible Board


Arduino Nano Board
192.95 AED 192.95 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



The board also supports Bluetooth HID functionality and AT commands for configuring BLE settings. It provides transparent serial communication over Bluetooth, making it simple to send and receive data between the board and mobile devices. BLE firmware can also be upgraded easily, ensuring long term flexibility.

Bluno Nano is compatible with all Arduino Uno pins and Arduino Nano expansion shields, allowing existing Arduino projects to be converted into wireless solutions with minimal effort. In addition, open source mobile applications for Android and iOS are available, enabling users to control and monitor their projects directly from smartphones.

Features

  • Integrated Bluetooth Low Energy communication
  • Wireless programming via BLE
  • Supports Bluetooth HID functionality
  • AT command support for BLE configuration
  • Transparent serial communication over Bluetooth
  • Upgradeable BLE firmware
  • Compatible with Arduino Uno pin layout
  • Works with Arduino Nano compatible expansion shields
  • Open source mobile applications for Android and iOS
  • Compact and lightweight design for embedded applications

Specifications

  • Microcontroller: ATmega328
  • On board BLE chip: TI CC2540
  • Bootloader: Arduino Uno
  • Digital I O Pins: 14 pins (6 support PWM output)
  • Analog Input Pins: 8
  • Maximum DC Current per I O Pin: 40 mA
  • Built in LED Pin: 13
  • Communication: Bluetooth Low Energy and Serial
  • Power Supply: USB or external 7V to 12V DC
  • Board Dimensions: 53 mm x 19 mm x 12 mm
  • Weight: 20 g

Pinout

Bluno Nano follows the same pin layout as the Arduino Nano and Arduino Uno logic mapping. It provides 14 digital input output pins including 6 PWM capable pins and 8 analog input pins.

Bluno Nano Pinout

Applications

  • Wearable electronics
  • Smart home automation
  • Wireless sensor networks
  • Mobile controlled robots
  • Internet of Things devices
  • Remote monitoring systems
