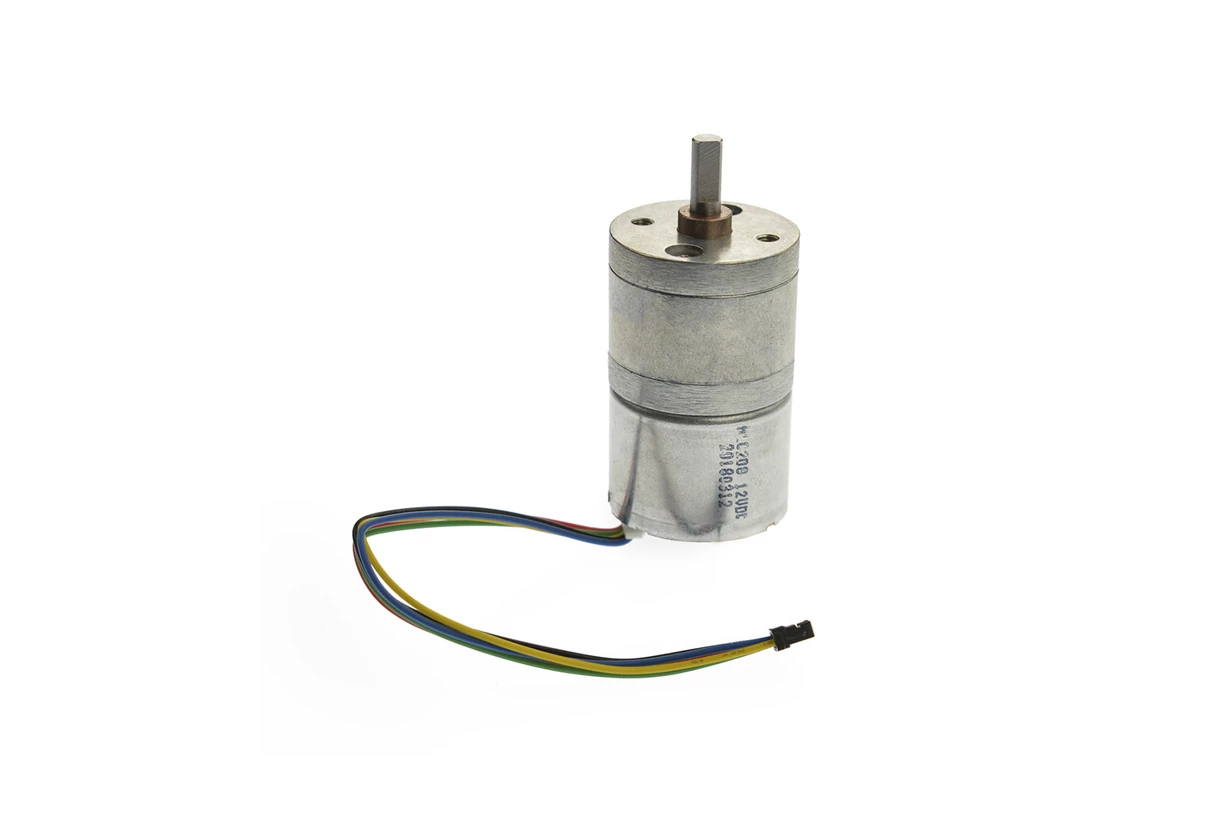

Brushless Motor DC with Encoder 12V 159RPM DFRobot - FIT0441

Brushless Motor DC with Encoder 12V 159RPM DFRobot - FIT0441

This Brushless DC (BLDC) motor is a compact and efficient motor designed with a built in driver that allows direct connection to microcontrollers such as Arduino without requiring an external motor driver. The integrated design simplifies wiring and reduces the number of control pins needed, making it ideal for robotics, mobile devices, and embedded system projects. The motor supports PWM speed control, direction control, and provides speed feedback output, enabling precise motion control and monitoring in various applications.

Package Includes

  • 1 x Brushless DC Motor with built in driver
  • Connection wires
Motor with Encoder
99.00 AED 99.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • Built in motor driver eliminates the need for an external motor driver.
  • Direct connection to Arduino and other microcontrollers.
  • Supports PWM speed control for accurate speed adjustment.
  • Directional control allows forward and reverse rotation.
  • Speed feedback output enables monitoring and closed loop control.
  • Efficient design reduces the number of control pins required.
  • Low MCU resource consumption suitable for embedded projects.
  • Compact and reliable for mobile and robotic applications.

Specifications

  • Operating Voltage: 12V
  • Stall Current: 0.7A
  • Motor Rated Speed: 7100 to 7300 rpm
  • Blocking Torque: 2.4 kg cm
  • Output Speed: Approximately 159 rpm
  • Reduction Ratio: 45:1
  • Signal Cycle Pulse Number: 6 pulses per cycle multiplied by 45 reduction ratio equals 270 pulses per cycle
  • Control Modes: PWM Speed Control and Direction Control

Pinout

FIT0441 Brushless DC Motor with Encoder 12V 159RPM Pins

Pin Name Description
1 PWM PWM speed control input 0 to 5V 20 to 30KHz
2 Power - Ground connection
3 Direction Rotation direction control High for forward Low for reverse
4 FG Speed feedback signal output requires pull up resistor
5 Power + 12V power input
