ESP32 Beetle Microcontroller DFRobot - DFR0575

ESP32 Beetle Microcontroller DFRobot - DFR0575

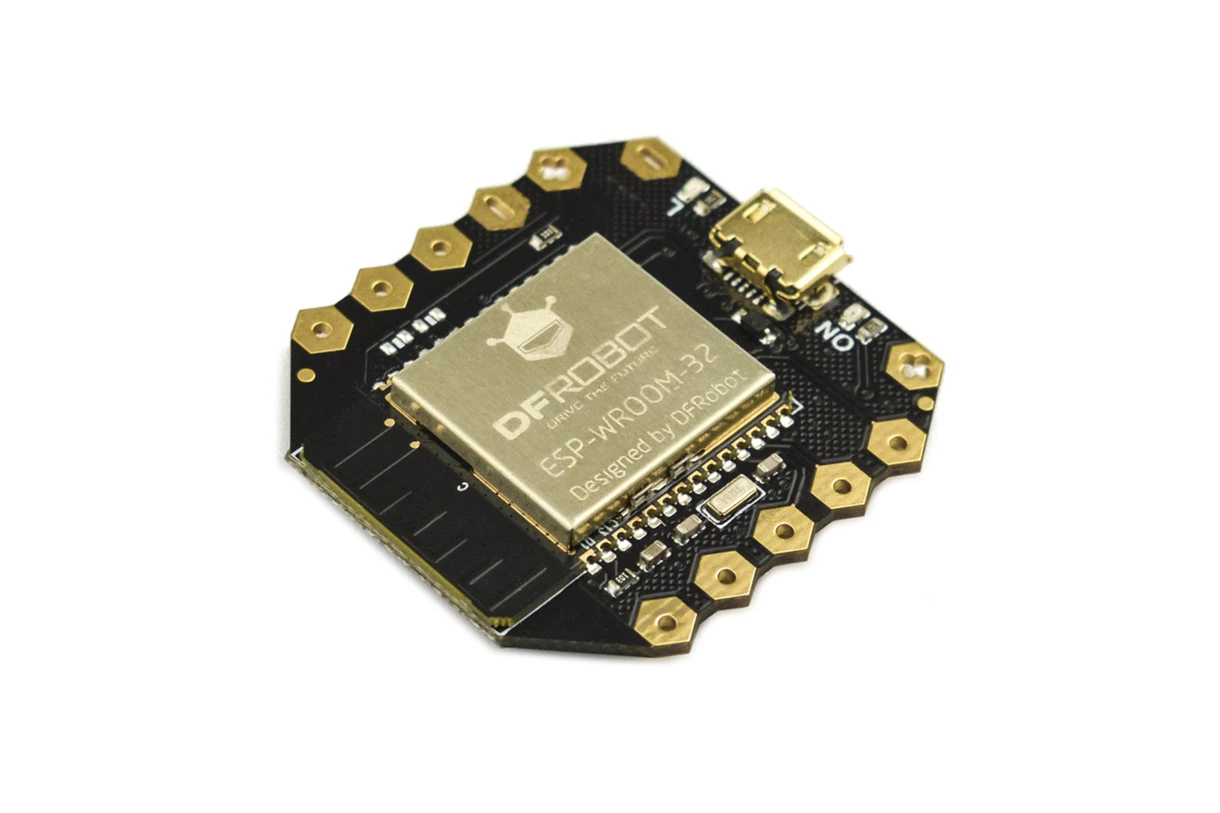

The Beetle-ESP32 Microcontroller is a compact development board designed for electronic engineering enthusiasts and DIY enthusiasts. With WiFi and Bluetooth capabilities, this condensed version of the FireBeetle-ESP32 measures just 1.38" x 1.34". Equipped with four analog ports, four digital ports, UART interfaces, and I2C interfaces, it offers a versatile solution for a wide range of projects. The perfect replacement for the FireBeetle-ESP32, it empowers users with enhanced functionality and flexibility.

Package Includes:

  • 1x Beetle-ESP32 Microcontroller Board
89.00 AED 89.00 AED Tax Included
89.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Features:

  • Effortless programming and debugging are enabled through the Micro USB interface.
  • Large-scale gold-plated I/O ports for easy wiring or sewing onto fabric.
  • Powered by a dual-core Tensilica LX6 CPU at 240 MHz.
  • 16 MB Flash memory and 520 KB SRAM.
  • Built-in Bluetooth 4.2 and WiFi modules.
  • Four analog ports and four digital ports with UART and I2C interfaces.
  • Convenient soldering panels and hole-shaped leads.
  • Labeled power leads: 3V3/VIN (+) and GND (-).
  • Compact size for space-saving designs.
  • Multiple digital interfaces: D2, D3, D4, D7 and analog A0–A3.
  • Includes 1 I2C interface and 1 serial port.



Principle of Work:

The Beetle microcontroller works like Arduino, running programs uploaded through the Arduino IDE. It interacts with sensors, motors, lights, and more using its I/O pins. Arduino’s open-source ecosystem provides tutorials, libraries, and examples suitable for both beginners and advanced users.

Benefits of Pins, WiFi, and Bluetooth:

  1. Pins: The four analog and four digital pins allow connection to sensors, actuators, UART, and I2C devices.
  2. WiFi: Enables IoT applications, cloud communication, remote monitoring, and internet connectivity.
  3. Bluetooth: Allows wireless communication with phones, tablets, and other modules for remote control or data transfer.

Applications:

  • Sensor Integration
  • Actuator Control
  • Internet Connectivity
  • Wireless Communication

Pinout of the Board:

VIN | Power Input
GND | Ground
A0 | Analog Input
A1 | Analog Input
A2 | Analog Input
A3 | Analog Input
D2 | Digital I/O
D3 | Digital I/O
D4 | Digital I/O
D7 | Digital I/O
SCL | I2C Clock
SDA | I2C Data
RX | Serial Receive
TX | Serial Transmit

Pin Functions:

  1. 8 Digital I/O Pins
  2. 4 Analog Pins
  3. PWM Output Pins
  4. UART: RX/TX
  5. SPI: MOSI/MISO
  6. I2C: SDA/SCL
  7. Power Pins: VCC, GND, VIN

Applications:

  1. Health and Security Systems
  2. Wireless Keyboard
  3. Industrial Automation
  4. Embedded Systems
  5. Student Projects
  6. Automatic Pill Dispenser
  7. Water Level Meter
  8. IoT Projects

Circuit:

No circuit needed; we will blink the onboard LED.

Connecting the Board:

  1. Connect Beetle BLE to PC via USB
  2. Download and install CH340 driver
  3. Open Arduino IDE
  4. Add ESP32 Boards Manager URL
  5. Select FireBeetle ESP32 board
  6. Select COM port
  7. Upload your program

Code:

// Blink LED on pin D9
void setup() {
  pinMode(D9, OUTPUT);
}

void loop() {
  digitalWrite(D9, HIGH);
  delay(1000);
  digitalWrite(D9, LOW);
  delay(1000);
}

Explanation:

  1. setup(): Runs once, sets D9 as output.
  2. loop(): Turns LED on/off every second.

Technical Details:

  • USB Voltage: 5.0V
  • VIN: 3.5–6.5V
  • CPU: Tensilica LX6 Dual-Core
  • Clock: 240 MHz
  • WiFi: 802.11 b/g/n
  • Bluetooth: v4.2
  • Crystal: 40 MHz + 32.768 kHz
  • Dimensions: 35×34 mm



Comparisons:

Beetle-ESP32: compact, easy wiring, Micro USB, gold-plated ports.
NodeMCU ESP32: larger board, more connectors, same wireless capabilities, multi-language support.
