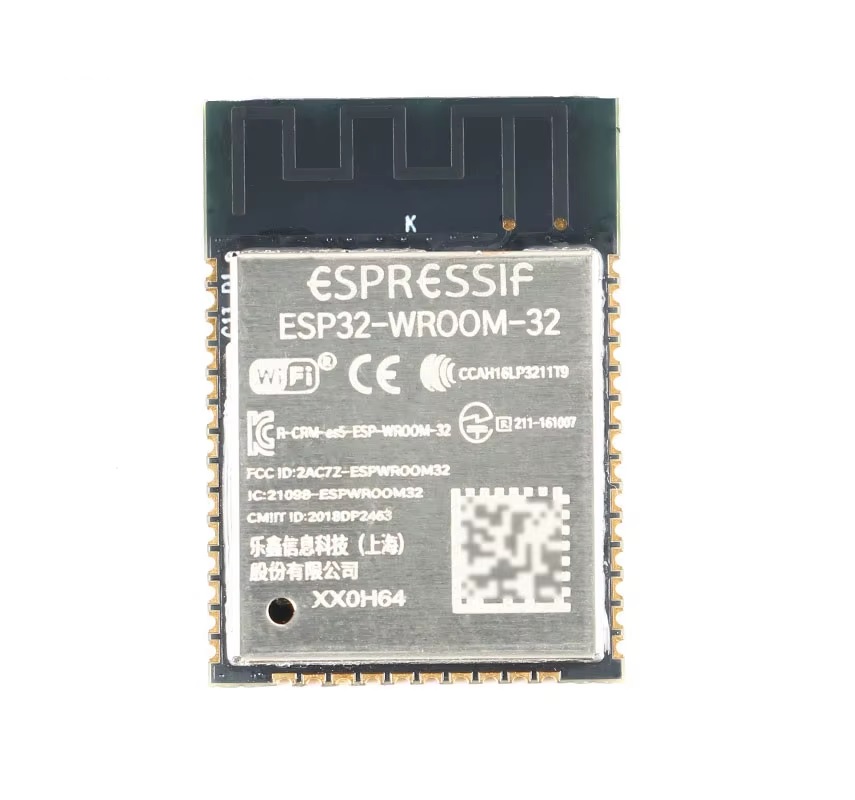

ESP32 WROOM Module
The ESP32 WROOM Module is a compact and versatile all-in-one module with built-in Wi-Fi and Bluetooth connectivity. It is ideal for Internet of Things (IoT) projects, wearables, and mobile devices. Its dual-core processor and rich set of I/O pins simplify development, while low power consumption makes it suitable for battery-powered projects. The module supports programming via Arduino IDE and Over-the-Air (OTA) firmware updates.
Package Includes
- 1 x ESP32 WROOM Module
Features
- Built-in Wi-Fi for wireless network connectivity
- Integrated Bluetooth for device communication
- Dual-core processor for enhanced processing capabilities
- Low power consumption with intelligent power management
- Rich set of I/O pins including analog, digital, GPIOs, UART, SPI, and I2C
- Secure communication with encryption and authentication protocols
- Programmable with Arduino IDE
- Supports Over-the-Air (OTA) updates
- Compact size for space-constrained projects
Specifications
- CPU: Xtensa Dual-Core 32-bit LX6, up to 600 DMIPS
- Memory: 448 KB ROM, 520 KB SRAM, 16 KB RTC SRAM, QSPI Flash/SRAM up to 4 x 16 MB
- Power supply: 2.2V to 3.6V
- Operating temperature: -40 C to +85 C
- Peripherals: 12-bit SAR ADC, 2 x 8-bit DAC, 10 touch sensors, temperature sensor, SPI, I2S, I2C, UART, SD/eMMC/SDIO host/slave, CAN, IR, PWM, LED PWM, Hall sensor
- Package size: 18mm x 25mm x 3mm
Features
- Built-in Wi-Fi for wireless network connectivity
- Integrated Bluetooth for device communication
- Dual-core processor for enhanced processing capabilities
- Low power consumption with intelligent power management
- Rich set of I/O pins including analog, digital, GPIOs, UART, SPI, and I2C
- Secure communication with encryption and authentication protocols
- Programmable with Arduino IDE
- Supports Over-the-Air (OTA) updates
- Compact size for space-constrained projects
Specifications
- CPU: Xtensa Dual-Core 32-bit LX6, up to 600 DMIPS
- Memory: 448 KB ROM, 520 KB SRAM, 16 KB RTC SRAM, QSPI Flash/SRAM up to 4 x 16 MB
- Power supply: 2.2V to 3.6V
- Operating temperature: -40 C to +85 C
- Peripherals: 12-bit SAR ADC, 2 x 8-bit DAC, 10 touch sensors, temperature sensor, SPI, I2S, I2C, UART, SD/eMMC/SDIO host/slave, CAN, IR, PWM, LED PWM, Hall sensor
- Package size: 18mm x 25mm x 3mm
