Robot - Self-balancing Car Keyestudio KS0193

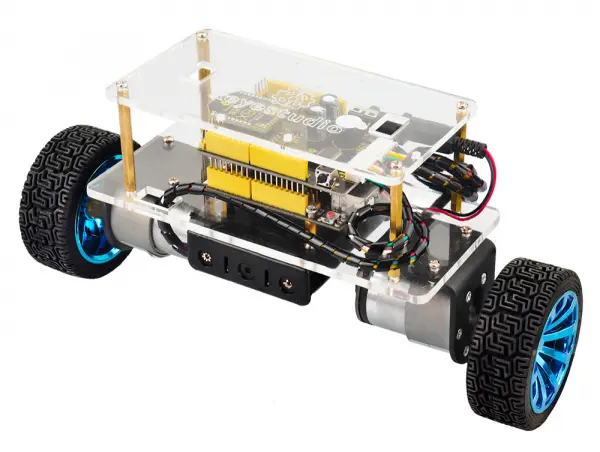

The Keyestudio balance car kit allows you to build a mini self-balancing car based on the Arduino development platform. The kit uses an UNO R3 as the core controller and a balance shield with a built-in MPU6050 sensor to detect the car body posture. Bluetooth connectivity enables wireless control using a mobile application.
Package Includes
| No | Component | Quantity |
| 1 | Dual-pass M3 45mm hex copper pillar | 4 |
| 2 | Dual-pass M3 10mm hex copper pillar | 4 |
| 3 | Black M4 6 cross screw | 2 |
| 4 | M3 6mm round head screw | 6 |
| 5 | M3 8mm round head screw | 10 |
| 6 | M3 8mm flat head cross screw | 4 |
| 7 | M3 12mm flat head cross screw | 2 |
| 8 | M3 12mm round head screw | 10 |
| 9 | M3 nickel plating nut | 12 |
| 10 | Acrylic plate pack of 2 pieces | 1 |
| 11 | Wheel 68mm diameter 26mm thickness | 2 |
| 12 | GM37 520 DC gear motor with encoder 12V 1 to 30 | 2 |
| 13 | 6mm hole 18mm copper hex coupler | 2 |
| 14 | Double head 6 pin PH2.0 30cm cable | 2 |
| 15 | Phillips screwdriver 3 by 40mm | 1 |
| 16 | Type L M2 hex wrench | 1 |
| 17 | 18650 three cell battery holder with cable | 1 |
| 18 | Keyestudio Balance Shield V3 | 1 |
The Bluetooth system is compatible with the Bluetooth XBee module for Android systems. The Bluetooth application supports key control mode and gravity control mode. Users can also adjust the balance angle and PID parameters through the application. All required assembly parts are included, along with detailed instructions for installation and debugging.
Working Principle
The self-balancing car maintains balance through dynamic balance control. The movement of the wheels driven by two DC motors keeps the car upright. The control system is divided into three main parts.
- Balance Control: Keeps the car upright by controlling wheel rotation.
- Speed Control: Controls movement speed by adjusting the car inclination through motor speed.
- Direction Control: Controls steering by adjusting the speed difference between the two motors.
Features
- Motor Parameters:
- Working voltage: DC 9 to 12V
- Motor drive chip: TB6612FNG
- Body posture detection: MPU6050
- Power control switch
- Bluetooth control switch for serial communication
- Bluetooth Connectivity:
- Compatible with Bluetooth XBee module for Android
- Control using key mode or gravity mode
- Adjust balance angle and PID parameters
- Assembly and Debugging:
- All components included
- Detailed installation and debugging instructions
Specifications
- Motor drive chip: TB6612FNG
- Body posture detection: MPU6050
- Working voltage: DC 9 to 12V
- Control modes: Key control and gravity control via Bluetooth app
- Adjustable parameters: Balance angle and PID parameters
Pinout
| Pin | Function |
|---|---|
| G | Ground |
| V | Voltage |
| S | Signal |
| TX | Serial transmit |
| RX | Serial receive |
| SCL | I2C clock |
| SDA | I2C data |
| MOSI | SPI master out slave in |
| MISO | SPI master in slave out |
| SCK | SPI clock |
