This module can also be integrated into custom electronic circuits to test the discharge characteristics of rechargeable batteries. It allows users to compare different power supplies and batteries to select reliable and cost effective options.
Features
- Selectable load current using a built in switch
- 1A mode indicated by a green LED
- 2A mode indicated by a red LED
- Supports 5 watts at 1 ampere load
- Supports 10 watts at 2 ampere load
- USB interface for quick and simple connection
- Compact and portable design
Specifications
- Rated power 5 to 10 watts
- Load type Fixed resistor
- Dimensions 7.3 cm x 1.8 cm x 1.0 cm
How to Use

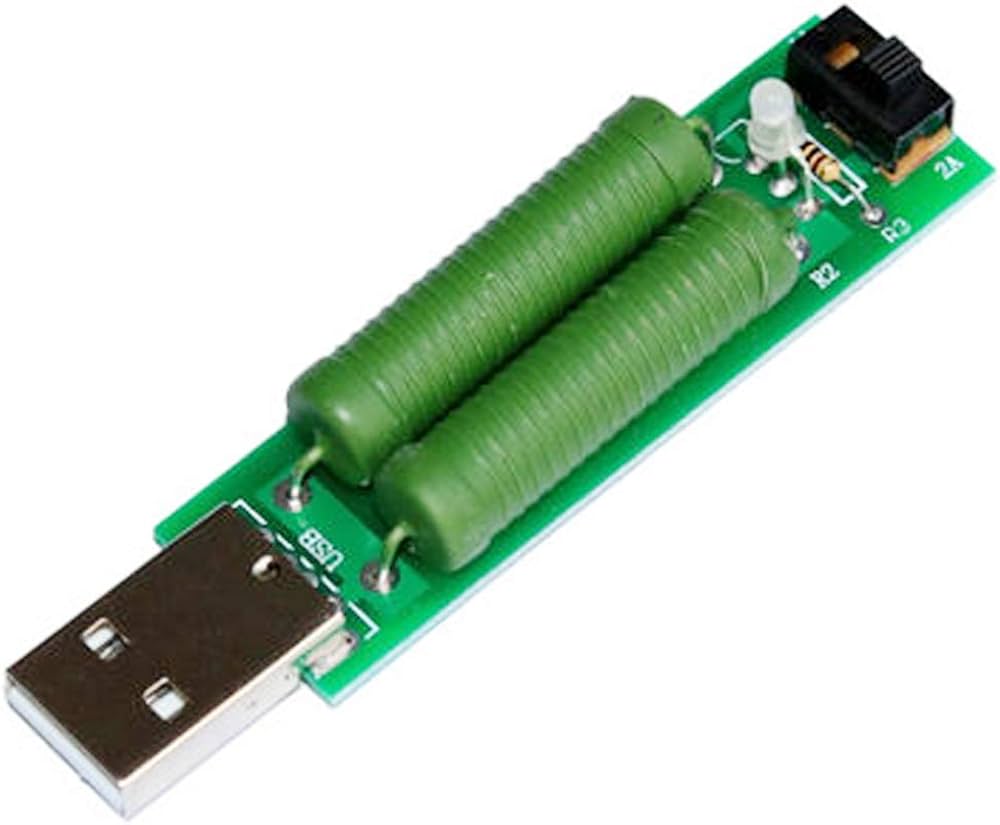

Connect the USB power supply load tester to a USB power source. Use the selector switch to choose the desired load current of 1 ampere or 2 ampere. The LED indicator will show green when 1 ampere is selected and red when 2 ampere is selected. To analyze performance, measure the voltage and current output using an external measuring device. The tester can also be used in custom circuits to evaluate rechargeable battery discharge behavior.
