Bluetooth nRF52840 MDK USB Dongle

Bluetooth nRF52840 MDK USB Dongle

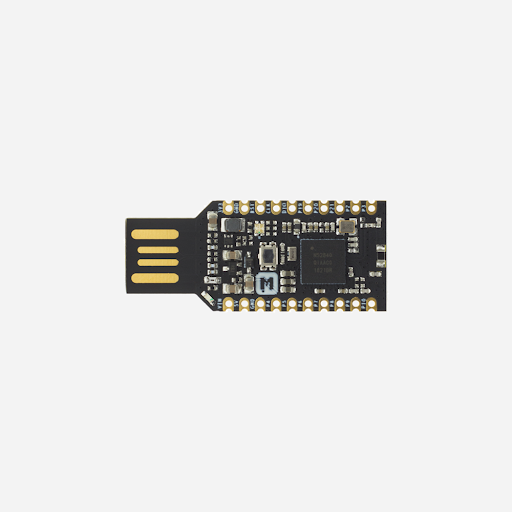

The nRF52840 Micro Dev Kit USB Dongle is a compact and cost-effective development platform built around the powerful nRF52840 multi-protocol system on chip. Its USB dongle form factor allows direct connection to a PC or any USB-enabled device, making development fast and convenient. Despite its small size, the dongle integrates essential hardware features including a programmable user button, a multi-color RGB LED, and support for up to twelve GPIO pins. An onboard 2.4 GHz chip antenna ensures reliable wireless communication in a wide range of environments.



Package Includes:

1 x Bluetooth nRF52840 MDK USB Dongle

110.00 AED 110.00 AED Tax Included
110.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Bluetooth with nRF52840
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Low-cost USB dongle design
  • Supports Bluetooth Low Energy and Bluetooth Mesh
  • Supports Thread, Zigbee, IEEE 802.15.4, ANT, and 2.4 GHz
  • Pre-built OpenThread NCP firmware support
  • OpenThread Border Router compatibility
  • Thread network sniffer support using Wireshark
  • User programmable button
  • Onboard RGB LED
  • Integrated 2.4 GHz chip antenna

Specifications

  • SoC Nordic nRF52840
  • Processor ARM Cortex M4F optimized for ultra low power operation
  • Wireless Bluetooth 5, Bluetooth Mesh, Thread, IEEE 802.15.4, ANT, 2.4 GHz
  • Flash memory 1 MB
  • RAM 256 KB
  • On chip NFC A tag
  • USB 2.0 full speed controller
  • ARM TrustZone Cryptocell 310 security subsystem
  • Up to 12 GPIOs available via headers
  • User programmable button and RGB LED
  • 3.3V regulator with up to 1A peak current
  • VBUS and VIN power path management

Physical Details

  • USB dongle form factor
  • Breadboard-friendly dual 10-pin headers
  • Dimensions 42 mm x 18 mm x 4 mm
  • Weigh approximately 10 g
  • Battery not included

Applications

  • Bluetooth Low Energy development
  • Thread and Zigbee networking
  • OpenThread Border Router and NCP designs
  • Wireless protocol testing and sniffing
  • USB-connected IoT devices
  • Educational and prototyping projects
