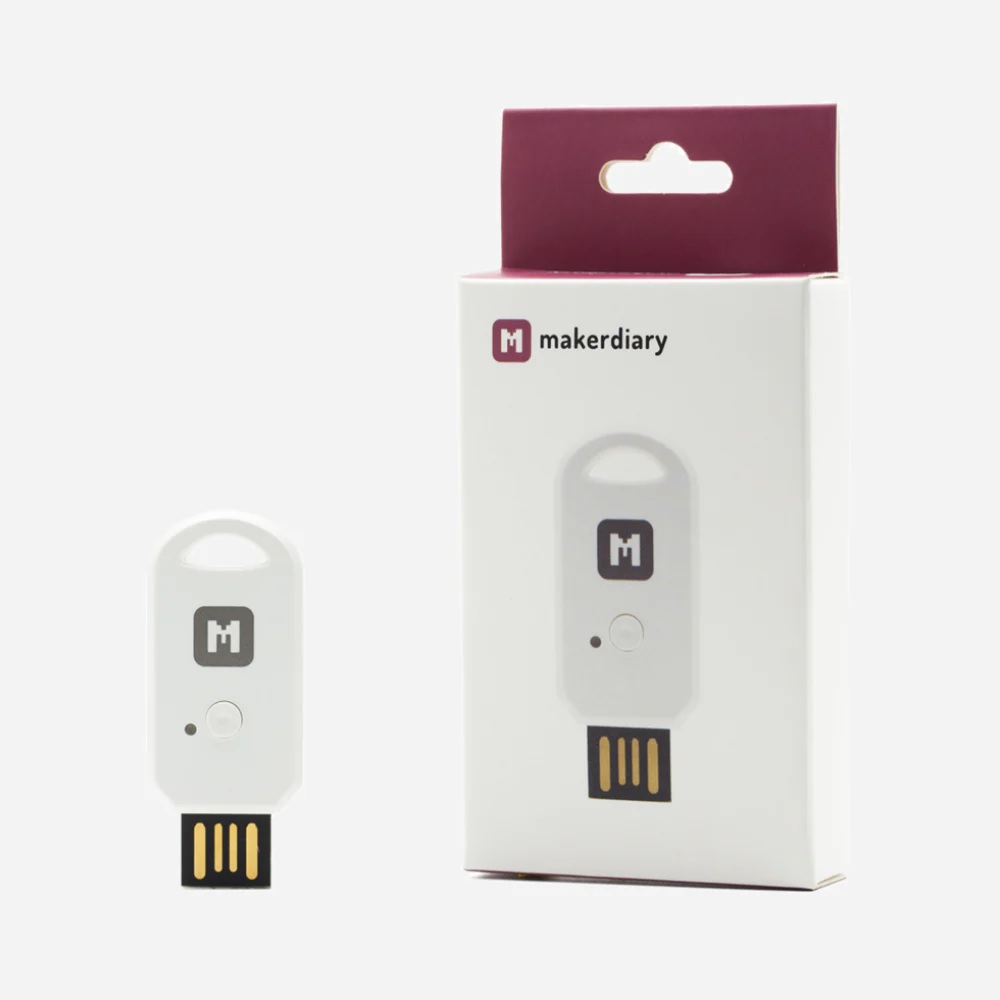

Bluetooth nRF52840 MDK USB Dongle w/Case

Bluetooth nRF52840 MDK USB Dongle w/Case

The nRF52840 MDK USB Dongle is a compact and budget-friendly development platform built around the powerful nRF52840 multiprotocol system on chip. Its USB dongle design allows instant connection to a PC or USB-enabled device, making it ideal for rapid development and testing. This dongle delivers full multiprotocol concurrency, supporting a wide range of wireless technologies including Bluetooth 5, Bluetooth Mesh, Thread, Zigbee, IEEE 802.15.4, ANT, and proprietary 2.4 GHz protocols. It is designed for developers who need flexibility and performance in a small and efficient form factor.

Package Includes

  • 1 nRF52840 MDK USB Dongle

177.45 AED 177.45 AED Tax Included
177.45 AED Tax Included

Not Available For Sale

This combination does not exist.

Bluetooth with nRF52840
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Features

  • Low-cost USB dongle design
  • Supports Bluetooth 5 and Bluetooth Mesh
  • Supports Thread, Zigbee, IEEE 802.15.4, ANT, and 2.4 GHz proprietary stacks
  • USB-enabled bootloader preinstalled
  • OpenThread NCP firmware included
  • Programming via nRF Connect for Desktop or nRFUtil
  • OpenThread Border Router support
  • Thread Network Sniffer supports using Wireshark
  • Thread topology monitoring support

Specifications

  • SoC Nordic nRF52840
  • Processor ARM Cortex M4F optimized for ultra low power operation
  • Wireless Bluetooth 5, Bluetooth Mesh, Thread, IEEE 802.15.4, ANT, 2.4 GHz
  • Flash memory 1 MB
  • RAM 256 KB
  • USB 2.0 full speed controller
  • ARM TrustZone Cryptocell 310 security subsystem
  • One user-programmable button
  • One user programmable RGB LED
  • Integrated 2.4 GHz chip antenna

Physical Details

  • USB dongle form factor
  • Product dimensions 50.8 mm x 21.1 mm x 7.6 mm
  • Product weight is approximately 6 g

Applications

  • Bluetooth Low Energy and Bluetooth Mesh development
  • Thread and Zigbee networking projects
  • OpenThread Border Router implementations
  • Thread network sniffing and debugging
  • USB-connected IoT gateways
  • Wireless security key and authentication projects
