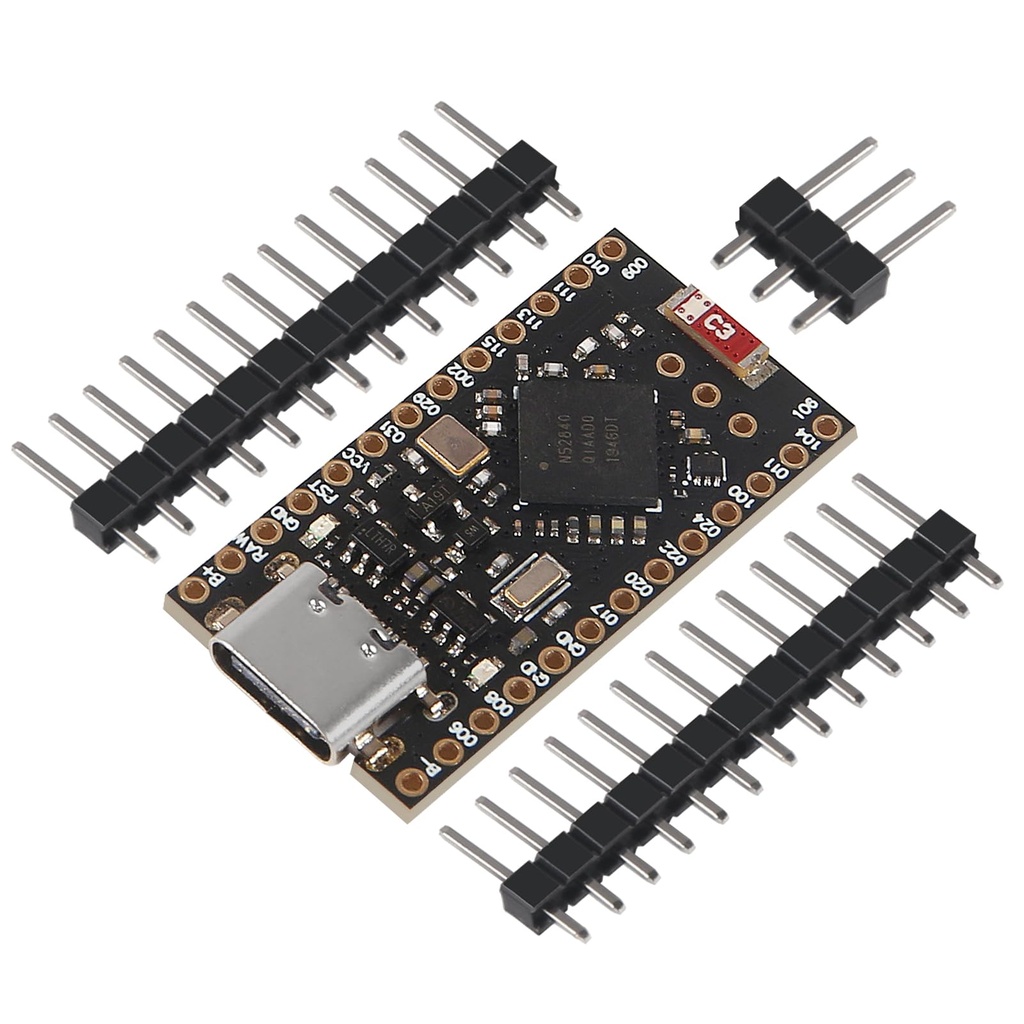

Bluetooth nRF52840 Micro Development Kit
The nRF52840-MDK is a versatile and user-friendly IoT hardware platform designed to support multiple wireless technologies, including Bluetooth 5, Bluetooth Mesh, Thread, IEEE 802.15.4, ANT, and 2.4 GHz proprietary applications. It is powered by the nRF52840 System-on-Chip (SoC) and includes an embedded debugger known as DAPLink.
Package Includes:
1 x Bluetooth nRF52840 Micro Development Kit
DAPLink provides USB drag-and-drop programming, a virtual COM port for communication, and a CMSIS-DAP interface for debugging. The kit also includes a Microchip USB 2.0 Hi-Speed hub with two downstream ports: one for DAPLink and one for the nRF52840 USB device controller. Additional features include ultra-low-power 64-Mb QSPI FLASH memory, a programmable user button, an RGB LED, and up to 24 GPIOs. Antenna selection is also available for flexible custom applications.
Features
- ARM Cortex-M4F processor optimised for ultra-low power performance
- Supports Bluetooth 5, Bluetooth Mesh, Thread, IEEE 802.15.4, ANT, and 2.4 GHz proprietary
- Integrated NFC-A tag for near field communication
- USB 2.0 full speed controller
- ARM TrustZone Cryptocell 310 security subsystem
- 1 MB FLASH and 256 kB RAM
- DAPLink support for MSC drag-and-drop, CDC virtual COM port, and CMSIS-DAP debug channel
- Microchip 2-Port USB 2.0 Hi-Speed Hub Controller
- External ultra-low power 64-Mb QSPI FLASH memory
- Up to 24 GPIOs accessible through headers
- Boot/Reset Button
- Programmable user button and RGB LED
- On-board 2.4 GHz chip antenna with U.FL connector for external antennas
- 3.3V regulator with 1A peak current output
- VBUS and VIN power-path management
- Reversible USB 3.1 Type-C connector
- Breadboard-friendly design with dual 18-pin headers
- Dimensions: 50 mm x 23 mm x 13 mm with headers soldered
- Weight: 36 g
Supported Software and Frameworks
- Nordic SDKs, including nRF5 SDK and nRF5 SDK for Mesh
- OpenThread and ZigBee 3.0
- Mbed OS 5, Zephyr, and Mynewt
- Web Bluetooth, iBeacon, and Eddystone support
Applications
- IoT and wireless connectivity development
- Bluetooth Mesh and Thread network devices
- Wireless sensor nodes and gateways
- Low-power embedded devices
- Prototyping and educational projects
Pinout:
