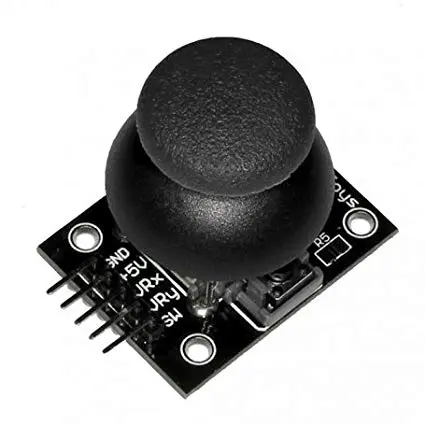

JoyStick Breakout Module Controller
The KY-023 Analog Joystick Module is a versatile input device designed for use with microcontrollers such as Arduino, Raspberry Pi, and other embedded systems. It features dual-axis movement detection, functioning like two potentiometers that provide independent analog voltage outputs for both the horizontal (X-axis) and vertical (Y-axis) directions. Additionally, the module includes a built-in digital "Select" switch, which can be activated by pressing the joystick.
This compact and easy-to-use module is ideal for various applications, including retro gaming consoles, robot navigation systems, remote-controlled vehicles, and other interactive projects. With its smooth and precise analog response, wide compatibility, and durable build, it is well-suited for hobbyists and professionals alike.
Package Includes:
- 1 x Analog Joystick Module (KY-023)
Features:
- Dual-Axis Control: Functions like two potentiometers, providing independent analog signals for X-axis and Y-axis movements.
- Built-In Select Switch: Includes a digital button activated when the joystick is pressed, useful for extra input functionality.
- High Sensitivity and Precision: Smooth and reliable movements with internal resistance ranging from 4.4kΩ to 10kΩ.
- Compact and Lightweight: Dimensions of 34 x 26 x 32 mm make it portable and easy to embed in small projects.
- Input Voltage: Compatible with 3.3V and 5V systems for wide microcontroller support.
- Wide Application: Ideal for use in gaming controllers, robot interfaces, RC cars, and custom interactive DIY projects.
Specifications:
- Resistance Range: 4.4kΩ to 10kΩ
- Input Voltage: 3.3V to 5V DC
- Color: Black
- Dimensions: 34.0 mm x 26.0 mm x 32.0 mm (L × W × H)
Pinout of the Module:
| Pin | Name | Description | Typical Voltage Range | Function |
|---|---|---|---|---|
| 1 | GND | Ground connection for the module | 0V | Common reference point |
| 2 | 5V | Power supply input | 5V | Supplies power to the joystick |
| 3 | VRX | X-axis analog output | 0V to 5V | Varies with horizontal movement |
| 4 | VRY | Y-axis analog output | 0V to 5V | Varies with vertical movement |
| 5 | SW | Digital switch output | 0V (pressed) / 5V (released) | Detects joystick button press |
Video:
Watch a tutorial on how to use this module:
Search KY-023 Joystick Arduino on YouTube
