Keypad 4x4 Matrix +4 Separate keyboard + 8 Separate LED Module

The 4×4 Matrix Keypad Module with 8 LEDs is a compact human-machine interface (HMI) module designed for Arduino, ESP32, STM32, Raspberry Pi, and other microcontroller platforms. It combines a 16-key matrix keypad, four independent push buttons, and eight user-programmable LED indicators on a single PCB, making it ideal for embedded systems, control panels, access control, and user input applications. The module operates from a 3.2V to 5V power supply and features standard GPIO interfaces for easy integration with development boards. Mounting holes and included standoffs allow secure installation inside enclosures or prototype systems. The matrix keypad minimizes GPIO usage, while the additional buttons and LEDs provide expanded functionality for custom user interfaces.

Package Includes

  • 1 × 4×4 Matrix Keypad Module
  • 4 × Independent Push Buttons (Integrated)
  • 8 × LED Indicators (Integrated)
  • 4 × Mounting Standoffs
  • 4 × Mounting Screws
Keypad Module
30.45 AED 30.45 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days





Features

  • Integrated 4×4 matrix keypad with 16 tactile push buttons.
  • Four independent push buttons for additional user inputs.
  • Eight programmable LED indicators for status display.
  • Operates from 3.2V to 5V DC.
  • Matrix design reduces the number of required GPIO pins.
  • Compatible with Arduino, ESP32, STM32, Raspberry Pi, AVR, PIC and other microcontrollers.
  • Compact PCB with mounting holes for secure installation.
  • Ideal for control panels, embedded systems and HMI applications.
  • Easy to interface using digital GPIO pins.
  • Includes mounting hardware for quick assembly.

Specifications

Product Type Matrix Keypad and LED Interface Module
Matrix Keys 16 (4 × 4 Matrix)
Independent Buttons 4
LED Indicators 8
Operating Voltage 3.2V – 5V DC
Interface Digital GPIO
Board Size 50 × 60 mm
Mounting Hole Spacing 55 × 45 mm
Compatible Platforms Arduino, ESP32, ESP8266, STM32, Raspberry Pi, AVR, PIC and compatible controllers

Applications

  • Embedded user interfaces (HMI)
  • Industrial control panels
  • Access control systems
  • Password and PIN entry terminals
  • Arduino and ESP32 learning projects
  • Robotics control panels
  • Home automation controllers
  • Electronic instrumentation
  • DIY electronics projects
  • Rapid prototyping

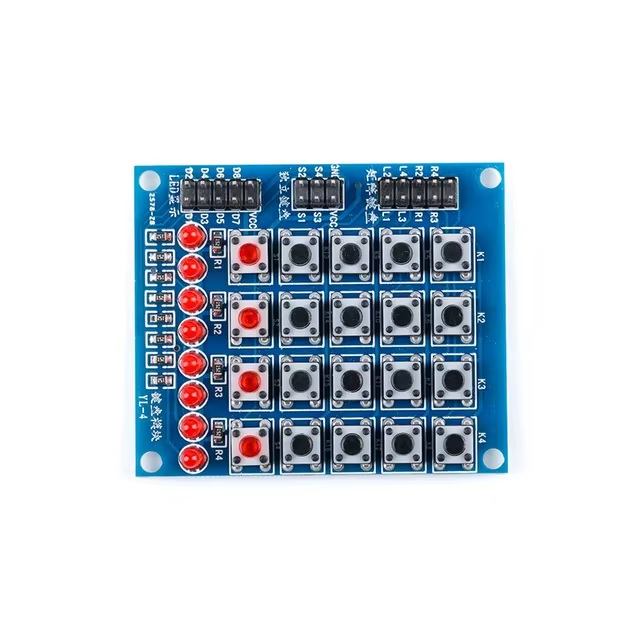

4x4 Matrix Keypad Module with LEDs

4x4 Matrix Keypad Module Rear View
