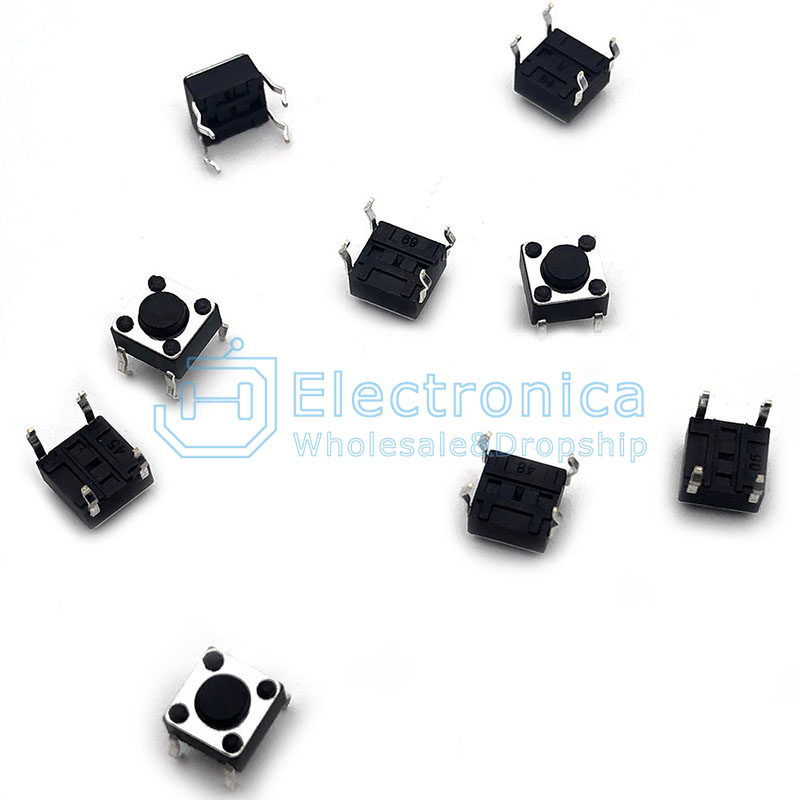

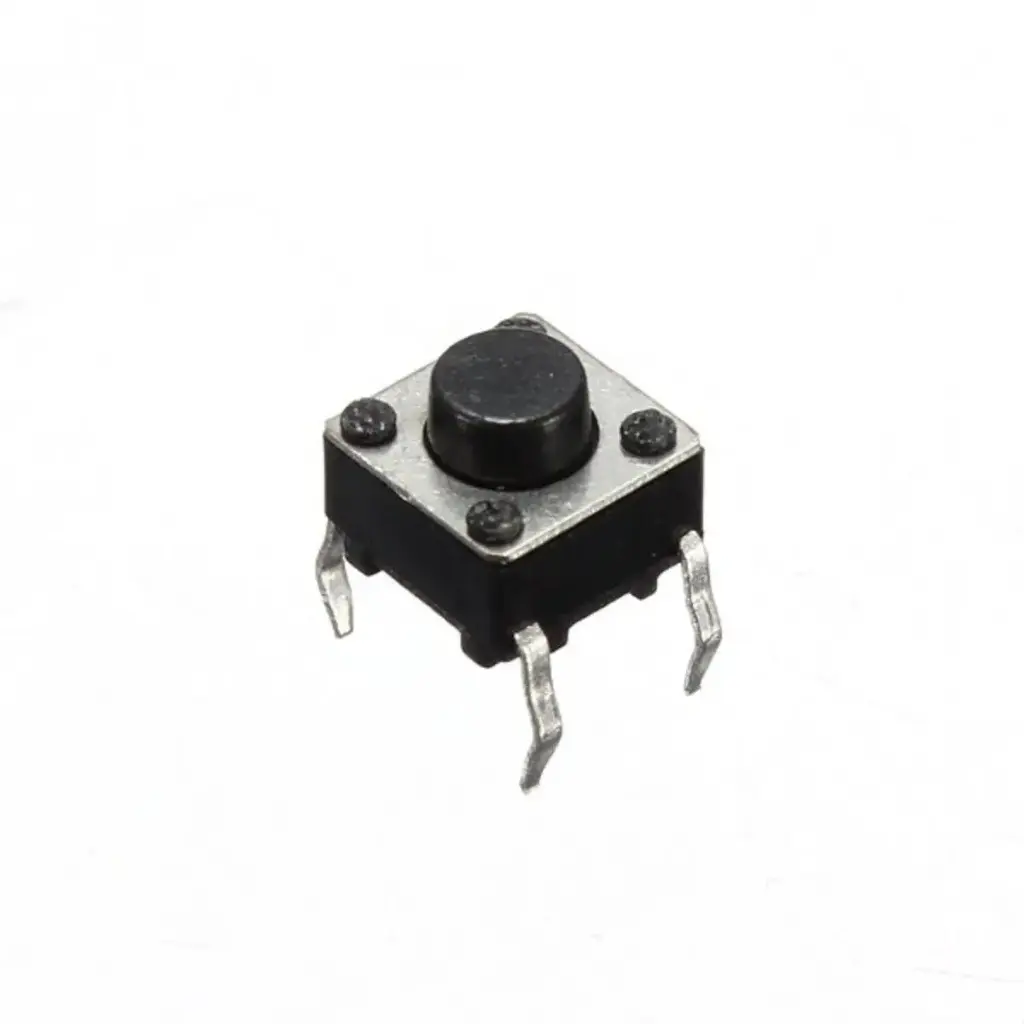

Push Button Tactile Switch 6x6x5mm

Push Button Tactile Switch 6x6x5mm

The 6x6x5mm tactile push button is a compact, momentary switch commonly used in electronics and prototyping. It provides a reliable interface for user input in a wide range of applications, including DIY Arduino projects, embedded systems, and control panels.

Package Includes:

  • 1 x Push Button Tactile Switch 6x6x5mm

1.58 AED 1.58 AED Tax Included
1.58 AED Tax Included

Not Available For Sale

This combination does not exist.

Push Button
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Compact 6x6x5mm size ideal for tight spaces
  • Momentary push action – normally open (NO)
  • Easy to mount on breadboards or PCBs
  • High durability and tactile feedback
  • Suitable for both hobbyist and industrial use

Specifications:

  • Type: Tactile push button (momentary)
  • Size: 6mm x 6mm x 5mm (L × W × H)
  • Mounting Type: Through-hole (THT)
  • Rated Voltage: DC 12V
  • Rated Current: 50mA
  • Contact Resistance: ≤ 100 mΩ
  • Insulation Resistance: ≥ 100 MΩ
  • Operating Force: 180–260gf
  • Mechanical Life: ≥ 100,000 cycles

Applications:

  • Arduino and microcontroller-based projects
  • Control panels and user interfaces
  • Prototyping boards and breadboard circuits
  • Consumer electronics and embedded devices
