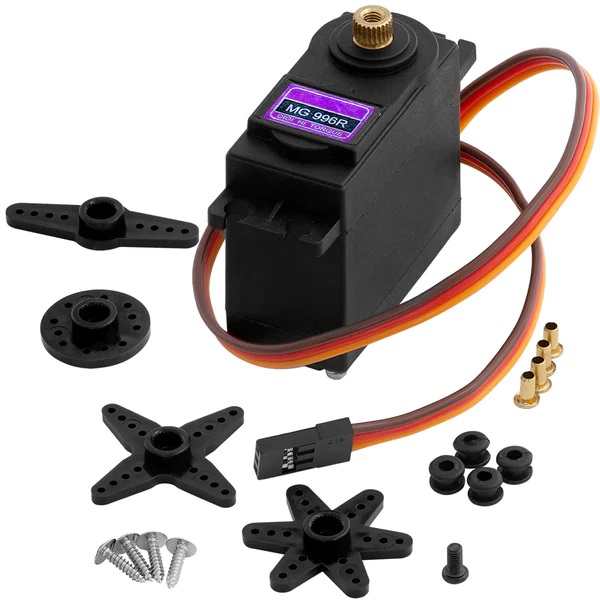

Servo Metal Gear MG996R

Servo Metal Gear MG996R

The High-Torque MG996R Digital Servo is a powerful servo motor with metal gearing, delivering high torque in a compact package. It features upgraded shock-proofing, metal gears, double ball bearings, and a stable design. With dimensions of 40mm x 19mm x 43mm and a weight of 55g, this servo operates efficiently with an operating speed of 0.17sec/60° at 4.8V and 0.13sec/60° at 6.0V, offering stall torque of 13 kg-cm at 4.8V and 15 kg-cm at 6V. It operates within a voltage range of 4.8 to 7.2V and comes with heavy-duty connector wires of 300mm length. The servo is compatible with various receivers and is suitable for applications in trucks, boats, racing cars, and airplanes.

Package Includes:

  • 1 x MG996R Metal Gear Servo
  • Selection of servo arms and mounting screws

25.00 AED 25.00 AED Tax Included
25.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Metal High Torque Servo
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Metal Gearing for High Torque: Ensures exceptional torque output, ideal for applications requiring robust power.
  • Upgraded Shock-Proofing: Enhanced shock-proofing capabilities safeguard against external impacts or vibrations.
  • Double Ball Bearing Design: Delivers smooth and stable operation, minimizing friction and wear.
  • Stable Operation: Advanced internal mechanisms ensure consistent performance.
  • Compact Size and Lightweight: Easy to integrate into various projects.
  • Receiver Compatibility: Works with Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum, Hitec, and more.

Specifications:

  • Operating Speed:
    • 0.17 sec/60° at 4.8V
    • 0.13 sec/60° at 6.0V
  • Stall Torque:
    • 13 kg-cm at 4.8V
    • 15 kg-cm at 6.0V
  • Voltage Range: 4.8V to 7.2V
  • Connector Wire Length: 300mm
  • Dimensions: 40mm x 19mm x 43mm
  • Weight: 55g



Wiring:

  1. Connect the servo's power wire (Red) to 5V.
  2. Connect the ground wire (Black or Brown) to GND.
  3. Connect the control wire (Yellow or Orange) to pin 9 on Arduino.

Example Arduino Code:

#include <Servo.h>

Servo myservo;  // create servo object
int pos = 0;    // variable to store servo position

void setup() {
  myservo.attach(9);  // attach servo on pin 9
}

void loop() {
  for (pos = 0; pos <= 180; pos += 1) {
    myservo.write(pos);    // move to position
    delay(15);             // wait for servo to reach position
  }
  for (pos = 180; pos >= 0; pos -= 1) {
    myservo.write(pos);    // move back
    delay(15);
  }
}
